Inline Checkweigher for Cans and Bottles SC-C
group nameCheckweigher
-
Min Order1 piece
brand nameSameGram
modelSC-C
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeSat, 06 Dec 2025 00:06:52 GMT
Paramtents
Weighting section size Non-standard customization
Belt speed 5-90m/min
Applicable product size Non-standard customization
Rejection mode Customized
Storage formula 100 types
Packging & Delivery
Min Order1 piece
Briefing
SC-C is a can checkweigher designed for cans,jars and bottles,which is a reliable online checkweigher for production line.
Detailed
Detail Information
Inline Checkweigher for Cans and Bottles SC-C
Introduction

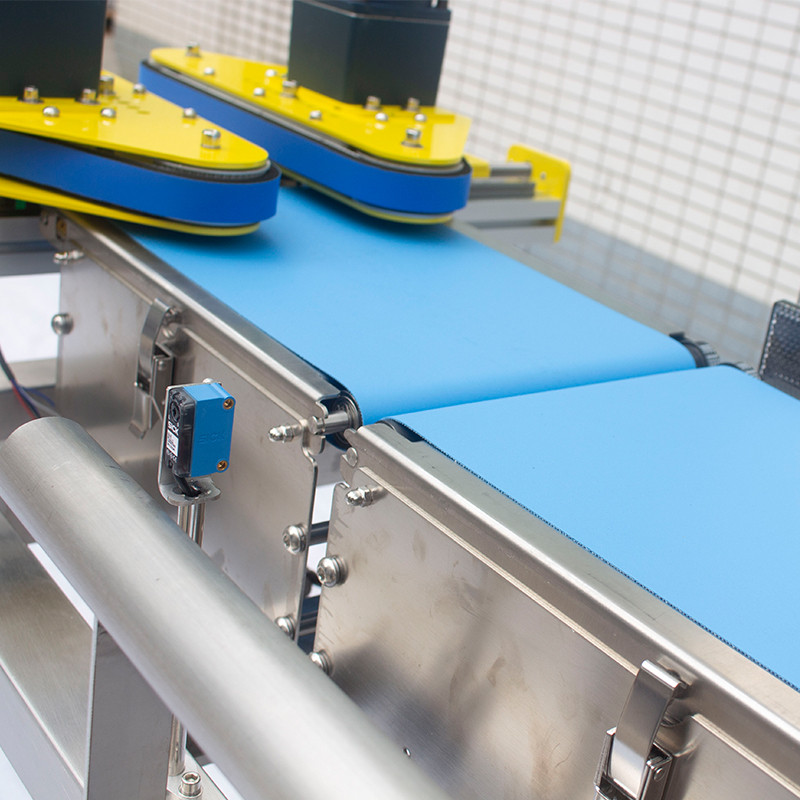

The SC-C is a high-precision inline checkweigher designed for high-speed production lines handling cans, bottles, and jars. Equipped with adjustable bottle clamps, it ensures stable product transport, preventing tipping or damage during conveyance.
The system automatically spaces products for real-time weight inspection, accurately identifying underfilled or overweight items. With fully integrated reject mechanisms, this automatic checkweigher helps maintain consistent quality and compliance.
Compact and robust, the SC-C functions as both a can checkweigher and bottle checkweigher, easily integrating into existing lines to improve efficiency while supporting reliable checkweighing system operations for fast-moving containers.
Inline Checkweigher for Cans and Bottles SC-C Features
Inline Checkweigher for Cans and Bottles SC-C Technical Parameters
| Product model | SC-C | |
| Weighting range | Non-standard customization | |
Weighting section size | Non-standard customization | |
Belt speed | 5-90m/min | |
Air pressure interface | Φ8mm | |
| Case material | 304 stainless steel | |
Conveying direction | Facing the machine, left in and right out | |
Display division | 0.1g | |
| Weighting accuracy | Non-standard customization | |
| Applicable product size | Non-standard customization | |
Storage formula | 100 types | |
| Power supply | AC220V±10% | |
| Air source | 0.5-0.8MPa | |
Data transmission | USB data export | |
Alarm mode | Sound and light alarm and automatic rejection | |

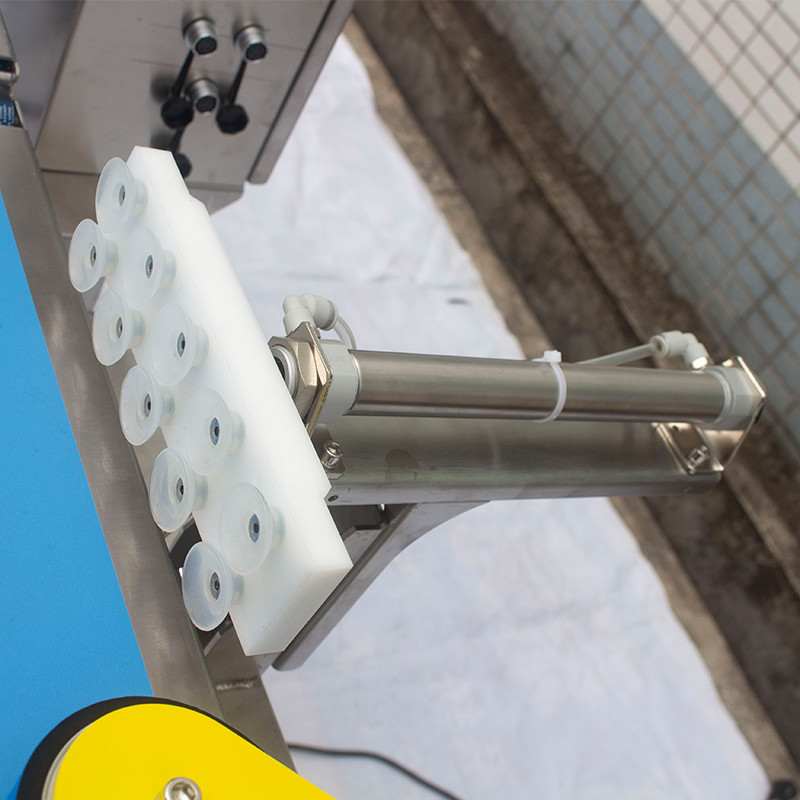

Rejection mode | Air blowing, push rod, swing arm, drop, up and down flip, etc. (customizable) | |
| Optional function | Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling | |
Operation screen | 10-inch Weiluntong color touch screen | |
Control system | Samegram online weighing control system V1.0.5 | |
| Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor | |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
Inline Checkweigher for Cans and Bottles SC-C Applications
