Multi-lane Checkweigher for Small Packaged Products SCP6
group nameCheckweigher
-
Min Order1 piece
brand nameSameGram
modelSCP6
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeTue, 24 Mar 2026 01:32:12 GMT
Paramtents
Weighing Range 0.1-100g
Collect conveying width 200mm
Weighing speed 40-50 cuts/minute
Weighting accuracy ±0.02-0.05g
Number of columns 4-20 Lanes Customized
Product output table height 270-750mm
Packging & Delivery
Min Order1 piece
Briefing
SCP6 is a Multi-lane checkweigher system for small packages. it supports multi-lane control, fast data export and compliances.
Detailed
Detail Information

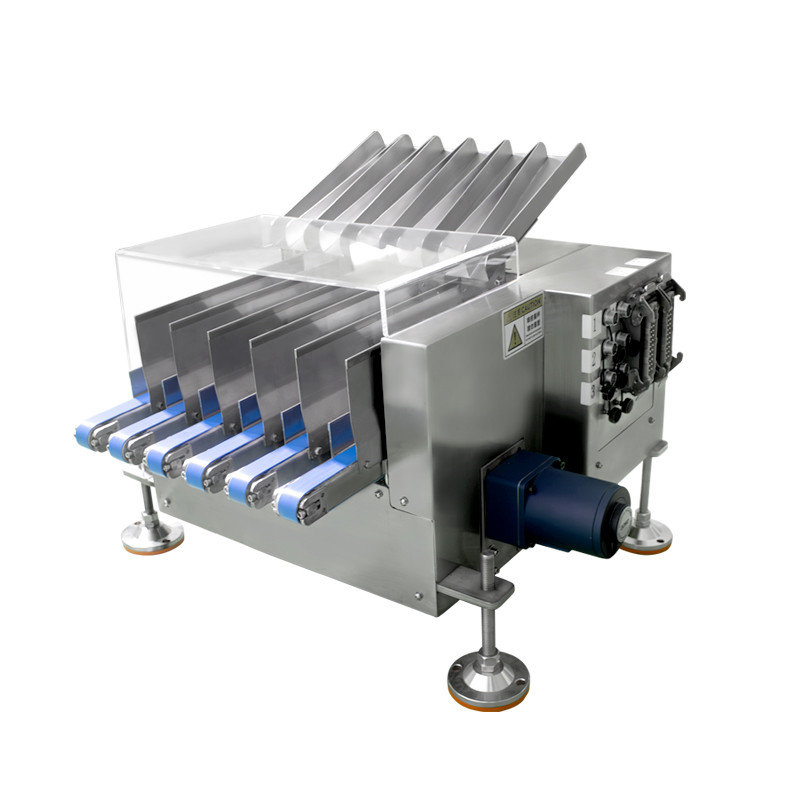

Multi-lane Checkweigher for Small Packaged Products SCP6
Introduction
The SCP6 is a multi-lane checkweighing solution designed for high-precision weighing of small packaged products such as tablets and stickpacks. It can be configured with anywhere up to twelve lanes, giving manufacturers flexibility to scale their production capacity.
The system meets CE and ISO requirements and supports one-click data export, with traceability for up to 300,000 records—features that make it suitable for operations with strict compliance needs. Its interface is intuitive and available in multiple languages, and the modular structure allows for quick dismantling and easy cleaning.
To protect the weighing sensors during demanding operation, the SCP6 includes an enhanced overload-protection mechanism. Overall, it is built to deliver stable performance at high speeds while maintaining the accuracy required for small-format products.
Multi-lane Checkweigher SCP6
Features
Multi-lane Checkweigher SCP6
Technical Parameters
| Product model | SCP6 | |
| Collect conveying width | 200mm | |
| Weighting accuracy | ±0.02-0.05g | |
Length of conveyor belt | Customized | |
Product output table height | 270-750mm | |
Weighing Range | 0.1-100g | |
Weighing speed | 40-50 cuts/minute | |
| Number of columns | Customized | |
Operation screen | Customized | |
File Downloads
For more product related parameter files, please contact us.
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
Multi-lane Checkweigher Applications
It is suitable for weight detection and missing tablet/missing pack screening of products such as capsules, tablets, and stick-packs.
Efficiently screen small products such as candies, snacks, meal replacement bars, small packages of coffee powder, etc.
It is suitable for the rapid weight checking of various products such as soft tubes, pen-shaped packages, and strip-shaped packages.
Multi-lane Checkweigher Cases
High-Speed Multi-Lane Checkweigher for Efficient Inspection of Instant Coffee Package
High-Speed Multi-Lane Checkweigher for Foundation in tubes
Multi-lane Checkweigher FAQS
Q1: What are the weighing range and maximum inspection speed of the SCP6?
A: The weighing range of the SCP6 is 0.1g to 100g. The inspection speed per lane is approximately 40-50 cuts/minute. The actual maximum inspection speed and accuracy may vary depending on the size, weight, and installation environment of the product being tested.
Q2: Can the multi-lane configuration of the SCP6 be customized?
A: Yes. The SCP6 supports customized configurations with up to 12 lanes. Both the number of lanes and the lane spacing (e.g., 80 mm for this product) can be flexibly adjusted and customized according to the discharge requirements of the user's existing packaging machine and the production line layout.
Q3: If the packaging machine's discharge chute is too close to the ground, how can products be smoothly conveyed to the checkweigher?
A: For the issue of the packaging machine's discharge chute being too close to the ground, it is recommended to install an intermittent multi-lane climbing conveyor before the checkweigher. This conveyor can effectively raise the product conveying height, ensuring that products enter the checkweigher smoothly and stably for inspection.
Q4: Does the SCP6 comply with international certification standards?
Q5: How does the SCP6 achieve production data traceability and export?
A: The SCP6 has built-in large-capacity storage, capable of tracing and storing 300,000 weight data records. Users can quickly export production data to a USB drive with a one-click operation, facilitating quality analysis, report generation, and long-term data archiving, achieving complete production traceability.
