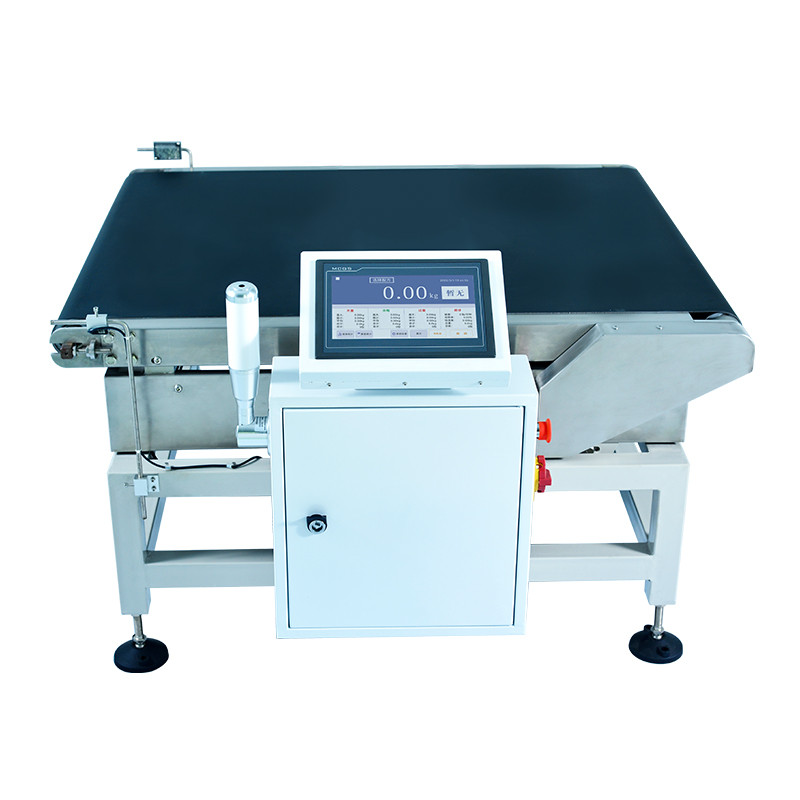

Heavy-Duty Automatic Checkweigher up to 80 kg SC3-10070L80
group nameCheckweigher
-
Min Order1 piece
brand nameSameGram
modelSC3-10070L80
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeFri, 05 Dec 2025 18:29:45 GMT
Paramtents
Weighting range 1-80kg
Belt speed 5-90m/min
Weighting accuracy ±10-30g
Weighting section size L 1000mm*W 700mm
Applicable product size L≤700mm; W≤700mm
Rejection mode Customized
Packging & Delivery
Min Order1 piece
Briefing
SC3-10070L80 is a heavy duty checkweigher ideal for large items up to 80 kg. This machine is also known as roller checkweigher.
Detailed
Detail Information
Heavy-Duty Automatic Checkweigher up to 80 kg SC3-10070L80
Introduction
The SC3-10070L80 is a heavy-duty automatic checkweigher designed for large cartons, crates, and objects up to 80 kg. Constructed from 304 stainless steel with IP65 protection, it integrates seamlessly with automated assembly lines, filling machines, and vertical packaging systems.

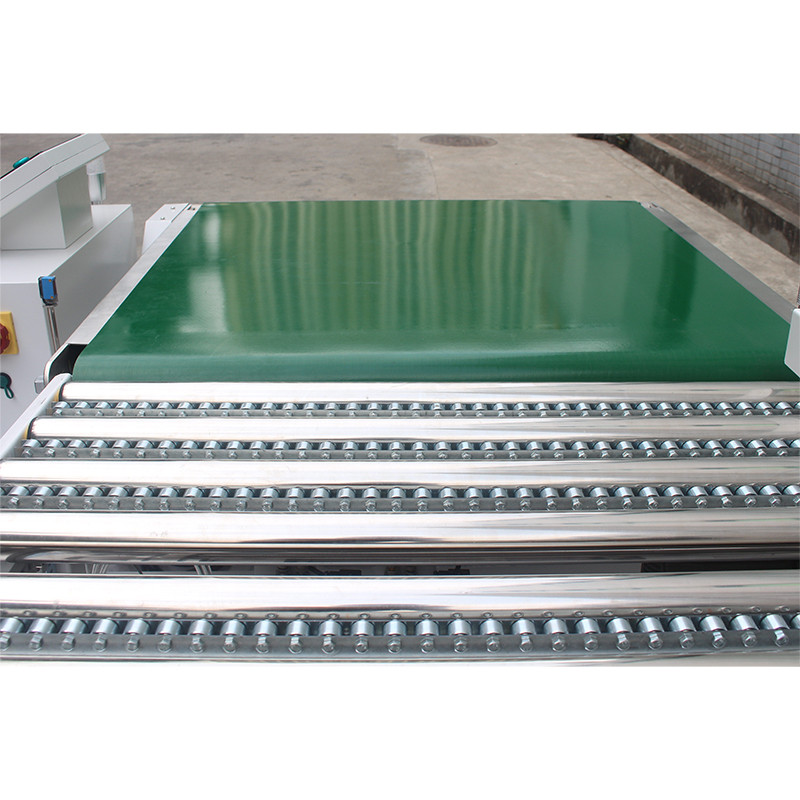

Equipped with a robust checkweigher roller system and checkweigher conveyor, it ensures smooth and stable transport of heavy products while maintaining hi-speed checkweighing accuracy under high-throughput conditions. The rugged frame withstands harsh industrial environments, making this roller checkweigher ideal for end-of-line inspection in logistics, warehousing, and manufacturing operations.
Compact yet powerful, the SC3-10070L80 offers reliable weight control, reduces product loss, and improves production efficiency, providing a versatile solution for demanding industrial packaging lines.
Heavy-Duty Automatic Checkweigher up to 80 kg SC3-10070L80
Features
Heavy-Duty Automatic Checkweigher up to 80 kg SC3-10070L80
Technical Parameters
| Product model | SC3-10070L80 | |
| Weighting range | 1-80kg | |
Weighting section size | L 1000mm*W 700mm | |
Belt speed | 5-90m/min | |
Air pressure interface | Φ8mm | |
| Case material | Carbon steel spray painting | |
Conveying direction | Facing the machine, left in and right out | |
Display division | 1g | |
| Weighting accuracy | ±10-30g | |
| Applicable product size | L≤700mm; W≤700mm | |
Storage formula | 100 types | |
power supply | AC220V±10% | |
Air source | 0.5-0.8MPa | |
Data transmission | USB data export | |
Alarm mode | Sound and light alarm and automatic rejection | |
Rejection mode | Push rod type, swing wheel type, jacking transplanting are optional | |
| Optional function | Inline printing, intelligent code detection and sorting, on-demand inkjet marking, real-time barcode reading, and automated label application. | |
Operation screen | 7-inch Kunluntong color touch screen | |
Control system | Samegram online weighing control system V1.0.5 | |
Other configurations | Mean Well power supply, Jingyan motor, stainless steel roller, AVIC electrical sensor | |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
