Aluminum Foil Metal Detector for Food Packaging Line DD-220 series
group nameConveyor Metal Detector
-
Min Order1 piece
brand nameSameGram
modelDD-220
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeSun, 07 Dec 2025 00:06:47 GMT
Paramtents
Passing height 300 (customizable)
passing width 100;120;150;200;300;350;400
Standard detection sensitivity：magnetic ball 0.6;0.8;1.0;1.2;1.5;2.0;2.5;3.0
Standard detection sensitivity：stainless steel bal 2.5;3.0;3.0;3.5;3.5;3.5;4.0;4.0
Belt speed 27 m/min
Body size 1400×750×1100mm
Packging & Delivery
Min Order1 piece
Briefing
DD-220 is a food conveyor metal detector designed for aluminum foil packaging,with high sensitivity and easy integration.
Detailed
Detail Information

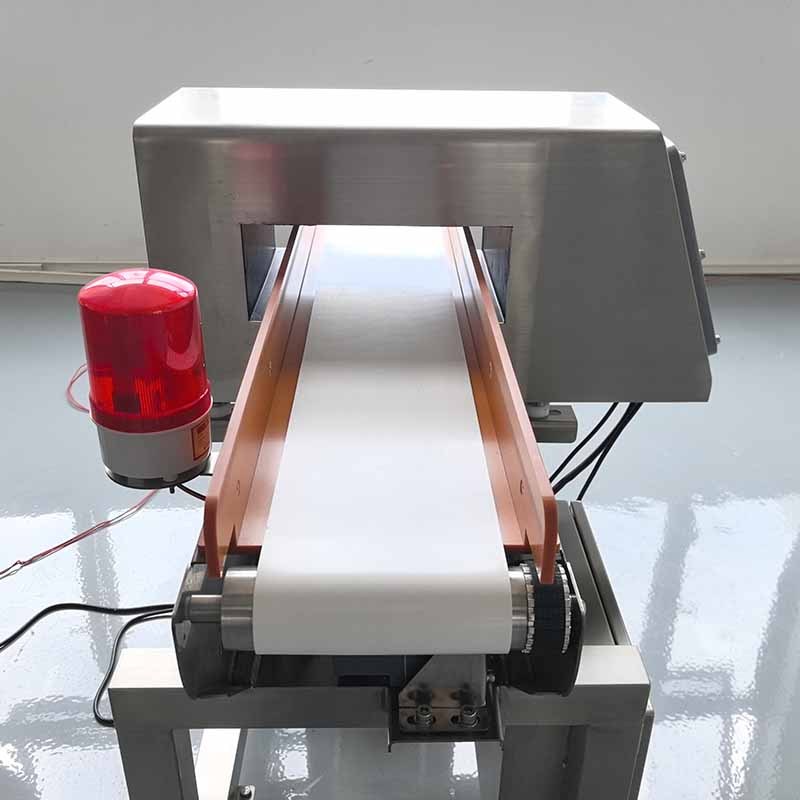

Aluminum Foil Metal Detector for Food Packaging Line DD-220 series
Introduction
The DD-220 Aluminum Foil Pack Metal Detector is engineered specifically for products wrapped in aluminum foil or metallized film—where conventional metal detectors fail due to packaging interference. Built for seamless integration into conveyor-based production lines, it provides accurate ferrous metal detection even when products are fully foil-sealed.
Its multi-coil detection technology delivers stable sensitivity while keeping the machine compact, making it easy to fit into existing conveyors. The system supports multiple reject options—such as flap, pusher, or reverse belt—allowing manufacturers to match different product formats and line speeds.
Designed to meet IFS and HACCP requirements, the DD-220 offers reliable performance for final-stage inspection, including post-packaging checks, pre-shipment quality control, and integrated weighing or labeling stations. With a robust stainless-steel conveyor, modular structure, and simple cleaning access, it provides dependable contamination control for food, pharmaceuticals, and other industries dealing with foil-packed goods.
Aluminum Foil Metal Detector for Food Packaging Line DD-220 series Features
Aluminum Foil Metal Detector for Food Packaging Line DD-220
series Technical Parameters
| Product model DD-220 series | 3008 | 3012 | 4008 | 4010 | 4012 | 4015 | 4020 | 4025 | |
| Passing height | 300 (customizable) | ||||||||
passing width | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
Standard detection sensitivity | magnetic ball | 0.6 | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 |
| stainless steel ball | 2.5 | 3.0 | 3.0 | 3.5 | 3.5 | 3.5 | 4.0 | 4.0 | |
| Alarm mode | The conveyor belt stops automatically when the sound and light alarm is sounded. When the automatic rejection structure is selected, the conveyor belt stops automatically. | ||||||||
Machine materials | 304 stainless steel | ||||||||
Belt speed | 27 m/min | ||||||||
Applicable environment | Temperature: 18-50ºC, Humidity: 30-90% | ||||||||
Body size | 1400×750×1100mm | ||||||||
Machine weight | About 200KG | ||||||||
* The above sensitivity parameters are the test results when the machine is empty and has no environmental interference. The actual application may be slightly different due to the interference of the use environment and the composition of the object being tested.
File Downloads
For more product related parameter files, please contact us.
Aluminum Foil Metal Detector for Food Packaging Line Applications
