High-Sensitivity Conveyor Belt Metal Detector for Food & Pharmaceutical DD-720
group nameConveyor Metal Detector
-
Min Order1 piece
brand nameSameGram
modelDD-720
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeSun, 29 Mar 2026 20:54:02 GMT
Paramtents
Control system INBOARD-STEAWE8206
Display OCM12864-2(customizable)
Connecting wire (shielded wire) Coil and control system（customizable）
Bracket/control box/sheet metal part Stainless steel304（customizable）
Packging & Delivery
Min Order1 piece
Briefing
DD-720 is a belt conveyor metal detector with unmatched sensitivity, ideal for food and pharma.
Detailed
Detail Information
High-Sensitivity Conveyor Belt Metal Detector for Food & Pharmaceutical DD-720
Introduction

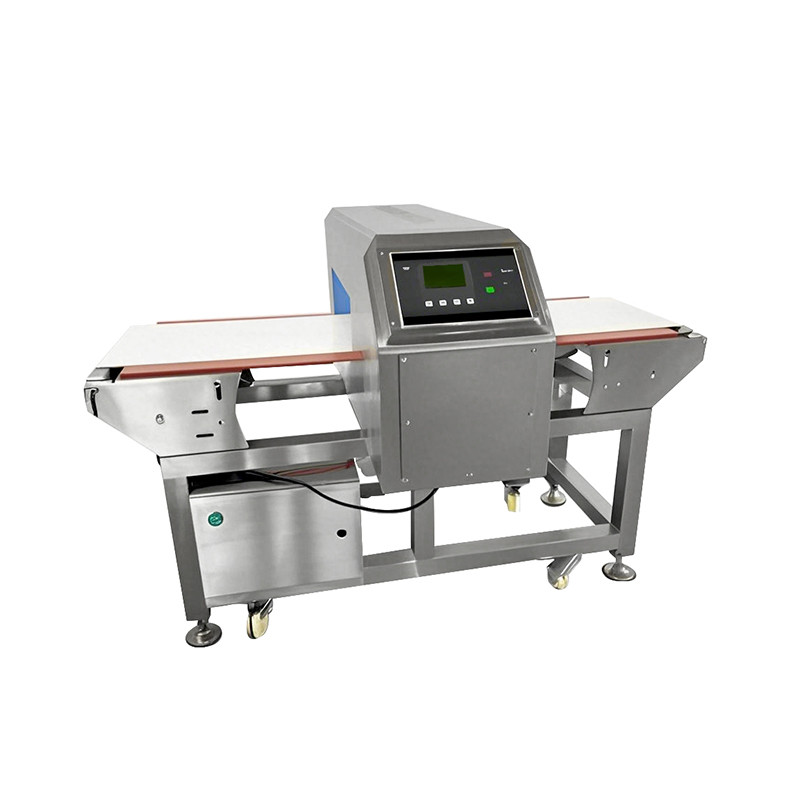

The DD-720 Series is a high-sensitivity conveyor belt metal detector engineered for the food, pharmaceutical, and chemical industries. It accurately detects both ferrous and non-ferrous metals in bulk or packaged products. Automatic rejection systems—including air blast, pusher, or flap—ensure contaminated products are removed efficiently. Built with a fully sealed stainless-steel probe and IP65 protection, the detector is easy to clean and complies with IFS and HACCP standards. Featuring an LCD interface, auto-learn calibration, and comprehensive product tracking, the DD-720 offers a reliable, intelligent solution for industrial metal detection in modern production lines.
High-Sensitivity Conveyor Belt Metal Detector for Food & Pharmaceutical DD-720 Features
Dual Metal Detection Capability
Capable of detecting both ferrous and non-ferrous metals, including stainless steel, copper, aluminum, and lead.
Advanced Auto-Learning Function
Quick calibration with one-button auto-setup adjusts to product effect, reducing false rejects and setup time.
Integrated Rejection System
Equipped with air jet, pusher, or flap rejectors for automatic removal of contaminated lightweight or small packages.
Hygienic Stainless Steel Design
Fully sealed detection head with IP65-rated stainless steel housing, ideal for cleanroom and wet environments.
Compliance with Global Standards
Meets IFS and HACCP regulations, making it suitable for international food and pharmaceutical safety certifications.
Smart Control and Data Logging
LCD interface with 200 product memory slots and 1,500 event records; includes metal signal relays and fault output.
High-Sensitivity Conveyor Belt Metal Detector for Food & Pharmaceutical DD-720
Technical Parameters
Model | Channel diameter (valid) | Detection accuracy | Model | Channel diameter (valid) | Detection accuracy |
| DD-720-200/100 | 200*70 | Fe 0.5mm SUS 0.7mm | DD-720-400/200 | 400*165 | Fe 1.0mm SUS 1.4mm |
| DD-720-200/150 | 200*125 | Fe 0.7mm SUS 1.0mm | DD-720-500/50 | 500*50 | Fe 0.5mm SUS 0.8mm |
| DD-720-350/150 | 300*100 | Fe 0.8mm SUS 1.2mm | DD-720-500/100 | 500*100 | Fe 0.7mm SUS 1.0mm |
DD-720-300/200 | 300*165 | Fe 1.0mm SUS 1.4mm | DD-720-600/150 | 600*150 | Fe 1.2mm SUS 1.6mm |
DD-720-400/150 | 400*115 | Fe 0.8mm SUS 1.2mm | DD-720-600/300 | 600*265 | Fe 1.5mm SUS 2.0mm |
| Product model | DD-720 | |
Control system | INBOARD-STEAWE8206 | |
Display | OCM12864-2(customizable) | |
| Connecting wire (shielded wire) | Coil and control system（customizable） | |
| Bracket/control box/sheet metal part | Stainless steel304（customizable） | |
Available Rejection Systems for High-Sensitivity Conveyor Belt Metal Detector DD-720
Up and Out Rejector for checkweigher and metal detector systems — stable, gentle, and precise for soft or thick products.
Fast swing arm works with checkweigher or metal detector systems to remove defective boxes and bags up to 1 kg.
Samegram’s Belt Drop rejector is a high speed rejector using pneumatic lift rods to gently remove thin bags and flat products.
Air Jet Rejectors use powerful air bursts to remove lightweight or low-density items. Ideal for fast-moving lines.
The heavy-duty pusher rejector pair with checkweigher systems to deliver accurate, mid-speed removal of heavy, boxed items.
