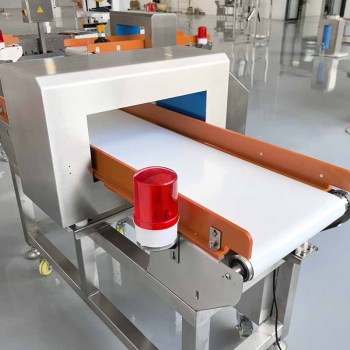

End of Line Conveyor Metal Detection System DD-360 Series

group nameConveyor Metal Detector
Min Order1 piece
brand nameSameGram
modelDD-360 Series
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
update timeSat, 06 Dec 2025 03:49:44 GMT

contact supplier

Paramtents

Passing height 80～1000 (customizable)
passing width 300～1200 (customizable)
Standard detection sensitivity： iron(ΦMM） ≥0.6
Standard detection sensitivity： non-iron(ΦMM) ≥0.8
Standard detection sensitivity： SUS304(ΦMM） ≥1.2
Protection Level IP67

Packging & Delivery

Min Order1 piece

Briefing

DD-360 Series is a food-grade metal detector conveyor system. Ideal for food industry and food production lines.

Detailed

Detail Information

End of Line Conveyor Metal Detection System DD-360 Series

Introduction

Samegram’s DD-360 Series is an end-of-line industrial metal detector conveyor engineered for manufacturers that require stable, high-sensitivity inspection with minimal operator effort. Its touch-screen interface simplifies product setup, allowing quick parameter adjustment and reliable calibration for items with different characteristics. The dual-CPU digital system automatically identifies optimal detection points, improving sensitivity and consistency even when products contain moisture, salt, or temperature variations.

Operators can view real-time signal strength, operating status, and fault diagnostics directly on the built-in waveform display, making maintenance faster and more intuitive. The system supports multi-frequency detection and stores over 100 product profiles to enable rapid product changeovers on busy lines. Detection logs and operational data can be exported via USB for traceability and compliance.

With adjustable conveyor speed, user-level access control, and multiple reject options, the DD-360 adapts easily to modern automated packaging environments. Its IP67 dust- and water-resistant structure ensures stable performance in harsh conditions. Compliant with GFSI and FSMA requirements, this food-grade metal detector minimizes false rejects, reduces waste, and supports stronger brand protection for food, pharma, and chemical producers.

End of Line Conveyor Metal Detection System DD-360 Series

Features

High Speed Weight Sorter Crafted from 304 stainless steel with IP65 protection.

Intelligent Touchscreen Interface

Dialog-style touch display enables fast setup, clear parameters, and multi-level user access.

High Speed Weight Sorter Supports 6 to 20 sorting levels for tailored classification.

High Sensitivity & Auto Calibration

CPU-based signal conversion with automatic sensitivity optimization for high accuracy.

High Speed Weight Sorter with Advanced catchweighers function automates grading.

Data Logging & USB Export

Built-in detection history and USB export functions streamline quality management.

High Speed Weight Sorter with High Efficiency for Fish Processing

Multi-Frequency Compatibility

Adapts to various product types with over 100 storable detection profiles.

High Speed Weight Sorter with Smart User Access Control

IP67 Waterproof & Shockproof Design

Sealed to withstand harsh environments with anti-vibration and noise-absorbing features.

High Speed Weight Sorter with User-friendly weight sorter machine interface.

Regulatory Compliance Ready

Supports GFSI and FSMA standards, protecting brands and reducing product waste.

End of Line Conveyor Metal Detection System DD-360 Series

Technical Parameters

Product model		DD-360 series
Passing height		80～1000 (customizable)
passing width		300～1200 (customizable)
Standard detection sensitivity	FE(ΦMM)	≥0.6
	NON-FE(ΦMM)	≥0.8
	SUS304(ΦMM)	≥1.2
protection level		IP67
Memory product quantity		100 kinds
Display mode		LED LCD
Operation mode		Touch button input (touch optional)
Alarm mode		Alarm shutdown, buzzer alarm, or rejection mechanism are optional.
Machine material		The entire machine is made of carbon steel with baked enamel or 304 stainless steel, and complies with HACCP, GMP, CAS and other standards.
Machine weight		≥120KG
power supply		AC200V±10% 50-60HZ (AC110V or AC380V can be customized) Other options available
Usage environment		Temperature: -180～50℃, Relative Humidity: 30～90℃

* Probe detection window, the size of the whole machine can be customized according to customer needs. The higher the detection window height, the lower the detection sensitivity. At the same time, the wider the detection window, the lower the detection sensitivity
* The detection sensitivity is the detection sensitivity obtained by placing the detection card in the center of the conveyor belt and passing it through the detection channel. The actual detection sensitivity will vary depending on the product being tested or the conditions of use.
