Z3PC-3 inch AC/DC Hybrid Centrifugal Submersible Borehole Solar Pump Plastic Impeller Pump
Z3PC-3 inch AC/DC Hybrid Centrifugal Submersible Borehole Solar Pump Plastic Impeller PumpZ3PC-3 inch AC/DC Hybrid Centrifugal Submersible Borehole Solar Pump Plastic Impeller PumpZ3PC-3 inch AC/DC Hybrid Centrifugal Submersible Borehole Solar Pump Plastic Impeller PumpZ3PC-3 inch AC/DC Hybrid Centrifugal Submersible Borehole Solar Pump Plastic Impeller PumpZ3PC-3 inch AC/DC Hybrid Centrifugal Submersible Borehole Solar Pump Plastic Impeller Pump

Z3PC-3 inch AC/DC Hybrid Centrifugal Submersible Borehole Solar Pump Plastic Impeller Pump

  • group nameAC/DC Hybrid Solar Water Pump

  • Min Order1 set

  • modelZ3PC

  • payment methodT/T, L/C, D/P D/A, MoneyGram

  • update timeFri, 05 Dec 2025 20:26:06 GMT

contact supplier

Paramtents

  • Categories AC/DC Solar Submersible Pump

  • Brand ZRI

  • Model Z3PC

  • Pump Type Impeller Type Solar Submersible Pump

  • Outlet 1.25/1.5 inch

  • Pump Diameter 3 inch / 75 mm

  • Application Domestic water supply, small area irrigation

  • Certificate CE, ISO9001, GS, RoHS

  • Warranty 2 years

  • Package type Wooden Case

Packging & Delivery

  • Min Order1 set

Briefing

Optimize your solutions with the Z3PC-3 inch AC/DC Solar Pump. Available for OEM, ODM, and wholesale partnerships.

Detailed

Product Details
Packaging Information
Installation Guide

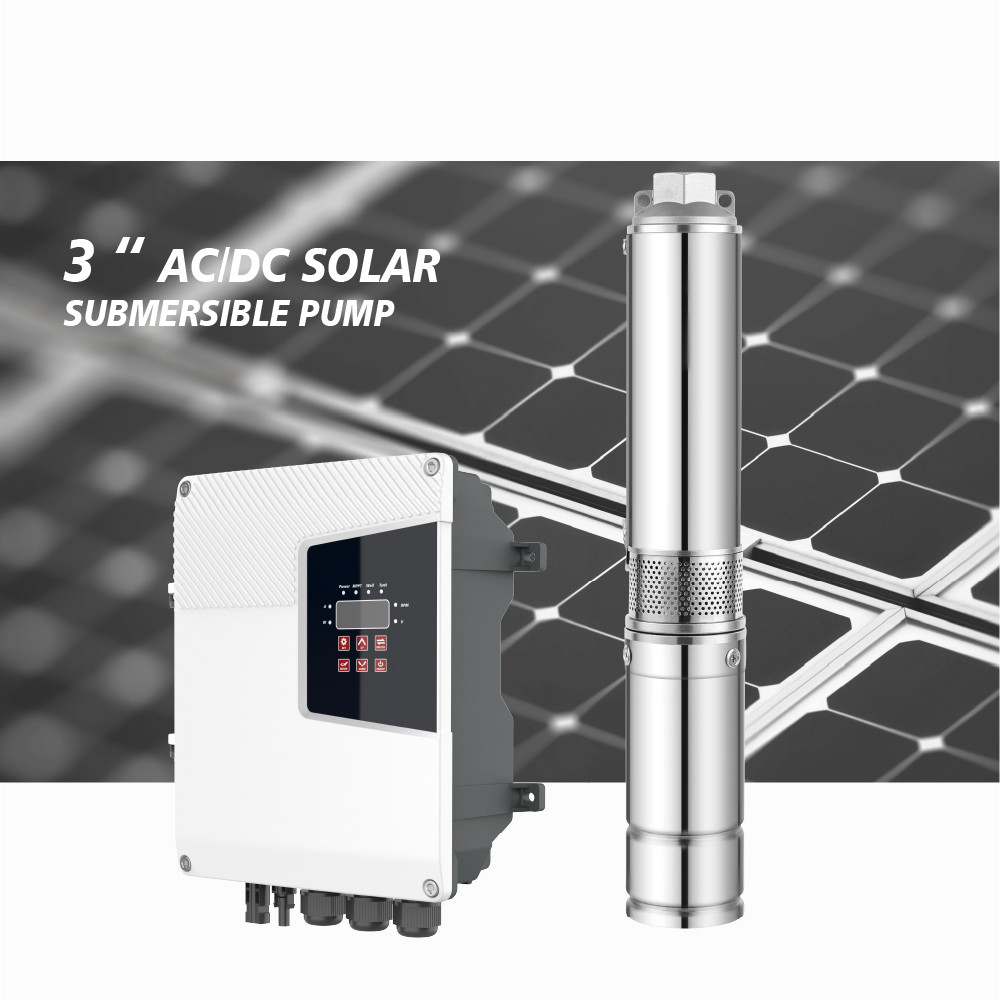

3 INCH AC/DC BRUSHLESS CENTRIFUGAL SOLAR PUMP
introduce
The 3-inch Solar Powered AC/DC Hybrid Submersible Bore Pump,Solar Impeller Pump is designed for reliable water pumping in off-grid locations. Powered directly by solar panels, this solar bore pump eliminates the need for traditional electricity or fuel, making it an eco-friendly and cost-effective solution.

Equipped with an MPPT controller and a brushless DC motor, this solar dc submersible water pump ensures maximum energy efficiency and stable operation. Its DC Impeller type design allows it to maintain consistent water flow even in deep wells or low-yield water sources, reducing maintenance needs.

This durable and versatile DC pump is ideal for agriculture irrigation, livestock watering, and rural water supply projects. Whether for farms, gardens, or remote communities, the brushless dc solar water pump provides a sustainable and long-lasting water pumping solution.
No.
Item
Rated Voltage
Optimum input voltage(DC)
Rated Power
Optimum input Power(W)
Max. Flow
Max. Head
Outlet
Cable
Controller
Solar panel Open circuit voltage (VOC)
A
Z3PC3.5-95-96-750D-A/DHY
80-285V
80-430V
750W
400-1200W
3.5m³/h
95m
1.25 "
2m
ADHY
＜450V
B
Z3PC3.8-123-150-1100D-A/DHY
80-285V
80-430V
1100W
600-1500W
3.8m³/h
123m
1.25 "
2m
ADHY
＜450V
C
Z3PC3.8-155-180-1300D-A/DHY
80-285V
80-430V
1300W
600-1600W
3.8m³/h
155m
1.25 "
2m
ADHY
＜450V
D
Z3PC3.8-180-200-1500D-A/DHY
80-285V
80-430V
1500W
600-1800W
3.8m³/h
180m
1.25 "
2m
ADHY
＜450V
E
Z3PC5.2-75-96-750D-A/DHY
80-285V
80-430V
750W
400-1200W
5.2m³/h
75m
1.5 "
2m
ADHY
＜450V
F
Z3PC6-84-150-1100D-A/DHY
80-285V
80-430V
1100W
600-1500W
6m³/h
84m
1.5 "
2m
ADHY
＜450V
G
Z3PC6-125-200-1500D-A/DHY
80-285V
80-430V
1500W
600-1800W
6m³/h
125m
1.5 "
2m
ADHY
＜450V
H
Z3PC7.5-43-96-750D-A/DHY
80-285V
80-430V
750W
400-1200W
7.5m³/h
43m
1.5 "
2m
ADHY
＜450V
I
Z3PC7.5-62-150-1100D-A/DHY
80-285V
80-430V
1100W
600-1500W
7.5m³/h
62m
1.5 "
2m
ADHY
＜450V
J
Z3PC7.5-78-200-1500D-A/DHY
80-285V
80-430V
1500W
600-1800W
7.5m³/h
78m
1.5 "
2m
ADHY
＜450V
Application
● Application of deep well pump to irrigation
● Garden watering
● Village and town water supply
● Enviroment friendly
● Clean drinking water
● Pumping and drip irrigation

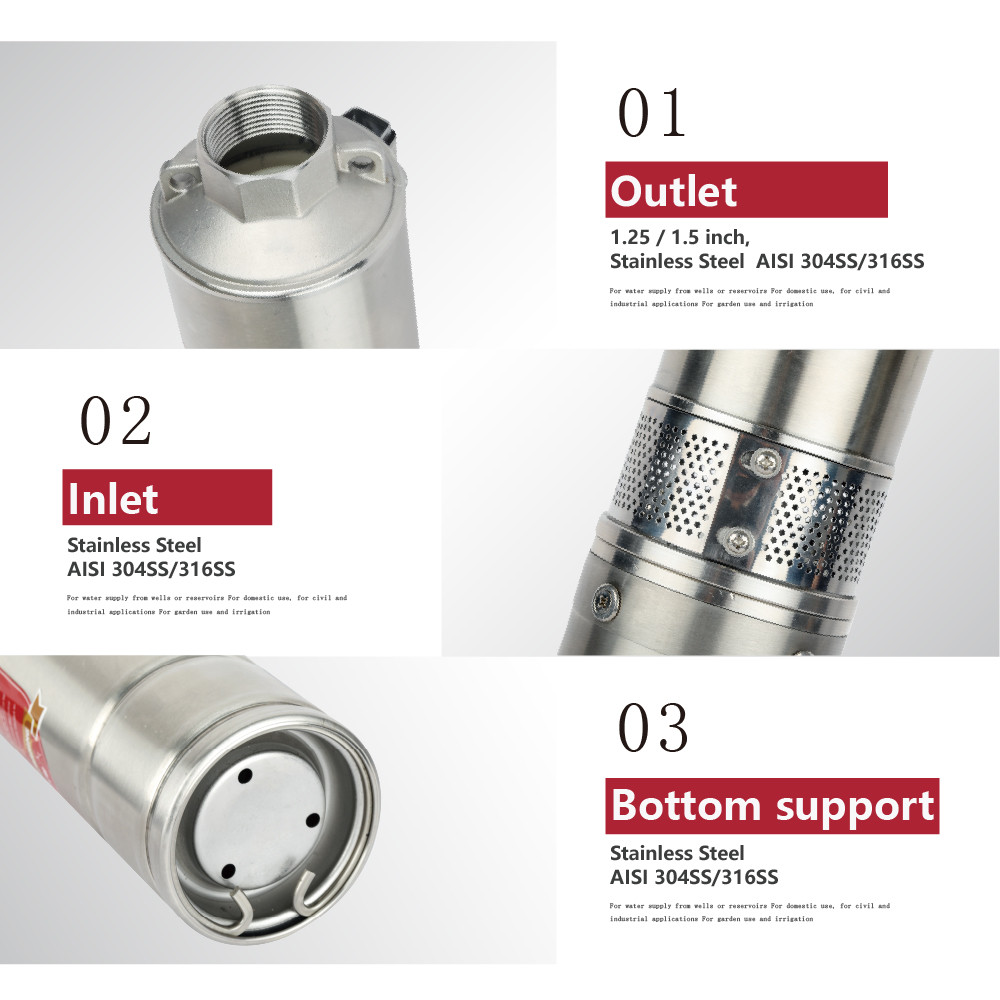

Pump Details

Trusted Manufacturer:

We specialize in solar-powered submersible bore pumps with years of OEM/ODM experience, ensuring reliable quality and a strong global supply chain.

High Efficiency & Innovation:

Equipped with an MPPT controller and brushless DC motor, our DC  centrifugal solar water pump maximizes energy efficiency and delivers stable water flow in deep wells or low-yield sources.

Versatile Applications:

Ideal for agriculture irrigation, livestock watering, and rural water supply projects, providing a sustainable solution for off-grid water needs.

Fully Customizable:

Options for pump size, flow rate, voltage, and branding – perfect for private label or tailored solutions to suit your specific project requirements.
why choose us
水泵细节
水泵细节
水泵细节
● Permanent magnet DC brush less synchronous motor: the efficiency is improved by 15- 20%
● Oil filled motors for reliability and to avoid oil contamination
● Alloy mechanical seal ,longer working life and high reliability
● NSK Angular Contact Bearing
Controller Details
水泵细节

- MPPT: Maximum Power Point Tracking

- DSP: Digital Signal Processing - Running Speed Control: stepless speed regulation

- Timing function: Set pump running time

- Over current protection: Motor stops automatically when stucked

- Soft starting protection:Protect the motor & bearing

- Lack of water protection: Restart Automatically upon the Water Level

- Low-voltage / Over-voltage protection: Protect the motor & controller

- Reverse voltage protection: Circuit breaking automatically when reverse connection

- Short-circuit protection: Automatically stops when Short wiring of motor
控制器细节
控制器细节
控制器细节
Test Report
Z3PC3.5-95-96-750D-A/DHY

Z3PC3.8-123-150-1100D-A/DHY

Z3PC3.8-155-180-1300D-A/DHY

Z3PC3.8-180-200-1500D-A/DHY

Z3PC5.2-75-96-750D-A/DHY

Z3PC6-84-150-1100D-A/DHY

Z3PC6-125-200-1500D-A/DHY

Z3PC7.5-43-96-750D-A/DHY

Z3PC7.5-62-150-1100D-A/DHY

Z3PC7.5-78-200-1500D-A/DHY

Packaging Information
test
test
test
test

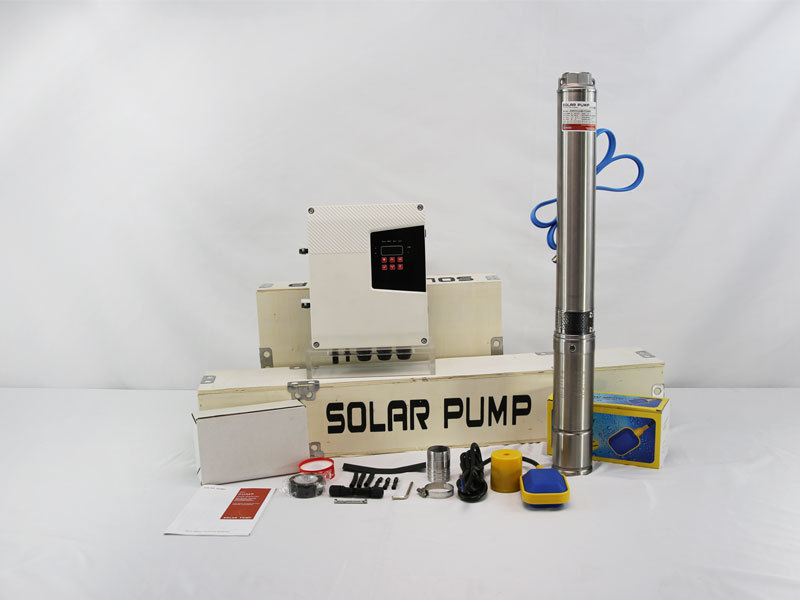

Package Include:                                                                                          Additional materials need to be prepared:

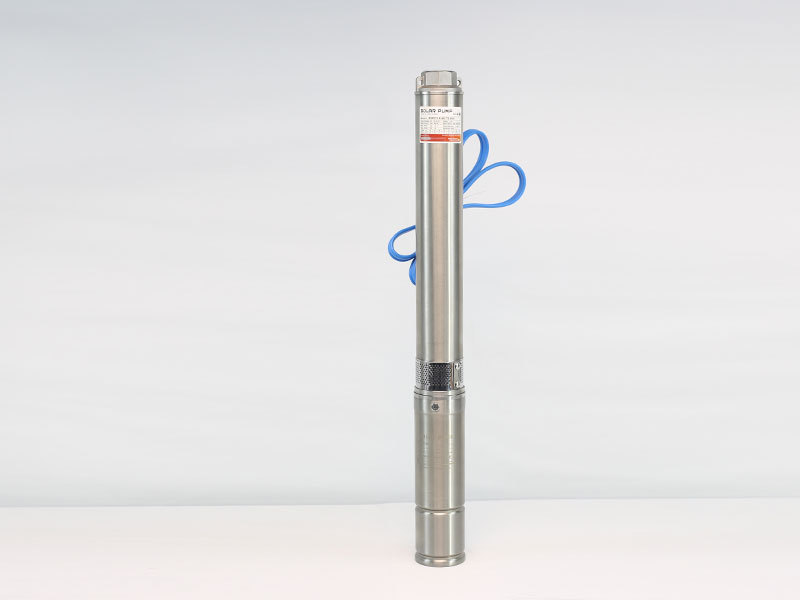

● 1 x 3 inch Brushless solar centrifugal pump with one 2m cable
● 1 x AC/DC Hybrid Pump controler with MPPT function
● 1 x Plastic Water Float swith (sensor for tank)
● 1 x Pump outlet joint connector
● 1 x Splice kit for cable join
● 1 x Splice kit for waterproof
● Suitable solar panels. Refer to the suggestions provided in the instruction book.
● Motor power cable (2 wires plus earth). We recommend using a cable that is at least thicker than the original cable in the pump.
● PV cable (for connecting solar panels to the controller).
● Poly pipe from the pump to the water tank. We recommend using a poly pipe with a diameter of 1 inch or more.
● A stainless steel wire (referred to as a safety cable) to secure the pump in the bore. If pumping water from a dam or river, a float setup is required.
Packaged Data
No.
Item
Water pump Packaging
Controller Packaging
Packaging materials
Length
(CM）
Width(CM)
Height
(CM)
Volume
(m³)
Weight(KG)
Length
(CM）
Width
(CM)
Height
(CM)
Volume
(m³)
Weight
(KG)
A
Z3PC3.5-95-96-750D-A/DHY
80
16
15
0.019
9
52
30
15
0.023
6.2
Wooden Case
B
Z3PC3.8-123-150-1100D-A/DHY
87
16
15
0.021
9
52
30
15
0.023
6.2
Wooden Case
C
Z3PC3.8-155-180-1300D-A/DHY
99
16
15
0.024
9.5
52
30
15
0.023
6.2
Wooden Case
D
Z3PC3.8-180-200-1500D-A/DHY
106
16
15
0.025
10
52
30
15
0.023
6.2
Wooden Case
E
Z3PC5.2-75-96-750D-A/DHY
74
16
15
0.018
10
52
30
15
0.023
6.2
Wooden Case
F
Z3PC6-84-150-1100D-A/DHY
79
16
15
0.019
11
52
30
15
0.023
6.2
Wooden Case
G
Z3PC6-125-200-1500D-A/DHY
92
16
15
0.022
11.5
52
30
15
0.023
6.2
Wooden Case
H
Z3PC7.5-43-96-750D-A/DHY
70
16
15
0.017
12
52
30
15
0.023
6.2
Wooden Case
I
Z3PC7.5-62-150-1100D-A/DHY
77
16
15
0.018
11
52
30
15
0.023
6.2
Wooden Case
J
Z3PC7.5-78-200-1500D-A/DHY
84
16
15
0.020
11.5
52
30
15
0.023
6.2
Wooden Case
System Wiring Instruction
tag3-1
tag3-1
How to configure solar panels
● Connect the solar panels accurately according to the product manual, as excessively high VOC voltage may cause irreversible damage to the controller.
● It is generally recommended to calculate the required solar panel power based on 1.3 to 1.5 times the rated power of the water pump.
● When connecting the solar panels, ensure that the VOC voltage of the solar panels does not exceed the maximum VOC voltage limit of the controller.
No.
Model
Controller Voc
Solar Panel Connection
A
Z3PC3.5-95-96-750D-A/DHY
SAD-3C96-430VOC
Solar Panel A Connection
B
Z3PC3.8-123-150-1100D-A/DHY
SAD-3C15-430VOC
Solar Panel A Connection
C
Z3PC3.8-155-180-1300D-A/DHY
SAD-3C20-430VOC
Solar Panel A Connection
D
Z3PC3.8-180-200-1500D-A/DHY
SAD-3C20-430VOC
Solar Panel A Connection
E
Z3PC5.2-75-96-750D-A/DHY
SAD-3C96-430VOC
Solar Panel A Connection
F
Z3PC6-84-150-1100D-A/DHY
SAD-3C15-430VOC
Solar Panel A Connection
G
Z3PC6-125-200-1500D-A/DHY
SAD-3C20-430VOC
Solar Panel A Connection
H
Z3PC7.5-43-96-750D-A/DHY
SAD-3C96-430VOC
Solar Panel A Connection
I
Z3PC7.5-62-150-1100D-A/DHY
SAD-3C15-430VOC
Solar Panel A Connection
J
Z3PC7.5-78-200-1500D-A/DHY
SAD-3C20-430VOC
Solar Panel A Connection
