ZSSP-ADHY AC/DC Solar-Powered Swimming Pool Pump for Water Treatment with MPPT Controller

  • group nameDC Solar Water Pump

  • Min Order1 set

  • modelZSSP-ADHY

  • payment methodT/T, L/C, D/P D/A, MoneyGram

  • update timeTue, 16 Dec 2025 07:29:31 GMT

Paramtents

  • Categories AC/DC Solar Swimming Pool Pump

  • Brand ZRI

  • Model ZSSP-ADHY

  • Pump Type Impeller Type Solar Swimming Pool Pump

  • Outlet 2 inch

  • Application Swimming pool, water park

  • Certificate CE, ISO9001, GS, RoHS

  • Warranty 2 years

  • Package type Wooden Case

Packging & Delivery

  • Min Order1 set

Briefing

ZSSP-ADHY AC/DC Solar Pool Pump offers efficient water treatment with MPPT control. OEM, ODM, wholesale options available.

Detailed

Solar Swimming Pool Pump
introduce
With the mass emission of greenhouse gas like carbon dioxide, global warming is a growing problem to face. Renewable energy is thus greatly promoted and applied in developed countries. Government subsidies renewable energy users or allows free tax policy so as to reduce consumption of those non-renewable energy like oil, coal. This significantly helps to save energy and protect environment.

ZRI Solar circulation system is featured with modular design, zero noise and pollution free. It is fully safe and reliable, very easy for maintenance. No battery is required.

ZRI Solar circulation system not only benefits the domestic and commercial users with purified water and advanced swimming pool circulation mode, but also reduces electricity cost with free energy.
No.
Item
Rated AC Voltage
Rated DC Voltage
Rated Power
Optimum input Power(W)
Max. Flow
Max. Head
Outlet
Cable
Controller
Solar panel Open circuit voltage (VOC)
A
ZSSP20-19-150-900-AD
80-285V
80-430V
900W
400-1600W
20m³/h
19m
2.0×2.0 "
1m
ADHY
<450V
B
ZSSP27-19-180-1200-AD
80-285V
80-430V
1200W
600-1800W
27m³/h
19m
3.0×3.0 "
1m
ADHY
<450V
Application
● Application of lake or river to irrigation
● Garden watering
● Village and town water supply
● Enviroment friendly
● Clean drinking water
● Pumping and drip irrigation
Pump Details

Trusted Manufacturer

We specialize in Solar Pumps with years of OEM/ODM experience, boasting reliable quality and a robust global supply chain to support your business needs.

High Efficiency & Innovation
Equipped with an MPPT controller and a brushless DC motor, our DCSolar Swimming Pool Pump  maximizes energy efficiency and delivers stable water flow – even with shallow water sources or variable supply conditions.

Versatile Applications
Ideal for agricultural irrigation, livestock watering, and rural water supply projects, it provides a sustainable solution for off-grid or remote water needs.

Fully Customizable
We offer flexible options for pump size, flow rate, voltage, and branding – perfect for private labeling or tailored solutions to match your specific project requirements.
why choose us
水泵细节
水泵细节
水泵细节
● Permanent magnet DC brush less synchronous motor: the efficiency is improved by 15- 20%
● Oil filled motors for reliability and to avoid oil contamination
● Alloy mechanical seal ,longer working life and high reliability
● NSK Angular Contact Bearing
Controller Details
水泵细节

- MPPT: Maximum Power Point Tracking

- Running Speed Control: stepless speed regulation

- Timing function: Set pump running time

- Over current protection: Motor stops automatically when stucked

- Soft starting protection:Protect the motor & bearing

- Lack of water protection: Restart Automatically upon the Water Level

- Low-voltage / Over-voltage protection: Protect the motor & controller

- Reverse voltage protection: Circuit breaking automatically when reverse connection

- Short-circuit protection: Automatically stops when Short wiring of motor
控制器细节
控制器细节
控制器细节
Test Report
ZSSP20-19-150-900-AD

ZSSP27-19-180-1200-AD

Packaging Information
test
test
test
test

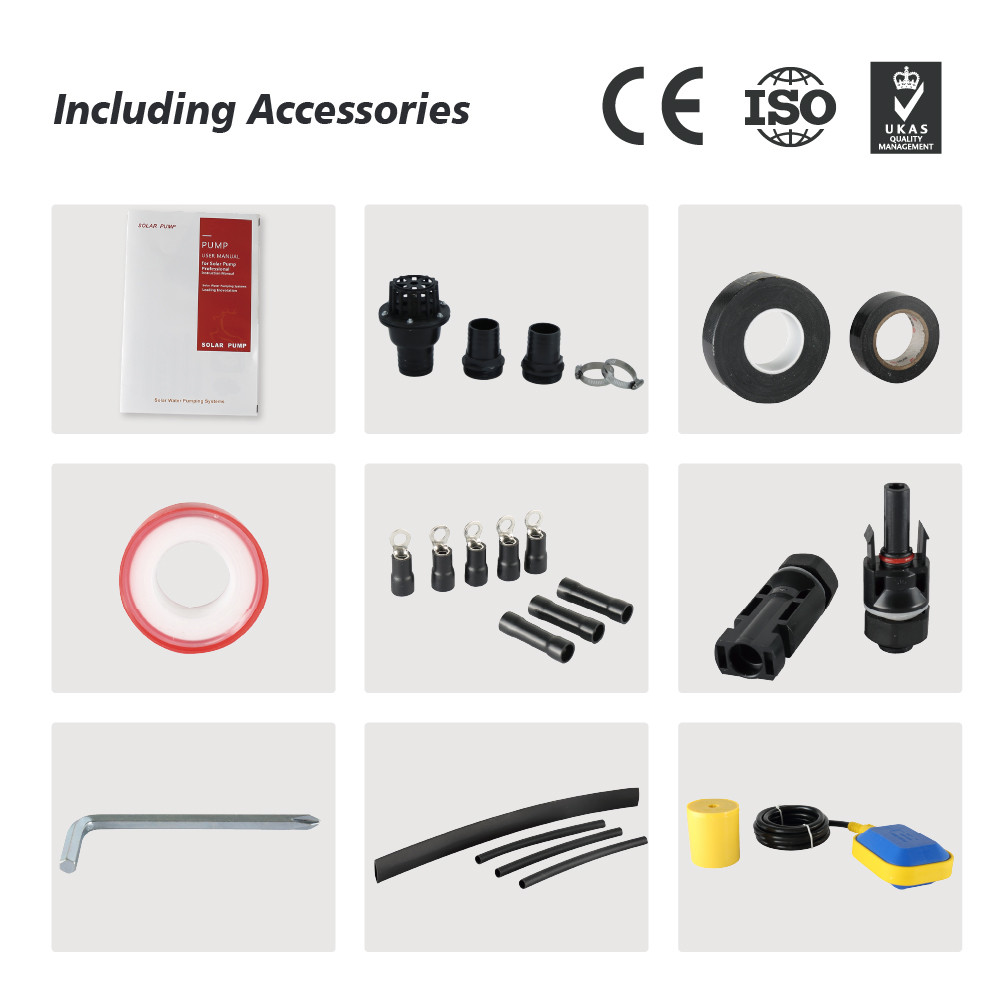

Package Include:                                                                                                          Additional materials need to be prepared:
● 1 x AC/DC solar surface pump with one 1m cable
● 1 x AC/DC Pump controler with MPPT function
● 1 x Plastic float swith (sensor for tank)
● 1 x Pump outlet joint connector
● 1 x Splice kit for cable join
● 1 x Splice kit for waterproof
● Suitable solar panels. Refer to the suggestions provided in the instruction book.
● Motor power cable (2 wires plus earth). We recommend using a cable that is at least thicker than the original cable in the pump.
● PV cable (for connecting solar panels to the controller).
● Poly pipe from the pump to the water tank. We recommend using a poly pipe with a diameter of 1 inch or more.
● A stainless steel wire (referred to as a safety cable) to secure the pump in the bore. If pumping water from a dam or river, a float setup is required.
Packaged Data
No.
Item
Water pump Packaging
Controller Packaging
Packaging materials
Length
(CM)
Width(CM)
Height
(CM)
Volume
(m³)
Weight(kg)
Length
(CM)
Width
(CM)
Height
(CM)
Volume
(m³)
Weight
(kg)
A
ZSSP20-19-150-900-AD
50
28
40
0.056
18
52
30
15
0.0234
6.2
Wooden Case
B
ZSSP27-19-180-1200-AD
50
28
40
0.056
20
52
30
15
0.0234
6.2
Wooden Case
System Wiring Instruction
tag3-1
tag3-1
How to configure solar panels
● Connect the solar panels accurately according to the product manual, as excessively high VOC voltage may cause irreversible damage to the controller.
● It is generally recommended to calculate the required solar panel power based on 1.3 to 1.5 times the rated power of the water pump.
● When connecting the solar panels, ensure that the VOC voltage of the solar panels does not exceed the maximum VOC voltage limit of the controller.
No.
Model
Controller Voc
Solar Panel Connection
A
SSSP20-19-150-900
SSL-5H15-430VOC
Solar Panel A Connection
A
SSSP27-19-180-1200
SSL-5H20-430VOC
Solar Panel A Connection
