Plastic Sheet Butt Welder WeiBond 4000
group namePlastic Sheet Butt Welder
-
Min Order1 piece
brand nameWeissenberg
modelWeiBond 4000
payment methodT/T, L/C, PayPal, Cash
-
update timeFri, 05 Dec 2025 15:24:23 GMT
Paramtents
Maximum Welding Width 4000 mm
Maximum Welding Thickness 40 mm
Standard Applied DVS2207
Weldable Materials PE, PP, PVDF, PVC, ABS etc
Welding Type Plastic Sheet Butt Welding
Certificate CE
Packging & Delivery
Min Order1 piece
Briefing
WeiBond 4000 Plastic Sheet Welder offers top-notch OEM/ODM services, ensuring reliability and excellence for your plastic fabrication needs.
Detailed
Detail Information
Plastic Sheet Butt Welder WeiBond 4000 Introduction

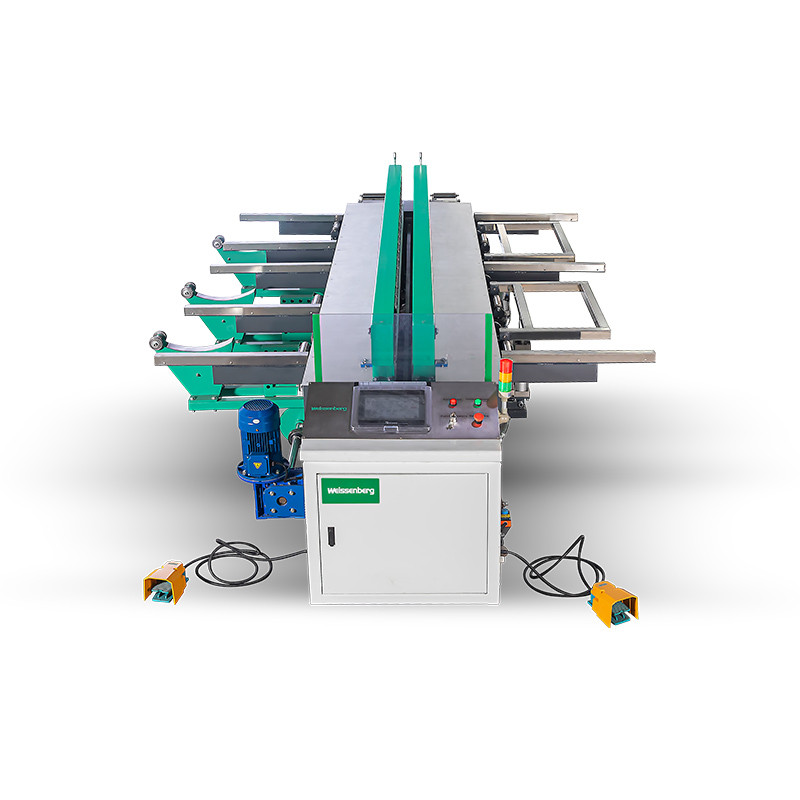

The Weissenberg WeiBond 4000 is a heavy-duty butt welding machine for thermoplastic sheets 3 to 40 mm thick, with a maximum welding width of 4000 mm. Built for industrial sectors including chemical processing, ventilation systems, and wastewater treatment, it delivers consistent, high-quality welds on large-scale sheets.
Plastic Sheet Butt Welder WeiBond 4000 Features
Plastic Sheet Butt Welder WeiBond 4000 Technical Parameters
| Product model | WeiBond 4000 |
| Maximum Working width | 4,000mm |
Machine Length | 5,750mm |
Machine width | 2,500mm |
Machine height | 1,200mm |
PE (0.15 N/mm²) | 3-40 |
PP (0.10 N/mm²) | 3-40 |
| PVDF (0.10 N/mm²) | 3-40 |
| Power supply | 230/400V 3/N/PE,50/60 Hz |
| Power consumption | 7.8KW |
Compressed Air Connection | 4-8bar |
Max. HeatingTemperature | 260°C |
| Optional Auxiliary Tools | 90° degree angle device Rolling auxiliary device |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
