Rail Defect Inspection Scanner| Auxiliary Rail Flaw Detection Instrument | Track Geometry System
group nameTrack Geometry Measurement Tools
-
Min Order1 piece
brand nameRailway Maintenance Equipment & Solutions
modelINS-based Track Geometry System
payment methodT/T, L/C, D/P D/A
-
update timeTue, 15 Sep 2026 13:36:52 GMT
Paramtents
Camera Sensor 1/4 inch CMOS, 1280x720, 60 fps, global shutter
Video Compression Real-time H.264
Power Consumption 4W (Day Mode) / 14W (Night Mode)
Power Supply 7.4V 15Ah battery
Video Data Size About 6 GB/hour per unit
Data Acquisition Timed capture, continuous recording
Packging & Delivery
Min Order1 piece
Briefing
This system is the surveillance camera assisting the track geometry detector.
Detailed
Track Geometry System Overview

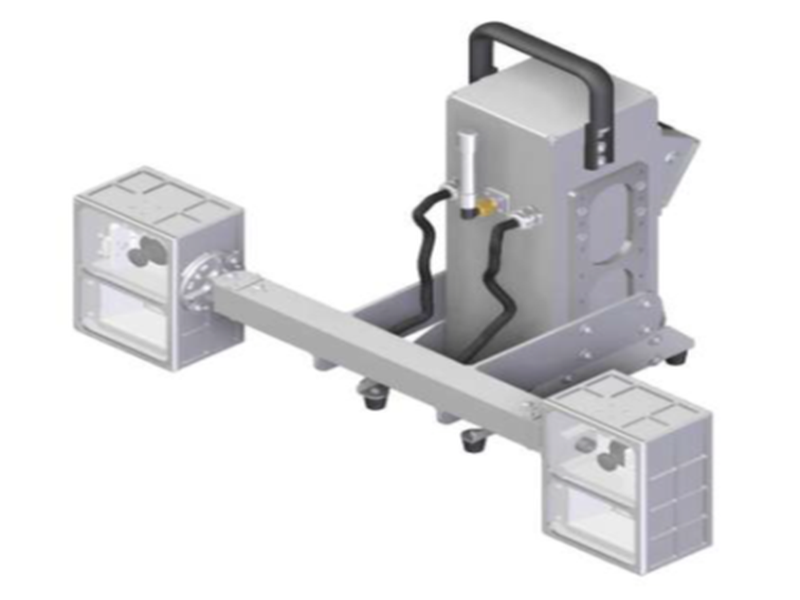

Track Structure Defect Inspection Scanner (abbreviated as "Defect Inspection Scanner") consists of a main unit, high-speed cameras, and LED fill lights. Utilizing technologies such as high-speed image acquisition and OSD annotation, it performs collection and storage management of track structure image data. This system enables simultaneous inspection of track static geometric parameters and structural conditions, thereby enhancing the efficiency of inspection work.
Key Feature
⚪ High-speed image acquisition by cameras with real-time online compression.
⚪ Multi-channel, low-latency network image preview display and real-time storage.
⚪ Industrial integrated design for simple and easy installation.
High-speed PWM (Pulse Width Modulation) adjustable fill lighting control.
⚪ OSD (On-Screen Display) text and image overlay.
Technical Specifications
⚪ Camera Sensor Specifications: Advanced CMOS sensing chip, 1/4 inch, 1280*720 (1 Megapixel), 60 fps, global shutter.
⚪ Video Compression: Real-time H.264.
⚪ Power Consumption: 4W (Day Mode) / 14W (Night Mode) - for a single recording unit with 2 lenses and 2 fill lights.
⚪ Data Acquisition Modes: Designated image capture, continuous video recording.
⚪ Video Data Formats: MP4, AVI, etc.
⚪ Video Data Size: Approximately 6 GB/hour - for a single recording unit with 2 lenses (actual size depends on frame rate and bitrate).
⚪ Power Supply: 7.4V 15Ah (supports continuous operation: approx. 18 hours in Day Mode, 6 hours in Night Mode).
Application Effectiveness
