Track Geometry Inspection Trolley RCI TW: Dual-Sensor Rail | High-Resolution Short-Wave Survey
group nameTrack Geometry Measurement Tools
-
Min Order1 piece
brand nameRailway Maintenance Equipment & Solutions
modelRCI TW
payment methodT/T, L/C, D/P D/A
-
update timeThu, 30 Apr 2026 06:29:37 GMT
Paramtents
Product Type Dual-Sensor (Trolley + Wheel) Rail Track Inspection Trolley
Measurement Principle Contact wheel + optical encoder + inertial backup
weight ≤26 kg
Packging & Delivery
Min Order1 piece
Briefing
This portable track geometry detector measures gauge, level, fits multiple gauges, and ensures safe rail inspection.
Detailed
Overview
The RCI TW utilizes a dual-wheel contact system with high-precision optical encoders and redundant inertial sensing to capture sub-millimeter variations in track geometry. Its low-speed operation (1–2 km/h) enables detection of short-wave irregularities (wavelength < 3 m) critical for ride quality on high-speed lines. The trolley measures gauge, superelevation, twist, alignment, profile, and versine with consistent ±0.30 mm accuracy on gauge and superelevation. Data is synchronized with sleeper numbering for precise defect localization. Suitable for post-construction verification, weld zone inspection, and pre-tamping baseline surveys.
Key Components

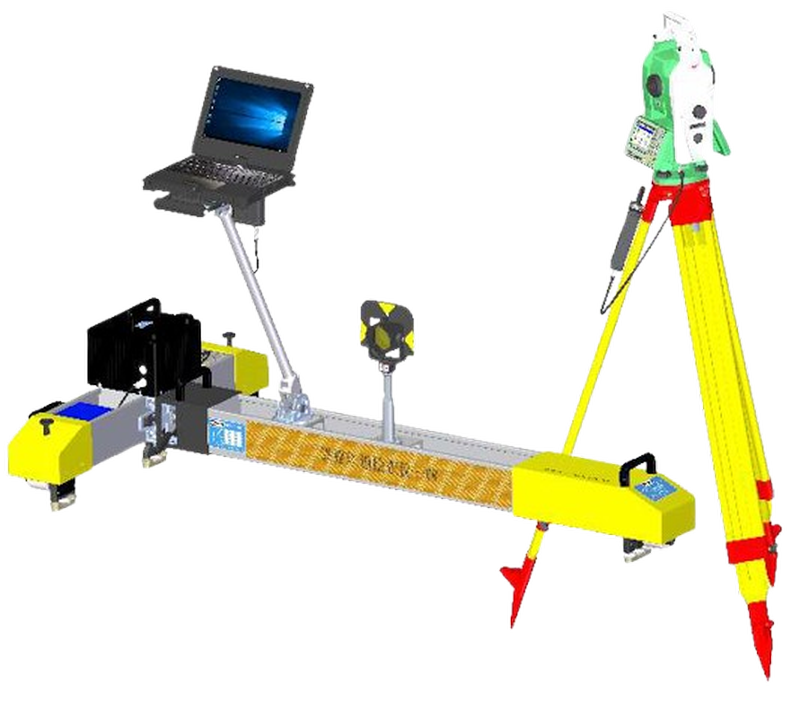

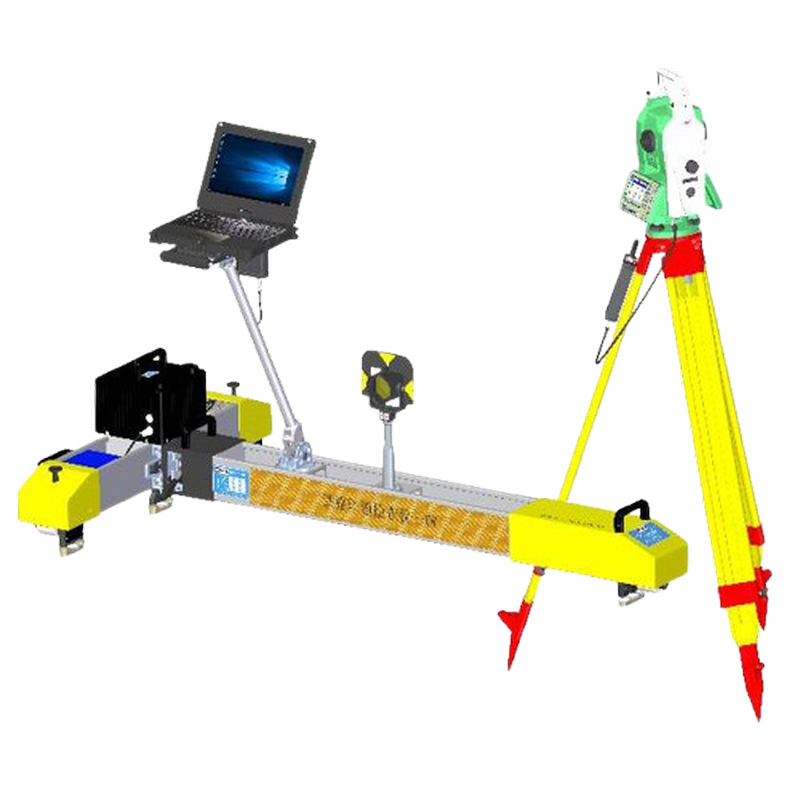

The GNSS‑based railway track inspection system comprises the following components:
● T‑shaped trolley – integrated with an Inertial Measurement System (IMS)
● Inertial Measurement System (IMS) – provides core inertial measurements
● Ruggedized military‑grade laptop computer – runs data acquisition and analysis software
● Data acquisition and analysis software – handles track data collection and processing
● High‑precision total station – includes a tripod and a data transmission radio
● Dedicated ballastless track fine‑adjustment software – enables comprehensive track evaluation and optimization
RCI Series Track Geometry Inspection Trolley – Technical Specifications
Type | RCI INS(Inertial)Track Inspection Trolley | RCI GNSSTrack Inspection Trolley | RCI TWTrack Inspection Trolley | RCI GJY-TW-RB-1 (Class 0 Relative)Track Inspection Trolley | RCI GJY-T-4A (Class 1 Relative)Track Inspection Trolley | |||||||||||||||
Main Parameter | Gauge | ±0.30 mm | ±0.30 mm | ±0.30 mm | ±0.30 mm | ±0.50 mm | ||||||||||||||
Superelevation | ±0.30 mm | ±0.30 mm | ±0.30 mm | ±0.30 mm | ±0.50 mm | |||||||||||||||
Twist | ±0.50 mm | ±0.50 mm | ±0.50 mm | ±0.50 mm | ±0.70 mm | |||||||||||||||
Alignment & Profile | ±0.70 mm | ±0.70 mm | ±0.70 mm | ±0.70 mm | ±0.10 mm | |||||||||||||||
Versine | ±1.00 mm | ±0.10 mm | ±0.10 mm | ±0.10 mm | ±0.10 mm | |||||||||||||||
Alignment & Profile (30m) | ±0.70 mm | ±0.70 mm | ±0.70 mm | ±0.70 mm | — | |||||||||||||||
Alignment & Profile (300m) | ±3.00 mm | ±3.00 mm | ±3.00 mm | ±3.00 mm | — | |||||||||||||||
Lateral Deviation | ±3.00 mm | — | ±3.00 mm | — | — | |||||||||||||||
Vertical Deviation | ±2.50 mm | — | ±2.50 mm | — | — | |||||||||||||||
Mileage | ±0.10% | ±0.10% | ±0.10% | ±0.10% | ±0.10% | |||||||||||||||
Measurement Efficiency | 1.5–3 km/h | 4–5 km/h | 1–2 km/h | 4–6 km/h | 4–6 km/h | |||||||||||||||
Application Scopes
⚪ Measurement of internal track parameters and external alignment parameters (both plane and elevation) on lines established based on CPIII control networks or fixed peg control networks.
⚪ Performing long-wave fine adjustment of ballastless tracks based on CPIII control networks or fixed peg control networks.
Technical Specifications
● Sensor Type: Contact wheel + optical encoder + MEMS IMU
● Power: Internal 24V Li-ion
● Weight: ≤26 kg
● Dimensions: 0.60 × 0.30 × 0.88 m
● IP Rating: IP54
● Temp Range: –25 °C to +45 °C
