RAIL PROFILE MEASURING INSTRUMENT
group nameRail Condition Inspection Tools
-
Min Order1 piece
brand nameRailway Maintenance Equipment & Solutions
modelSPM
payment methodT/T, L/C, D/P D/A
-
update timeFri, 15 May 2026 01:28:56 GMT
Packging & Delivery
Min Order1 piece
Briefing
The SPM portable rail profile gauge is a rail cross-section profile measurement and analysis device
Detailed
Overview

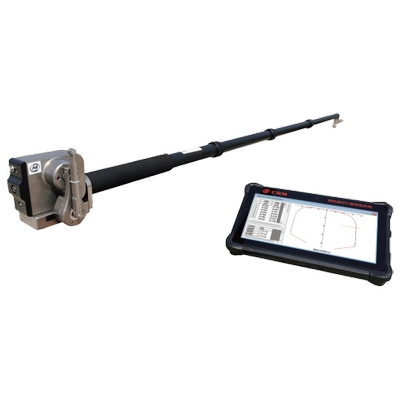

The SPM portable rail profile gauge is a rail cross-section profile measurement and analysis device developed by China Railway Materials Operation and Maintenance Technology Co., Ltd. It can accurately measure rail profiles and calculate key parameters such as rail side wear, vertical wear, superelevation, track gauge, equivalent conicity, and wheel-rail contact characteristics. When used with its dedicated tablet PC and proprietary software, it enables real-time profile analysis and data management.
Basic Parameters
Key Featuers
Profile Measurement
Used for measuring rail profiles on tracks, as well as switch points, stock rails, and crossing noses in turnout areas.
Profile Analysis
Capable of calculating vertical and lateral rail wear, and analyzing wheel-rail equivalent conicity and contact compatibility.
Profile Deviation Correction
The software automatically corrects profile deviations caused by installation and positioning errors.
Automatic Data Upload
Measurement data can be automatically uploaded in batches to the WRPS database, facilitating centralized profile storage and management.
Technical Features
⚪ Detachable Measuring Head & Carbon Fiber Telescopic Rod: Ensures high positioning accuracy, portability, and ease of carrying.
⚪ Dual Wireless/Wired Connection: Offers flexible and convenient on-site operation.
⚪ Side-Insert Aviation Connector: Provides highly reliable data cable connection.
⚪ Hollow-Shaft Encoder & Full-Titanium Alloy Construction: Delivers a compact structure with high strength and excellent corrosion resistance.
⚪ Comprehensive Software Suite: Features data upload and management, rail wear calculation, and wheel-rail contact characteristic analysis.Sample Content
Reports
CE
CE Certification
NIM
China National institute of Metrology Calibration Certificate
CRCC
CRCC Certification
