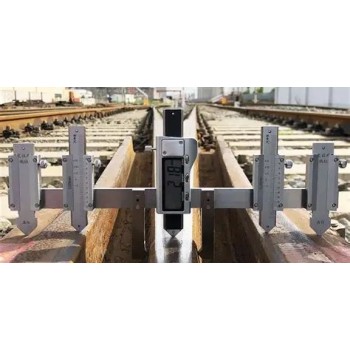

Digital Display Frog Wear Gauge
group nameOthers
-
Min Order1 piece
brand nameRailway Maintenance Equipment & Solutions
modelKD-ZCX01
payment methodT/T, L/C, D/P D/A
-
update timeThu, 19 Feb 2026 22:36:12 GMT
Packging & Delivery
Min Order1 piece
Briefing
The KD-ZCSX01 Frog Wear Gauge is a wear measurement instrument.
Detailed
Overview

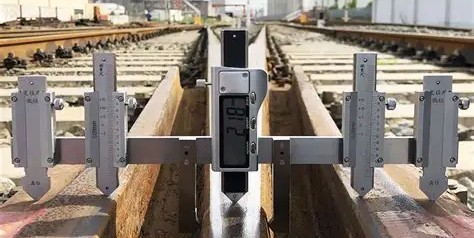

The KD-ZCSX01 Frog Wear Gauge is a wear measurement instrument. This gauge uses the unworn surfaces on both sides of the frog's wing rails as the reference plane for wear measurement. On the measured cross-section, the maximum distance between the inner positioning points at the lower ends of the vertical positioning rods at both ends of the support beam should be less than or equal to the distance between the intersection points of the outer edges of the unworn surfaces of the frog's two wing rails and that measured cross-section. Simultaneously, the minimum distance between the inner positioning points at the lower ends of the vertical positioning rods at both ends of the support beam should be greater than the distance between the intersection points of the inner edges of the unworn surfaces of both wing rails and that measured cross-section.
Basic Parameters
⚪ Vertical Wear (mm): 30mm (±15mm);
⚪ Side Wear (mm): 30mm (±15mm);
⚪ Instrument Accuracy (mm): 0.1mm;
⚪ Reading Precision (mm): 0.1mm;
⚪ Repeatability Error (mm): 0.1mm.
Product Features
⚪ Accurate measurement;
⚪ High precision;
⚪ Quick and convenient to use, offering good economic benefits.
