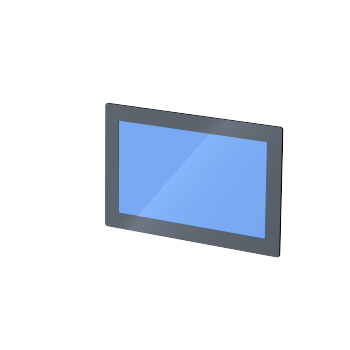

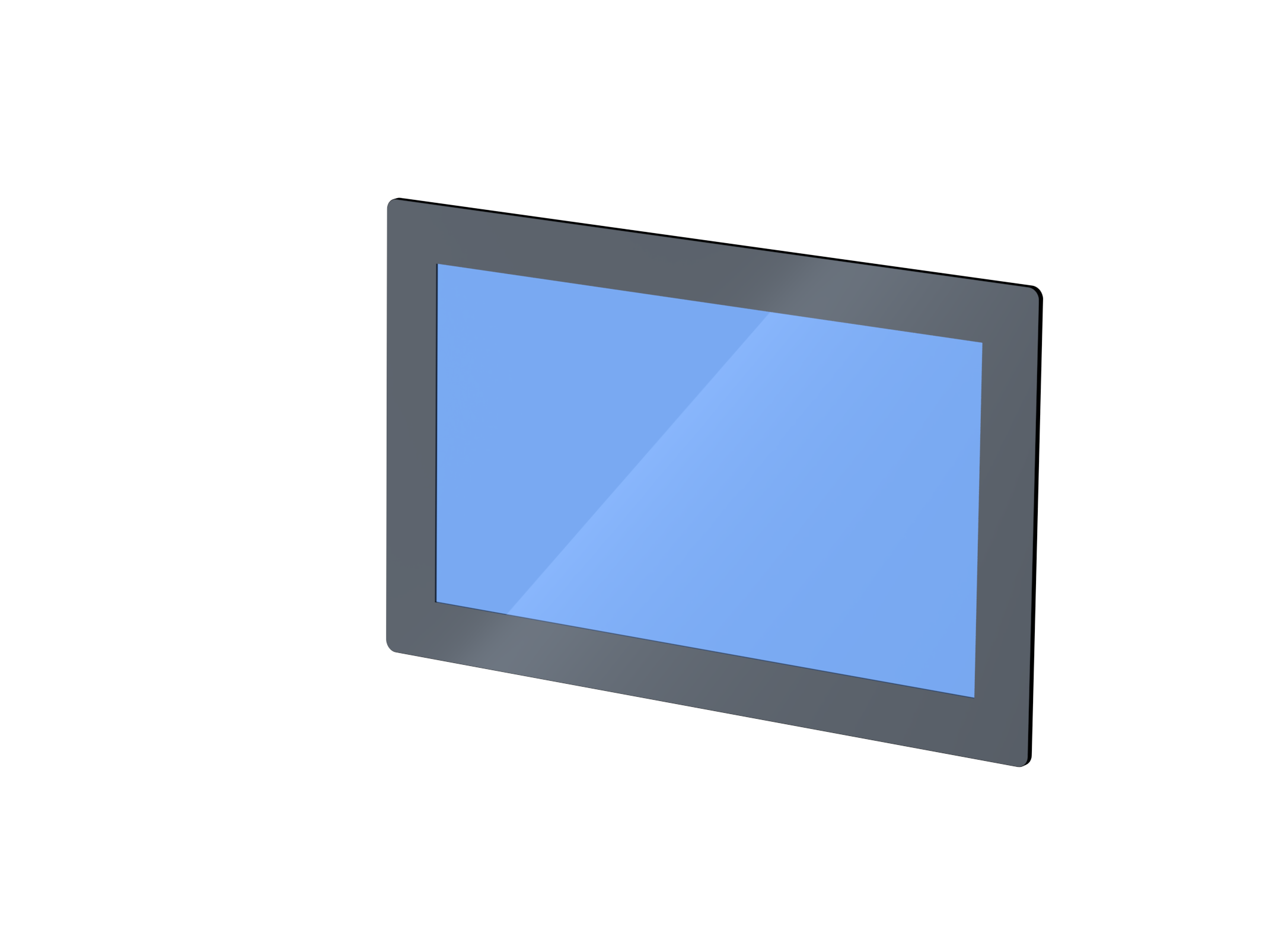

7.0" Rugged Industrial PCAP Touchscreen – 850 nits Sunlight-Readable, Wide Temp (-30~80°C)
group name4.3"-12.1"Family Touch Display Module
-
Min Order1 piece
brand nameJuTouch
modelJT070TM023-V1
payment methodT/T, L/C, PayPal
-
update timeTue, 22 Sep 2026 17:19:45 GMT
Paramtents
Resolution 1024×600 (RGB)
High brightness 850 cd/m² (Typical)
LCD Interface LVDS
Operating temperature -30°C to +80°C
Storage temperature -40°C to +85°C
Bonding Technique Optical Bonding
CTP Interface USB/I2C
CTP IC EXC81W32
Packging & Delivery
Min Order1 piece
Briefing
Rugged 7.0" sunlight-readable LCD display with up to 850 nits brightness.
Detailed
7.0" Rugged Industrial PCAP Touchscreen with up to 850 nits brightness. Features optical bonded capacitive touch technology, 10-point multi-touch capability, wide operating temperature range from -30°C to +80°C, and 6H surface hardness. Supports USB and I²C touch interfaces, making it ideal for industrial HMI, EV charging stations, medical equipment, outdoor terminals, and automation systems.
1. Drawing
2. Specifications
2.1 General Specifications
2.1.1 Definition
The specification is used for capacitive touch module with TFT LCD & Backlight Unit.
2.1.2 Features and General Description
2.2 Pin assignment
2.2.1 LCD Pin assignment
CN1 Module Side Connector : STM MSBKT2407P30 or Compatible
User Side Connector : JAE FI-X30H
2.2.2 CTP Pin assignment
CN2 Module Side Connector : Molex 53216-1071 or Compatible
User Side Connector : Molex 51021-1000
2.3 Absolute Maximum Ratings
2.4 Optical Characteristics
3 Applications
Industrial Automation HMI
EV Charing Station
Outdoor self-service devices
