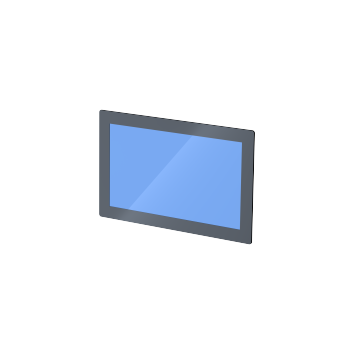

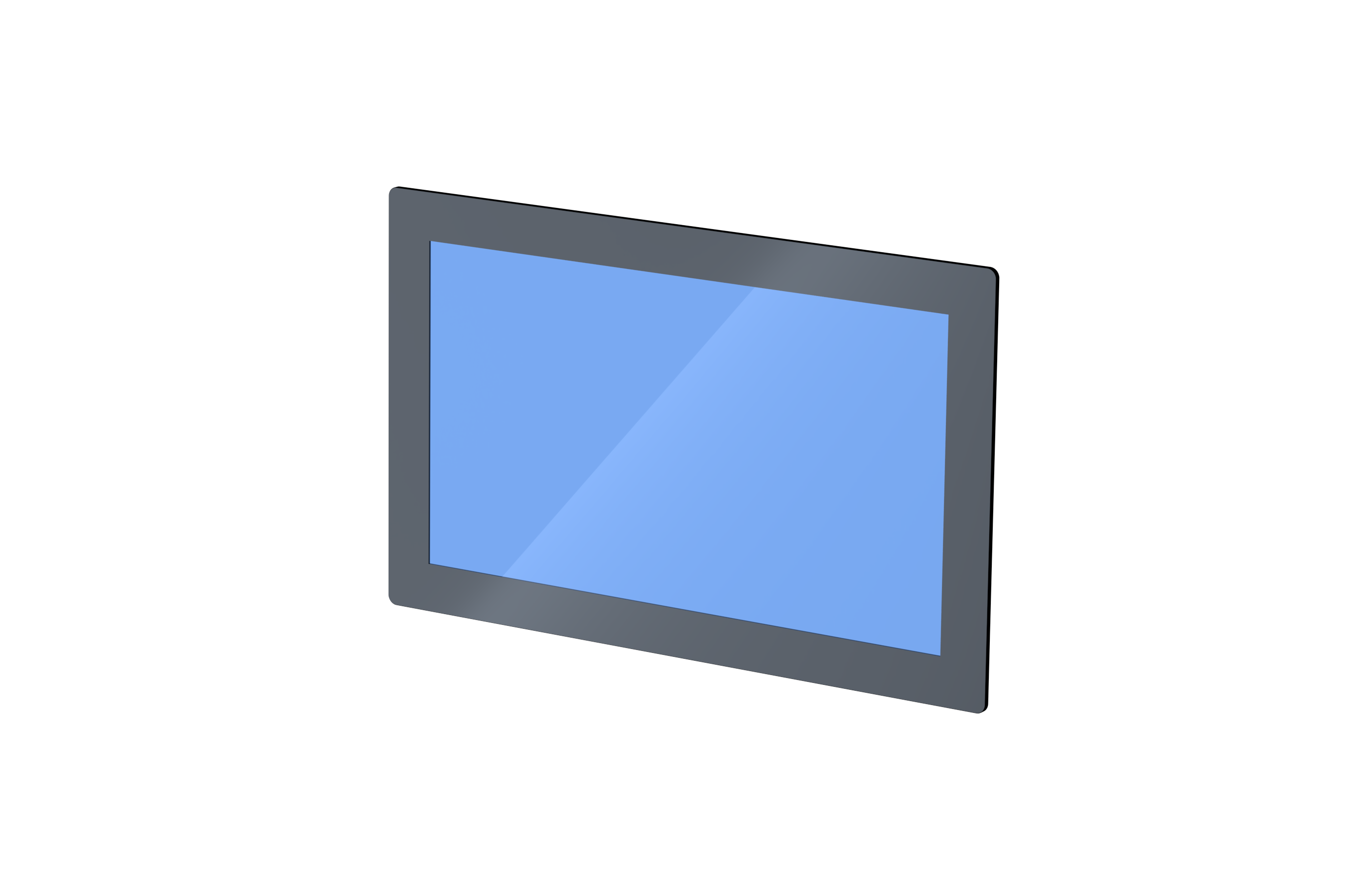

8.0" Rugged Industrial PCAP Touchscreen – 1000 nits Sunlight-Readable, Optical Bonded, LVDS
group name4.3"-12.1"Family Touch Display Module
-
Min Order1 piece
brand nameJuTouch
modelJT080TM002-V1
payment methodT/T, L/C, PayPal
-
update timeTue, 22 Sep 2026 17:30:25 GMT
Paramtents
Resolution 1280×720 (RGB)
High brightness 1000 cd/m² (Typical)
LCD Interface LVDS
Operating temperature -30°C to +85°C
Storage temperature -40°C to +85°C
Bonding Technique Optical Bonding
CTP Interface USB/I2C
CTP IC EXC81W32
Packging & Delivery
Min Order1 piece
Briefing
The JT080TM002-V1 is an industrial-grade 8.0-inch capacitive touch display designed for demanding environments.
Detailed
The JT080TM002-V1 is an industrial-grade 8.0" Rugged Industrial PCAP Touchscreen designed for demanding environments. Featuring a high-brightness 1000-nit TFT LCD, optical bonding technology, and 10-point projected capacitive touch, it delivers excellent readability under direct sunlight while maintaining reliable touch performance.
With a wide operating temperature range of -30°C to +85°C, LVDS display interface, and USB/I²C touch communication, this display is ideal for outdoor kiosks, EV chargers, industrial automation equipment, medical devices, marine electronics, and smart agriculture systems.
1. Drawing
2. Specifications
2.1 General Specifications
2.1.1 Definition
The specification is used for capacitive touch module with TFT LCD & Backlight Unit.
2.1.2 Features and General Description
2.2 Pin assignment
2.2.1 LCD Pin assignment
CN1 Module Side Connector : STM MSBKT2407P30 or Compatible
User Side Connector : JAE FI-X30H
2.2.2 CTP Pin assignment
CN2 Module Side Connector : Molex 53216-1071 or Compatible
User Side Connector : Molex 51021-1000
2.3 Absolute Maximum Ratings
2.4 Optical Characteristics
3 Applications
Industrial Automation HMI
EV Charing Station
Outdoor self-service devices
