13.3" Industrial PCAP Touchscreen,850 nits Sunlight-Readable, LVDS, USB/I2C/RS232
group name13.3"-32"Family Touch Display Module
-
Min Order1 piece
brand nameJuTouch
modelJT133TM005-V1
payment methodT/T, L/C, PayPal
-
update timeTue, 22 Sep 2026 15:38:08 GMT
Paramtents
Resolution 1920×1080(RGB)
High brightness 850cd/m² (Typical)
LCD Interface LVDS
Operating temperature -20°C to +70°C
Storage temperature -30°C to +80°C
Bonding Technique OCA Bonding
CTP Interface USB / I2C / RS232
CTP IC EXC81H84
Packging & Delivery
Min Order1 piece
Briefing
13.3" sunlight-readable LCD display with up to 850 nits brightness.
Detailed
13.3" Industrial PCAP Touchscreen with up to 850 nits brightness. Features OCA-bonded capacitive touch technology, 10-point multi-touch capability, wide operating temperature range from -20°C to +70°C, and 6H surface hardness with anti-glare treatment. Supports USB, I²C, and RS232 touch interfaces, making it ideal for industrial HMI, EV charging stations, medical equipment, outdoor terminals, and automation systems.
Whether you need a single component or a complete human-machine interaction system, we're ready to support you from the first sample batch.

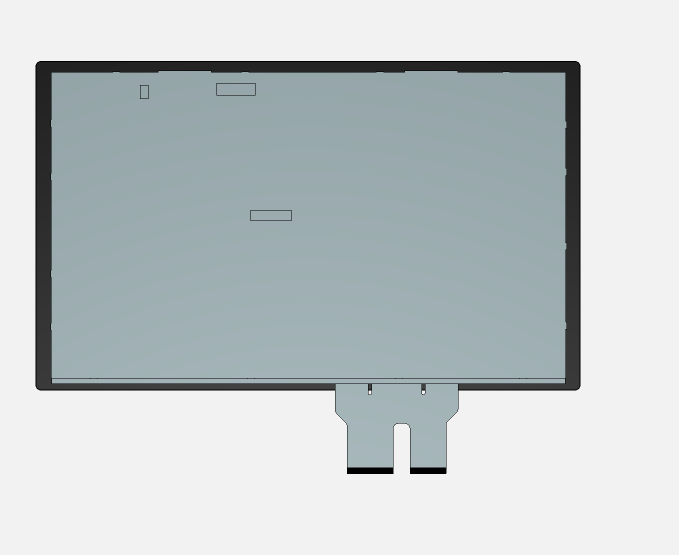

1. Drawing
2. Specifications
2.1 General Specifications
2.1.1 Definition
The specification is used for capacitive touch module with TFT LCD & Backlight Unit.
2.1.2 Features and General Description
2.2 Pin assignment
2.2.1 LCD Pin assignment
2.2.2 CTP Pin assignment
2.3 Absolute Maximum Ratings
2.4 Optical Characteristics
3 Applications
Industrial Automation HMI
EV Charing Station
Outdoor self-service devices
