3.5-inch QVGA TFT-LCD Display Module (500 cd/m²)
group nameStandard Industrial LCD Display
-
Min Order1 piece
brand nameJuTouch
modelJT035QVI40T5R05
payment methodT/T, L/C, PayPal
-
update timeTue, 22 Sep 2026 16:18:39 GMT
Paramtents
Size 3.5-inch
Resolution 320 × 240
luminance 500 cd/m²
Packging & Delivery
Min Order1 piece
Briefing
3.5-inch QVGA TFT-LCD Display Module (500 cd/m²) | Standard Industrial LCD Display | JuTouch
Detailed
Display Panel and Structure: The JT035QVI40T5R05 is a 3.5-inch color TFT-LCD display module. Display mode: Normally Black; Active area: 70.08 × 52.56 mm; Module outline: 76.9 x 63.9 x 3.0 mm. The panel delivers a resolution of 320 × 240 with accurate color reproduction, suitable for information-dense industrial and commercial interfaces.
Optical Characteristics: Central luminance reaches 500 cd/m²; contrast ratio 800:1; viewing direction TBD. The high-brightness LED backlight ensures clear readability under strong ambient light.
Driver and Interface: The module is driven through a RGB24BIT interface, accepting standard video input signals with integrated timing control, supporting plug-and-play integration into customer systems.
Environmental and Reliability: Operating temperature range -20 ~ 70 ℃; storage temperature range -30 ~ 80 ℃. The module has passed rigorous high/low temperature storage, thermal shock, vibration and humidity reliability tests, making it well suited for harsh industrial environments.

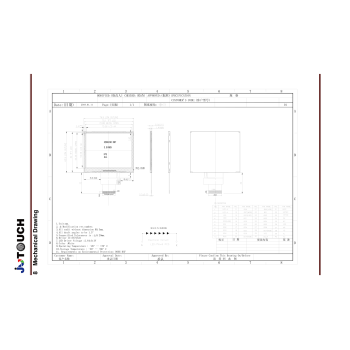

Mechanical Drawing:
