3.5-inch VGA TFT-LCD Display Module (360 cd/m²)

Display Panel and Structure: The JT035VGI30T3M02 is a 3.5-inch color TFT-LCD display module. Display mode: Normally Black, Transmissive; Active area: 70.08 × 52.56 mm; Module outline: 76.9 × 63.9 × 3.05 mm. The panel delivers a resolution of 640 × 480 with accurate color reproduction, suitable for information-dense industrial and commercial interfaces.

Optical Characteristics: Central luminance reaches 360 cd/m²; contrast ratio 800:1; viewing direction TBD. The high-brightness LED backlight ensures clear readability under strong ambient light.

Driver and Interface: The module is driven through a MIPI interface, accepting standard video input signals with integrated timing control, supporting plug-and-play integration into customer systems.

Environmental and Reliability: Operating temperature range -20 ~ 70 ℃; storage temperature range -30 ~ 80 ℃. The module has passed rigorous high/low temperature storage, thermal shock, vibration and humidity reliability tests, making it well suited for harsh industrial environments.

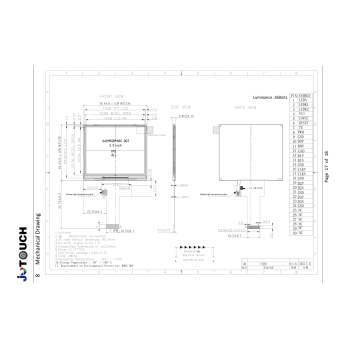

Mechanical Drawing:
