3.0-inch QVGA TFT-LCD Display Module (280 cd/m²)

Display Panel and Structure: The JT030QVI40M2R01 is a 3.0-inch color TFT-LCD display module. Display mode: Normally Black, Transmissive; Active area: 65.52 × 36.84 mm; Module outline: 75.31 × 43.44 × 2.65 mm. The panel delivers a resolution of 320 × 240 with accurate color reproduction, suitable for information-dense industrial and commercial interfaces.

Optical Characteristics: Central luminance reaches 280 cd/m²; contrast ratio 1500:1; viewing direction ALL. The high-brightness LED backlight ensures clear readability under strong ambient light.

Driver and Interface: The module is driven through a RGB interface, accepting standard video input signals with integrated timing control, supporting plug-and-play integration into customer systems.

Environmental and Reliability: Operating temperature range -20 ~ 70 ℃; storage temperature range -30 ~ 80 ℃. The module has passed rigorous high/low temperature storage, thermal shock, vibration and humidity reliability tests, making it well suited for harsh industrial environments.

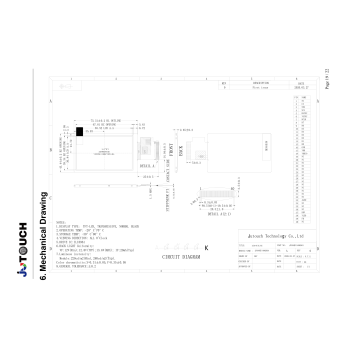

Mechanical Drawing:
