5.0" TFT LCD Capacitive Touch Screen Module
group nameStandard Touch Display
-
Min Order1 piece
brand nameJuTouch
modelJT050TM014-V1.0
payment methodT/T, L/C, PayPal
-
update timeTue, 22 Sep 2026 23:07:02 GMT
Paramtents
Resolution 800x480 (RGB)
High brightness 250 cd/m²
LCD Interface RGB 24bits
Operating temperature -20 to 70℃
Storage temperature -30 to 80℃
Bonding Technique Air bonding
CTP Interface I2C
Packging & Delivery
Min Order1 piece
Briefing
5.0" TFT LCD Capacitive Touch Screen Module
Detailed
The JT050TM014-V1.0 is a 5.0-inch TN TFT-LCD capacitive touch screen module featuring 800x480 resolution. It uses a G+G+LCD stack with Air bonding, protected by a soda-lime glass, chemically strengthened cover glass rated at ≥6H surface hardness. The projected-capacitive touch controller GT911 (COF) supports 5-point multi-touch and communicates over I2C. The LCD video interface is RGB. The module delivers typical brightness of 200/250 cd/m² (min/typ, without CTP), an operating/storage temperature range of -20 to 70 °C / -30 to 80 °C, and a Normally White panel. Backlight VF 16.8-21 V / IF 40 mA; product label and QR code.

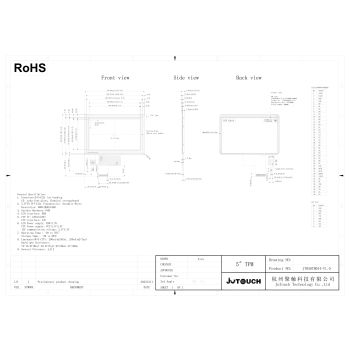

1. Drawing
