5.0" TFT LCD Capacitive Touch Screen Module
group nameStandard Touch Display
-
Min Order1 piece
brand nameJuTouch
modelJT050TM013-V2.0
payment methodT/T, L/C, PayPal
-
update timeTue, 22 Sep 2026 19:30:15 GMT
Paramtents
Resolution 800x480 (RGB)
High brightness 250 cd/m²
LCD Interface RGB 24bits
Operating temperature -20 to 70℃
Storage temperature -30 to 80℃
Bonding Technique Air bonding
CTP Interface I2C
Packging & Delivery
Min Order1 piece
Briefing
5.0" TFT LCD Capacitive Touch Screen Module
Detailed
The JT050TM019-V1 (Black) is a 4.95-inch IPS TFT-LCD capacitive touch screen module featuring 480x854 resolution. It uses a G+G+LCD stack with OCA bonding, protected by an Aluminium-silica glass, 0.7 mm cover glass rated at ≥6H surface hardness. The projected-capacitive touch controller GT911 (TX22xRX12) supports 5-point multi-touch and communicates over I2C. The LCD video interface is SPI+RGB 24bits. The module delivers typical brightness of 400/450 cd/m² (min/typ), an operating/storage temperature range of -20 to 70 °C / -30 to 80 °C, and a Normally Black panel. LED lifetime 50,000 hours.

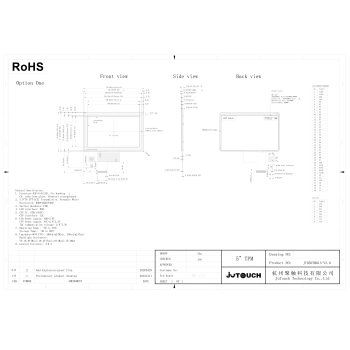

1. Drawing
