7.0" TFT LCD Capacitive Touch Screen Module
group nameStandard Touch Display
-
Min Order1 piece
brand nameJuTouch
modelJT070TM005-V2
payment methodT/T, L/C, PayPal
-
update timeTue, 22 Sep 2026 20:42:07 GMT
Paramtents
Resolution 800x480 (RGB)
High brightness 900 cd/m²
Operating temperature -30-85°C
Storage temperature -40-90°C
Bonding Technique Optical bonding
LCD Interface RGB
CTP Interface I2C
Packging & Delivery
Min Order1 piece
Briefing
7.0" TFT LCD Capacitive Touch Screen Module
Detailed
The JT070TM005-V2 is a 7.0-inch TFT-LCD capacitive touch screen module featuring 800x480 resolution. It uses a G(AG)+G stack with Optical bonding, protected by 6.0 mm cover lens (3.2+2.8 mm) / 0.55 mm sensor glass rated at ≥6H surface hardness. The projected-capacitive touch controller EXC80W32 supports 5-point multi-touch and communicates over I2C. The LCD video interface is RGB 24bit. The module delivers typical brightness of 800/900 cd/m² (min/typ), an operating/storage temperature range of -30 to 85 °C / -40 to 90 °C, and a Normally Black panel. Anti-glare etched finish; ≥85% transmittance.

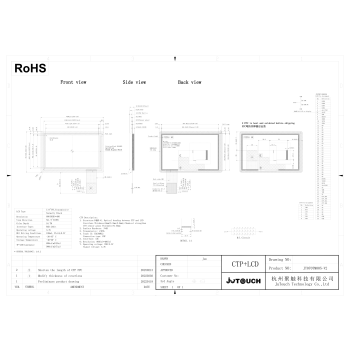

1. Drawing
