7.0" TFT LCD Capacitive Touch Screen Module
group nameStandard Touch Display
-
Min Order1 piece
brand nameJuTouch
modelJT070TM002-V3.0
payment methodT/T, L/C, PayPal
-
update timeTue, 22 Sep 2026 23:06:57 GMT
Paramtents
Resolution 1024x600
High brightness 600 cd/m²
Operating temperature -20 to 70℃
Storage temperature -30 to 80℃
Bonding Technique Air bonding
CTP Interface I2C
Packging & Delivery
Min Order1 piece
Briefing
7.0" TFT LCD Capacitive Touch Screen Module
Detailed
The JT070TM002-V3.0 is a 7.0-inch TFT-LCD capacitive touch screen module featuring 1024x600 resolution. It uses a G+G stack with Air bonding, protected by 1.1 mm cover glass / 0.55 mm ITO sensor glass rated at ≥7H surface hardness. The projected-capacitive touch controller CYTMA568-70BUI58 supports 5-point multi-touch and communicates over I2C/5-wire. The module delivers typical brightness of 500/600 cd/m² (min/typ), and an operating/storage temperature range of -20 to 70 °C / -30 to 80 °C. 87% light transmittance; LCD part JT070WSI40M6L03.

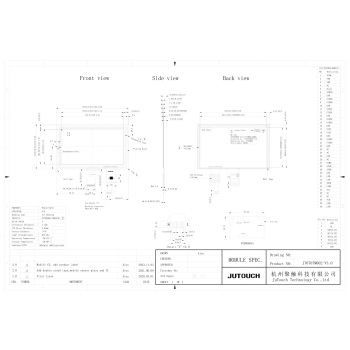

1. Drawing
