5.0" IPS TFT LCD Capacitive Touch Screen Module
group nameStandard Touch Display
-
Min Order1 piece
brand nameJuTouch
modelJT050TM016-V2
payment methodT/T, L/C, PayPal
-
update timeTue, 22 Sep 2026 21:24:04 GMT
Paramtents
Resolution 800x480 (RGB)
High brightness 900 cd/m²
LCD Interface LVDS
Operating temperature -30 to 80℃
Storage temperature -30 to 85℃
Bonding Technique OCA bonding
CTP Interface USB or I2C
Packging & Delivery
Min Order1 piece
Briefing
5.0" IPS TFT LCD Capacitive Touch Screen Module
Detailed
The JT050TM016-V2 is a 5.0-inch IPS TFT-LCD capacitive touch screen module featuring 800x480 resolution. It uses a G+G+LCD stack with OCA bonding, protected by a soda-lime glass, thermally tempered cover glass rated at ≥6H surface hardness. The projected-capacitive touch controller EXC81W32 (TX12xRX20) supports 5-point multi-touch and communicates over USB or I2C. The LCD video interface is LVDS. The module delivers typical brightness of 750/900 cd/m² (min/typ), an operating/storage temperature range of -30 to 80 °C / -30 to 85 °C, and a Normally Black panel.

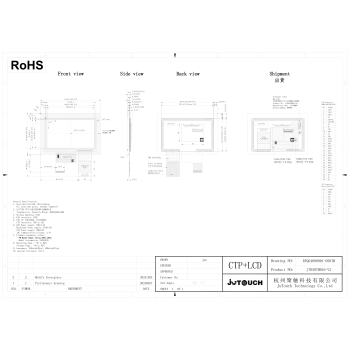

1. Drawing
