4.6" IPS TFT LCD Capacitive Touch Screen Module
group nameStandard Touch Display
-
Min Order1 piece
brand nameJuTouch
modelJT046TM001-V1
payment methodT/T, L/C, PayPal
-
update timeTue, 22 Sep 2026 19:30:14 GMT
Paramtents
Resolution 800x320 (RGB)
High brightness 400 cd/m²
LCD Interface RGB 24bits
Operating temperature -20 to 70℃
Storage temperature -30 to 80℃
Bonding Technique Air bonding
CTP Interface USB/I2C
Packging & Delivery
Min Order1 piece
Briefing
4.6" IPS TFT LCD Capacitive Touch Screen Module
Detailed
The JT046TM001-V1 is a 4.6" capacitive touch display module featuring 800×320 (RGB) resolution and an RGB 24-bit interface. Its structure is G+G+LCD with air bonding. It uses a 4.6" IPS TFT-LCD that is transmissive and normally black with 800×(RGB)×320 resolution, and has a surface hardness of ≥6H. The LCD interface is RGB 24-bit, while the CTP IC is GT911 with TX22×RX9 and the CTP interface is I2C with 5-point touch. The operation voltage is DC 3.3V (VCC) and 3.3V (I/O). The operating temperature is -20 to 70°C, the storage temperature is -30 to 80°C, the luminance (with CTP) is 320 cd/m² (min) and 400 cd/m² (typ), and the general tolerance is ±0.3.

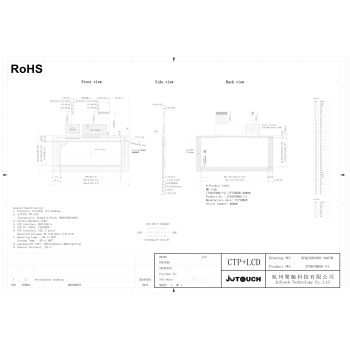

1. Drawing
