4.3" IPS TFT LCD Capacitive Touch Screen Module
group nameStandard Touch Display
-
Min Order1 piece
brand nameJuTouch
modelJT043TM002-V1
payment methodT/T, L/C, PayPal
-
update timeTue, 22 Sep 2026 18:30:17 GMT
Paramtents
Resolution 800x480 (RGB)
High brightness 680 cd/m²
LCD Interface LVDS
Operating temperature -30 to 80℃
Storage temperature -30 to 80℃
Bonding Technique Optical bonding
CTP Interface USB/I2C
Packging & Delivery
Min Order1 piece
Briefing
4.3" IPS TFT LCD Capacitive Touch Screen Module
Detailed
The JT043TM002-V1 is a 4.3-inch capacitive touch display module featuring 800×480 (RGB) resolution and an LVDS interface. Its structure is G+G+LCD with optical bonding, and the cover glass (CG) is soda-lime glass that is chemically strengthened. It uses a 4.3-inch IPS TFT-LCD (JT043WVI40D8R07) that is transmissive and normally black with 800×(RGB)×480 resolution, and has a surface hardness of ≥6H. The LCD interface is LVDS, while the CTP IC is EXC81W32 with TX11×RX19 and the CTP interface supports USB/I2C. The LCD power supply is VDD=3.3V, the backlight power supply is VLED=12V, the CTP power supply is VDD_5V=5V, and the I2C I/O signal voltage is 3.3V. The operating temperature is -30 to 80°C, the storage temperature is -30 to 80°C, the luminance is 540 cd/m² (min) and 680 cd/m² (typ), and the general tolerance is ±0.3.

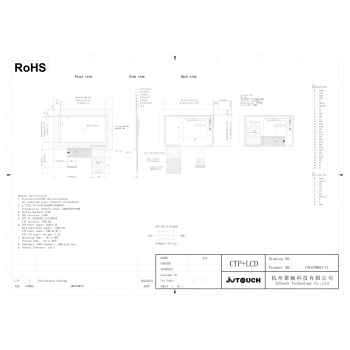

1. Drawing
