7.0" 1024x600 LVDS TFT LCD Display Module with Capacitive Touch Panel
group nameStandard Touch Display
-
Min Order1 piece
brand nameJuTouch
modelJT070TM008-V1.0
payment methodT/T, L/C, PayPal
-
update timeWed, 23 Sep 2026 10:12:04 GMT
Paramtents
Resolution 1024*600(RGB)
High brightness 300 cd/m²
Operating temperature -20 to 70°C
Storage temperature -30 to 80°C
Bonding Technique Optical bonding
LCD Interface LVDS
CTP Interface I2C
Packging & Delivery
Min Order1 piece
Briefing
7.0" TFT LCD Capacitive Touch Screen Module
Detailed
The JT070TM008-V1.0 is a 7.0-inch TFT-LCD capacitive touch screen module featuring 1280x800 resolution. It uses a G+G stack with Optical bonding, protected by 1.1 mm cover lens / 0.55 mm sensor glass, chemically strengthened rated at ≥6H surface hardness. The projected-capacitive touch controller EXC80W32 supports 5-point multi-touch and communicates over I2C. The LCD video interface is LVDS. The module delivers typical brightness of 270/340 cd/m² (min/typ), an operating/storage temperature range of -20 to 70 °C / -30 to 80 °C, and a Normally Black panel. Backlight VF 8.4-10.5 V / IF 140 mA.

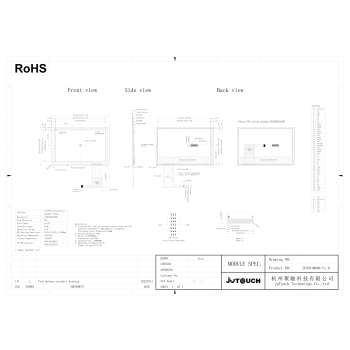

1. Drawing
