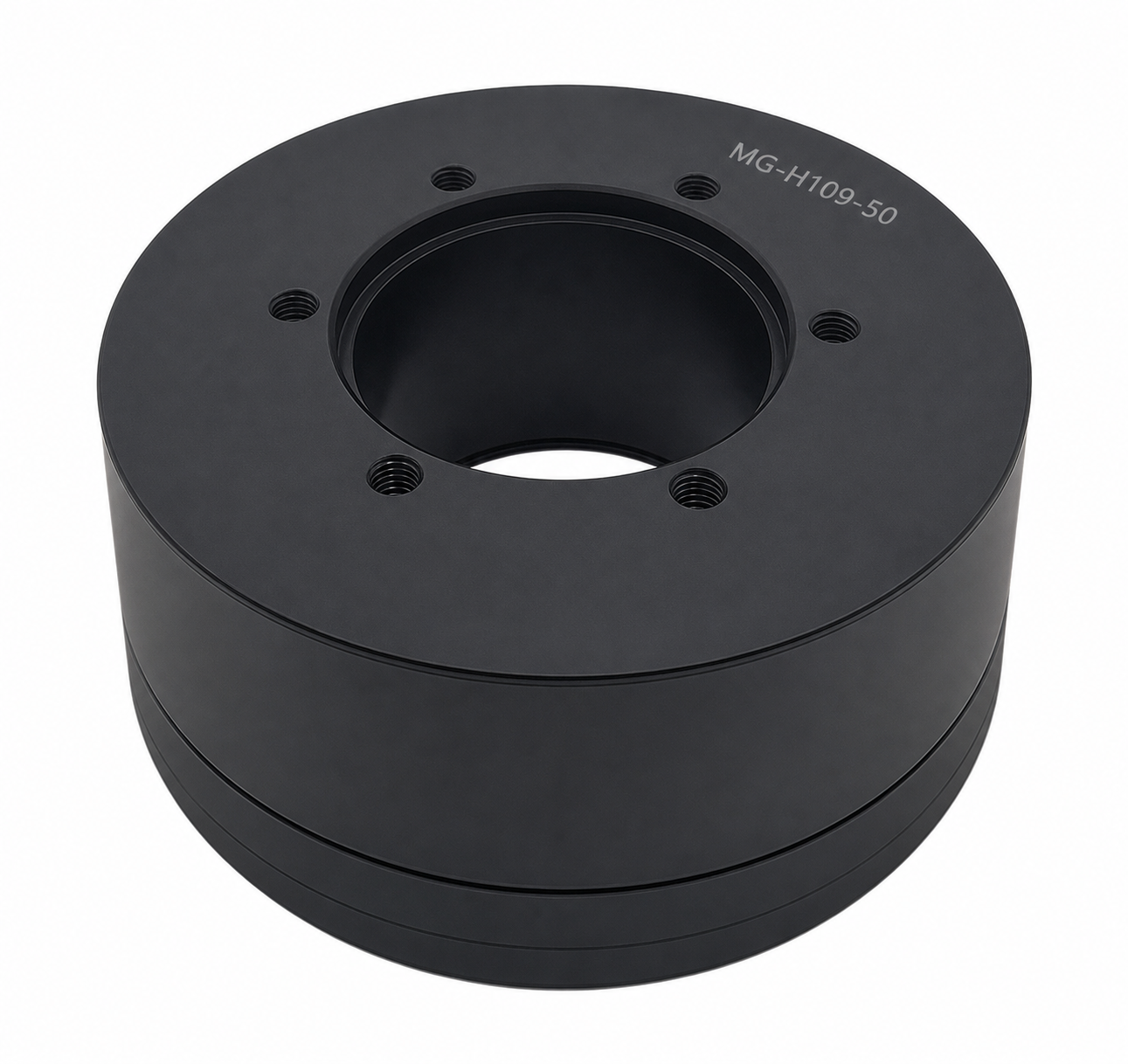

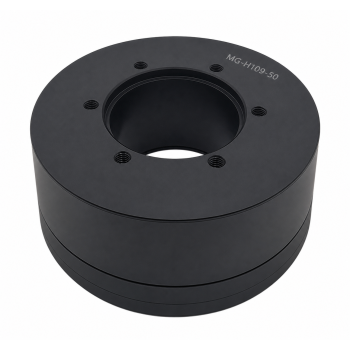

MG-H109-50 Hollow-Shaft Motor
group nameHollow-Shaft Motor
-
Min Order1 piece
brand nameSolismotor Custom Robot Joint Drives
-
update timeFri, 28 Aug 2026 18:25:27 GMT
Paramtents
Model MG-H109-50
Rated Torque 4N·m
Peak Torque 15N·m
Rated Power 384W
Encoder 20-Bit, Dual Support
Communication CAN / TTL Configuration
Protection IP54
Weight ~1130g
Repeatability ±0.004°
Packging & Delivery
Min Order1 piece
Briefing
Detailed
The MG-H109-50 is a high-torque hollow-shaft brushless servo motor designed for robot joints, precision rotary stages, optical equipment, and industrial automation systems.It integrates a high-torque brushless motor, servo driver, position-feedback system, and communication interfaces into a compact Ø109 × 49 mm housing. The motor features a Ø50 mm hollow bore, providing ample space for multiple power cables, communication wires, optical fibers, pneumatic lines, or mechanical components. Operating from 24–48 VDC, the MG-H109-50 delivers 4 N·m rated torque, 15 N·m peak torque, and 384 W rated power. Its high torque density, large through-bore, and precision closed-loop control make it suitable for demanding direct-drive rotary applications. The MG-H109-50 provides a minimum Ø50 mm hollow passage for routing multiple power cables, signal wires, optical fibers, pneumatic lines, or mechanical components through the rotation axis.The large hollow bore simplifies internal routing and reduces interference from external wiring, making it suitable for robot waist joints, optical systems, radar platforms, and complex rotary mechanisms. The motor delivers 4 N·m rated torque, providing reliable continuous output for robot joints, rotary stages, and automated rotary axes.Its direct-drive construction eliminates the need for an additional gearbox, avoiding mechanical backlash, transmission friction, and gear-related noise. The MG-H109-50 provides up to 15 N·m peak torque, supporting startup, rapid acceleration, position holding, and short-duration impact loads.The continuous current is below 8 A, while peak current can reach 40 A. The allowable duration of peak output depends on the driver’s current limit, power-supply capacity, cooling conditions, and ambient temperature. The specified repeatability and absolute positioning accuracy are both ±0.004°, making the motor suitable for precision positioning and angle-control applications.Its speed variation rate is below ±0.5%, while the specified speed resolution is 0.0001 Hz, supporting smooth and stable low-speed operation. The motor integrates a 20-bit single-turn absolute encoder, providing detailed angular feedback for position, speed, and torque control.The absolute encoder allows the controller to identify the single-turn rotor position at startup, reducing the need for conventional homing procedures. The specified operating noise is below 50 dB, making the motor suitable for laboratory equipment, optical instruments, service robots, and other noise-sensitive systems. Joint actuation for bipedal and full-body humanoid platforms Safe, precise motion for cobot arms and grippers Power assist and rehabilitation exoskeleton systems Robotics labs, university projects, and prototyping Surgical robots and rehabilitation equipment Automated guided vehicles and smart manufacturingMG-H109-50 Hollow-Shaft Motor
Product Advantages
Ø50 mm Large Hollow Bore
4 N·m Continuous Torque
15 N·m Peak Torque
±0.004° Positioning Accuracy
20-Bit Absolute Encoder
Low-Noise, Low-Maintenance Operation
Technical Specifications
Key Applications
Humanoid Robots
Collaborative Robots
Exoskeletons
Education & Research
Medical Assistants
Smart Automation
