Pipe Band Saw TPS1200 315MM-1200MM (12" IPS - 48" IPS)
group namePipe Band Saws
-
Min Order1 set
brand nameRIYANG
modelTPS1200
payment methodL/C, Western Union, T/T, Paypal
-
update timeSat, 06 Dec 2025 12:11:12 GMT
Paramtents
Certificate CE, ISO9001
Packing Material Plywood Pallet
MOQ 1set
Working Range in mm 315 mm - 1200 mm
Working Range in Inch 12" IPS - 48" IPS
Cutting Angle Range -45° - 67.5°
Packging & Delivery
Min Order1 set
Briefing
Riyang’s TPS1200 pipe cutting saw combines multi-angle versatility with rugged workshop reliability—an essential preparation tool before butt fusion welding.
Detailed
Overview

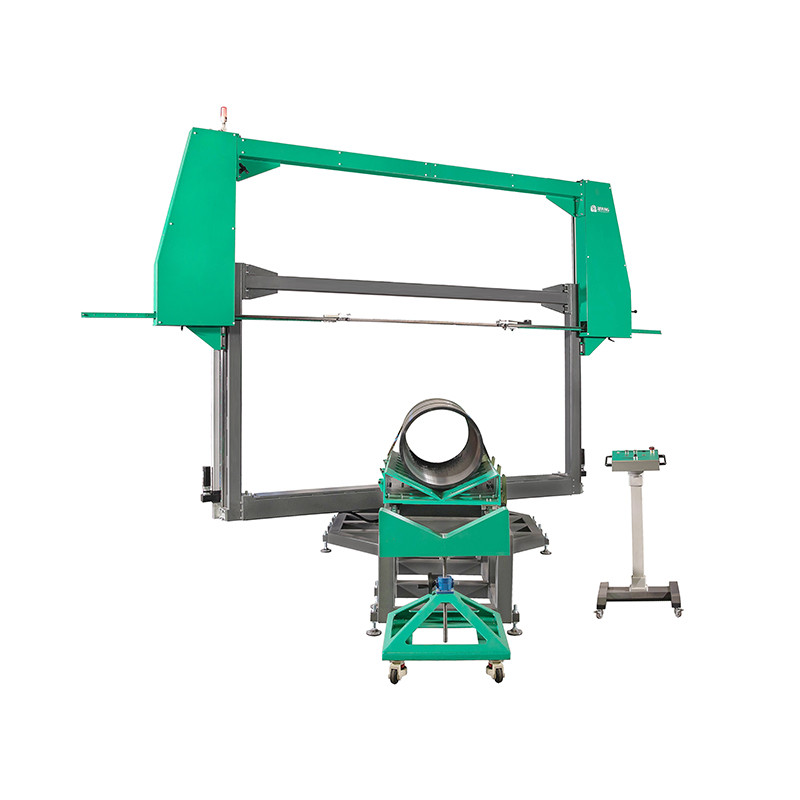

TPS1200 is an electric workshop band saw for thermoplastic materials (HDPE, PP, PVDF, PPR, PVC) pipes, with diameters ranging from 315mm to 1200mm. Thanks to the slewing bearings, the machine body can be easily moved manually. And the cutting angle is adjustable with precision from -45° to 67.5°. It could work ideally with an ATLA fittings fabrication machine for various kinds of fittings.
The equipment is provided with a mobile control panel, which gives the operator the chance to work at a safe distance from the cutting area. By the control panel, the operator can control the automatic movement of the saw (up/down) and also regulate the cutting speed.
Heavy-duty tie-down straps hold the pipe to be cut. Clamping the pipes in this manual way could avoid the risk of the pipe loosening during the cutting process.
|
Product Parameter
|
|||
|
Cutting Range
|
OD 315 mm - 1200 mm
|
Max. Cutting Angle
|
67.5º
|
Power Supply | 380 V, 3 P, 50/60 hz | Materials | HDPE, PP, PVDF, PPR, PVC |
Rated Power | 3.7 kw | Cutting Angle Error | ≤1° |
Line Speed | 0 - 255 m/min | Feeding Speed | Adjustable |
|
Footprint
|
450 cm * 500 cm
|
Net Weight |
1600 kg
|
Standard Composition
· Pipe supporting bed
· Straps used to clamp the main pipes
· Control panel with emergency stop
· Laser cut detection
· Special saw blade available for thick-walled pipe
· Pipe support
On Request
＋ Hydraulically clamping pipes
＋ Automatically adjusting cutting angle
＋ Automatically adjusting saw band guide
＋ Automatically feeding pipes
No Hydraulic Oil
A machine driven solely by electric cylinders, without hydraulic cylinders, eliminates the worries of oil leaking and need for hydraulic oil replacement, resulting in cleaner operation, lower maintenance, and improved energy efficiency.
Electric Cylinder
The electric cylinder facilitates high-speed, smooth movement of the saw carriage, significantly boosting travel speed and synchronizing accuracy while reducing operating noise, thereby enhancing overall equipment efficiency and creating a more comfortable work environment.
- 45° - 67.5°
This HDPE pipe cutting saw is engineered for efficiency and precision. It allows angle cutting from -45° to 67.5° simply by rotating the saw blade housing—no need to reposition the pipe. This greatly enhances cutting efficiency, especially when fabricating fittings such as WYE joints, making the operation faster, easier, and more labor-saving.
