Pipe Band Saw TPS450 90MM-450MM (3" IPS - 18" IPS)
group namePipe Band Saws
-
Min Order1 set
brand nameRIYANG
modelTPS450
payment methodL/C, Western Union, T/T, Paypal
-
update timeSat, 06 Dec 2025 05:09:47 GMT
Paramtents
Certificate CE, ISO9001
Packing Material Plywood Pallet
MOQ 1set
Working Range in mm 90mm - 450mm
Working Range in Inch 3" IPS - 18" IPS
Cutting Angle Range -45° - 67.5°
Packging & Delivery
Min Order1 set
Briefing
Ideal for workshop environments, the TPS450 multi-angle cutting machine enables clean and accurate cuts up to 67.5°, streamlining the production of elbows, tees, cross and wyes.
Detailed
Overview
TPS450 is an electric workshop band saw for thermoplastic material(HDPE, PP, PVDF, PPR, PVC) pipes from 90mm to 450mm in diameter. Thanks to the slewing bearings, the machine body can be easily moved manually. And the cutting angle is adjustable with precision from -45°to 67.5°. It could work ideally with the ATLA fittings fabrication machine for various kinds of fittings.
The equipment is provided with a remote control panel, which gives the operator the chance to work at a safe distance from the cutting area. By the control panel, the operator can control the automatic movement of the saw (up/down) and also regulate the cutting speed.
|
Product Parameter
|
|||
|
Cutting Range
|
OD 90 mm - 450 mm
|
Max. Cutting Angle
|
67.5º
|
Power Supply | 380V, 3P, 50/60 hz | Materials | HDPE, PP, PVDF, PPR, PVC |
Rated Power | 2.5 kw | Cutting Angle Error | ≤ 1° |
Line Speed | 0 - 255 m/min | Feeding Speed | Adjustable |
|
Footprint
|
180 cm * 200 cm
|
Net Weight |
780 kg
|
Standard Composition

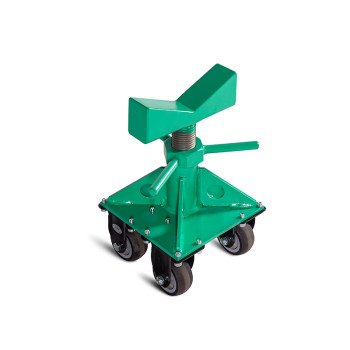

· Pipe supporting stand
· Control panel
· Saw body
· Clamping belt
On Request
＋Automatic angle adjustment
＋Pipe holding mechanic
Highlight Features
No Oil
A machine driven solely by electric cylinders, without hydraulic cylinders, eliminates the worries of oil leaking and need for hydraulic oil replacement, resulting in cleaner operation, lower maintenance, and improved energy efficiency.
Electric Cylinder
The electric cylinder facilitates high-speed, smooth movement of the saw carriage, significantly boosting travel speed and synchronizing accuracy while reducing operating noise, thereby enhancing overall equipment efficiency and creating a more comfortable work environment.
- 45° - 67.5°
This HDPE pipe cutting saw is engineered for efficiency and precision. It allows angle cutting from -45° to 67.5° simply by rotating the saw blade housing—no need to reposition the pipe. This greatly enhances cutting efficiency, especially when fabricating fittings such as WYE joints, making the operation faster, easier, and more labor-saving.
