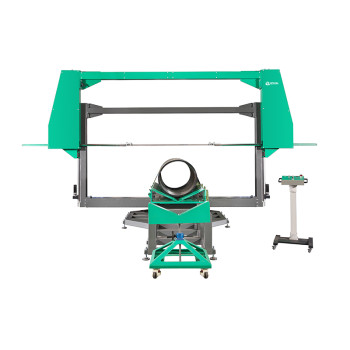

Pipe Band Saw TPS1000 315MM -1000MM (12" IPS - 42" IPS)
group namePipe Band Saws
-
Min Order1 set
brand nameRIYANG
modelTPS1000
payment methodL/C, Western Union, T/T, Paypal
-
update timeSat, 06 Dec 2025 15:03:51 GMT
Paramtents
Certificate CE, ISO9001
Packing Material Plywood Pallet
MOQ 1set
Working Range in mm 315mm-1000mm
Working Range in Inch 12"IPS - 42" IPS
Cutting Angle Range -45° - 67.5°
Packging & Delivery
Min Order1 set
Briefing
Compatible with a variety of pipe materials and diameters, the TPS1000 machine is essential for fabricating segmented fittings in infrastructure, mining, and waterworks projects.
Detailed
Overview

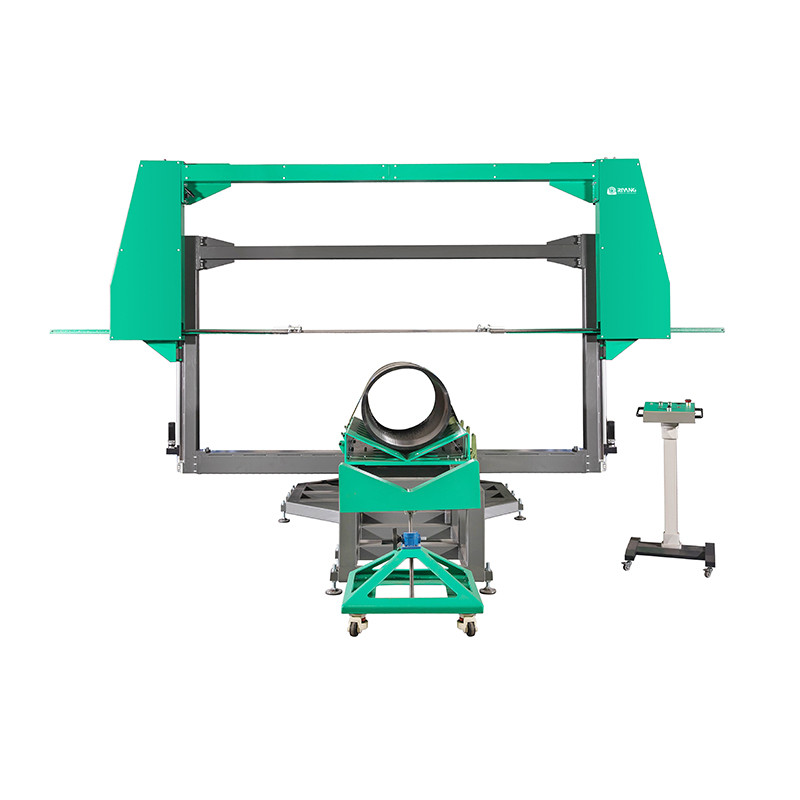

TPS1000 is a electric workshop band saw for thermoplastic material (HDPE, PP, PVDF, PPR, PVC) pipes from 315mm to 1000mm diameter. Thanks to the slewing bearings, the machine body can be easily moved manually. And the cutting angle is adjustable with precision from -45° to 67.5°. It could work ideally with an ATLA fittings fabrication machine for various kinds of fittings.
The equipment is provided with a mobile control panel, which gives the chance to the operator work at a safe distance from the cutting area. By the control panel, the operator can control the automatic movement of the saw (up/down) and also regulate the cutting speed.
The pipe to be cut is held by heavy-duty tie-down straps. Clamping the pipes in this manual way could avoid the risk of pipe loosing during the cutting progress.
|
Product Parameter
|
|||
|
Cutting Range
|
OD 315 mm - 1000 mm
|
Max. Cutting Angle
|
67.5º
|
Power Supply | 380 V, 3 P, 50/60 hz | Materials | HDPE, PP, PVDF, PPR, PVC |
Rated Power | 3.7 kw | Cutting Angle Error | ≤1° |
Line Speed | 0 - 255 m/min | Feeding Speed | Adjustable |
|
Footprint
|
450 cm * 500 cm
|
Net Weight |
1600 kg
|
Standard Composition
· Pipe supporting bed
· Straps used to clamp the main pipes
· Control panel with emergency stop
· Laser cut detection
· Special saw blade available for thick-walled pipe
· Pipe support
On Request
＋ Hydraulically clamping pipes
＋ Automatically adjusting cutting angle
＋ Automatically adjusting saw band guide
＋ Automatically feeding pipes
No Hydraulic Oil
A machine driven solely by electric cylinders, without hydraulic cylinders, eliminates the worries of oil leaking and need for hydraulic oil replacement, resulting in cleaner operation, lower maintenance, and improved energy efficiency.
Electric Cylinder
The electric cylinder facilitates high-speed, smooth movement of the saw carriage, significantly boosting travel speed and synchronizing accuracy while reducing operating noise, thereby enhancing overall equipment efficiency and creating a more comfortable work environment.
- 45° - 67.5°
This HDPE pipe cutting saw is engineered for efficiency and precision. It allows angle cutting from -45° to 67.5° simply by rotating the saw blade housing—no need to reposition the pipe. This greatly enhances cutting efficiency, especially when fabricating fittings such as WYE joints, making the operation faster, easier, and more labor-saving.
