Hydraulic Steel Pipe Roll Grooving Machine for 2 Inch to 8 Inch Steel Pipes (RG-3)
group nameHydraulic Roll Grooving
-
Min Order1 piece
brand nameGruvmaster & Welping
modelRG-3
payment methodL/C, D/A, D/P, Western Union, T/T
-
update timeFri, 05 Dec 2025 16:33:37 GMT
Paramtents
Fabrication Capacity (2"-4") 2"~4" (DN50~DN100, Φ60~Φ114) SCH10/40 Steel Pipe
Fabrication Capacity (5"-8") 5"~8" (DN125~DN200,Φ139~Φ219) SCH10/20 Steel Pipe
Max Wall Thickness 6mm
Output Speed 30RPM
Power Supply 800W
Packing Size 56*26*60cm
Gross Weight 50KG
Packging & Delivery
Size56cm x26cm x60cm
Weight50kg / piece
Min Order1 piece
Briefing
RG-3 roll grooving machine for 2 inch -8 inch steel pipe. Capable to adjust the machine height as needed on construction sites
Detailed
Steel Pipe Roll Grooving Machine Video

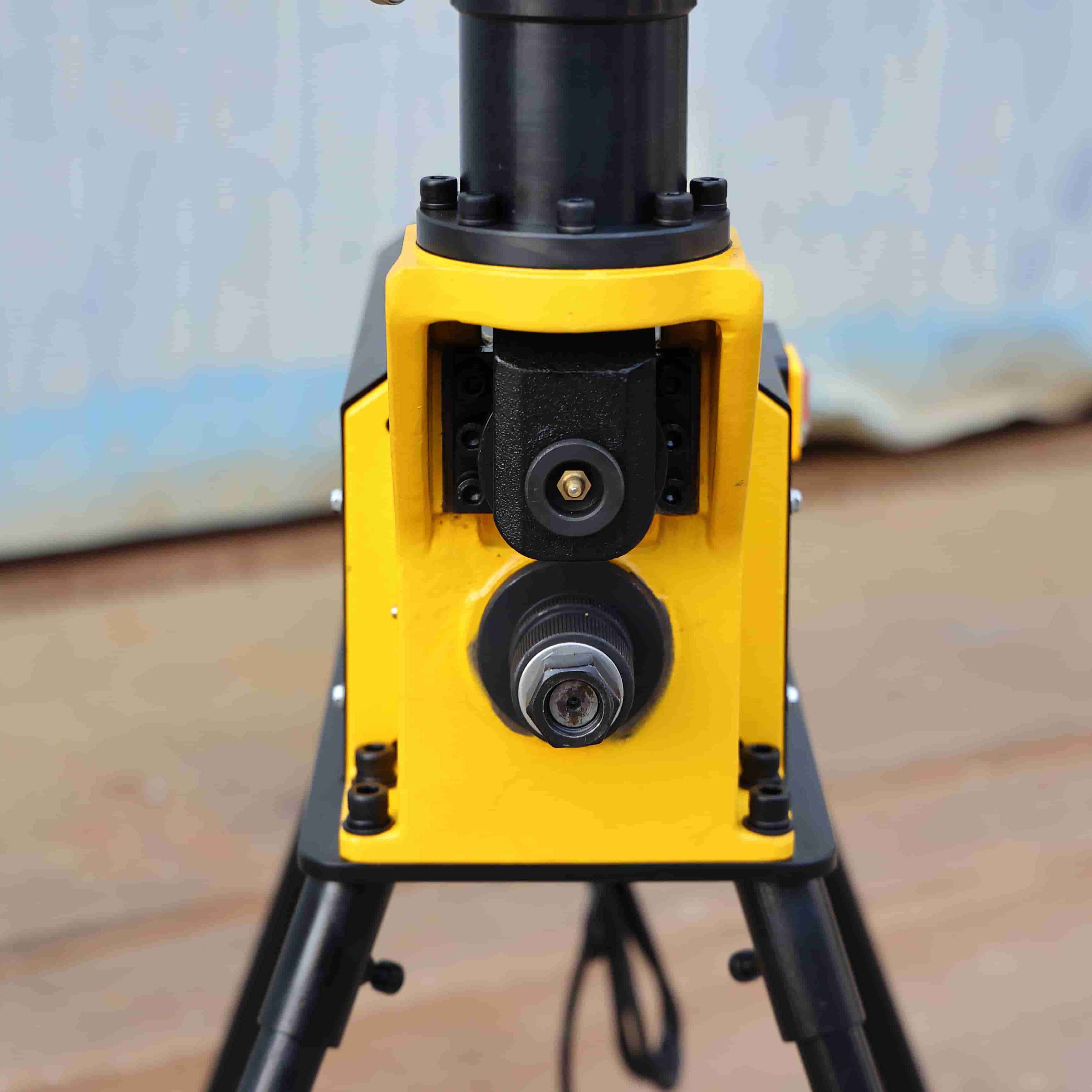

Steel Pipe Roll Grooving Machine
FEATURES OF ELECTRO-HYDRAULIC ROLLING GROOVER
● Model RG-3 light-duty Electric Hydraulic Roll Grooving Machine is designed to roll grooves on steel pipes and Stainless Steel.from 2"-8" (DN50~DN200) SCH10/SCH40.
● The lightweight and compact design of this product is a cost-effective solution that can help save investment on grooving tools.
● The integrated hydraulic feeding pump and groove depth lock nut ensure high quality grooves and high efficiency.
● Inbuilt high-performace gear reducing motor contributes compact size and low noise.
Steel Pipe Roll Grooving Machine Parameters
|
Model:
|
RG-3
|
|
Suitable materials:
|
Carbon steel; Stainess steel
|
|
Capacity:
|
2"-4" SCH10/40; 5"-8" SCH10/20
|
|
Power supply:
|
220V / 110V
|
|
Frequency:
|
50HZ / 60HZ
|
Motor power: | 800W |
Max wall thickness: | 6mm |
Output speed: | 30RPM |
Gross weight | 50kg |
Packing Size | 56*26*60cm |
Standard Parts
|
Catalog No.
|
Description
|
N.W (kg)
|
|
911074
|
Drive roller 2"~6" (Φ60~Φ168)
|
1.30
|
|
911075
|
Drive roller 8" (Φ219)
|
1.40
|
|
912018
|
Groove roller 2"~6" (Φ60~Φ168)
|
0.45
|
912032 | Groove roller 8" (Φ219) | 0.45 |
998028 | Pipe Stand for 2"~8" (Φ60~Φ219) | 2.20 |
Scenes To Be Used
Resources
Steel Pipe Roll Grooving Machine Configuration
Hydraulic pump
High quality seal parts ensure long-term field usage without leaking
Fine-machined cylinder with accurate sizes
Proper-hardened piston rod of long-life
Built-in groove depth adjusting rod
Casting part
Reinforced cast iron housing for hydraulic pump, roller sets, pipe stabilizer
Support color customization
Balanced structure withstands tough jobs
Roll Sets
Available in size: 2"-4" (DN50~DN100, Φ60~Φ114) SCH10/40 Steel Pipe 5"-8" (DN125~DN200, Φ139~Φ219) SCH10/20 Steel Pipe
Pipe Stand
Quick size adjustable rods, fine-machined slots with latch
Steel ball heads,for smooth rotation,forward-backward moving of pipe
Adjustable height to suit different size pipes: 2"-8"
Steel Pipe Roll Grooving Machine Comparition Chart
