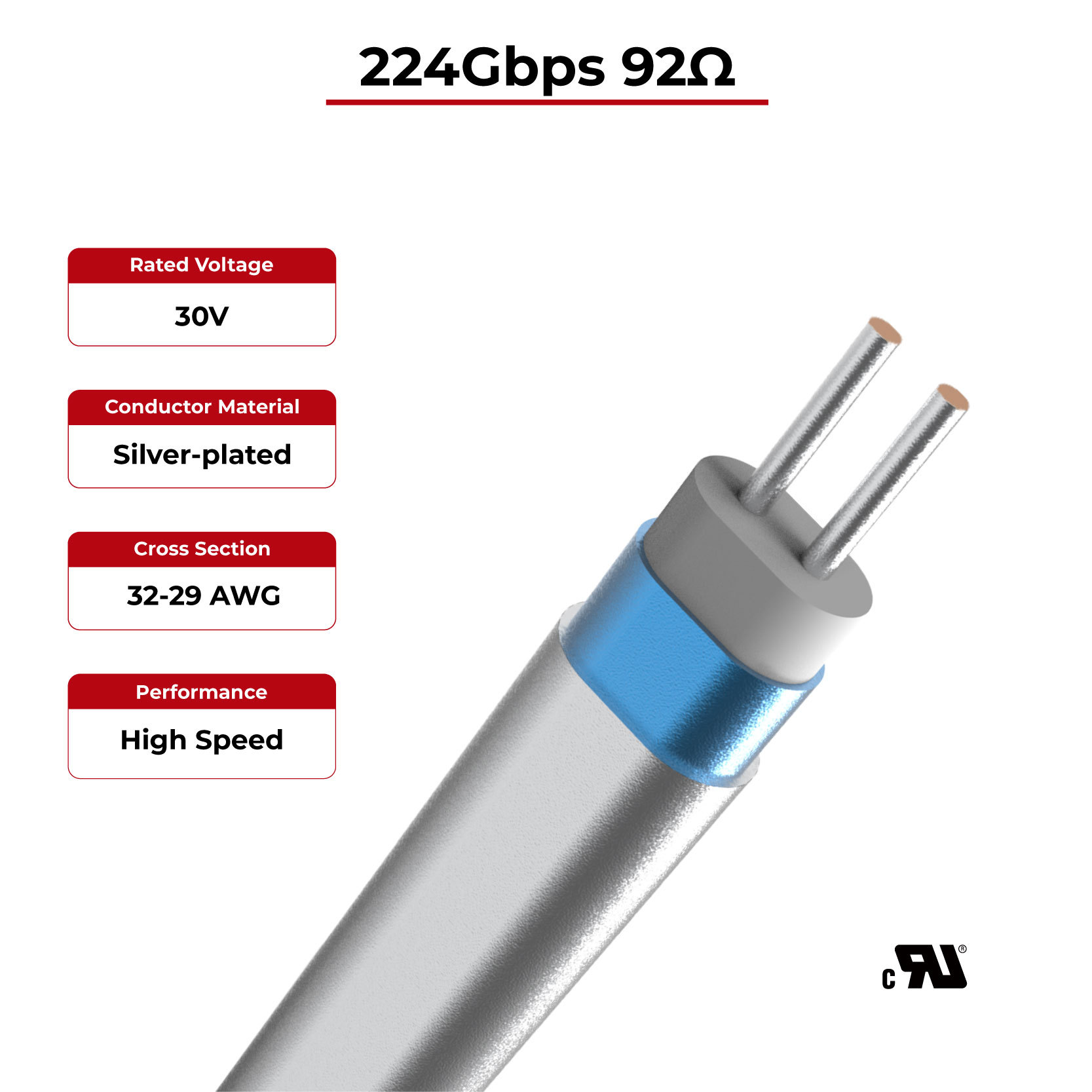

92Ω High Speed Cable 224Gbps UL Certified
group nameAI Interconnection Cable
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
model224Gbps
payment methodT/T, L/C
-
update timeTue, 25 Aug 2026 00:08:01 GMT
Paramtents
Rated temperature 80°C
Rated voltage 30V
Insulation FEP+FEP/PE FEP+ePTFE
Environmental Standards Compliance RoHS 2.0
File Number E522621
Supports Up to 67 GHz
Packging & Delivery
Min Order1 piece
Briefing
Conductor: 32AWG, 29AWG
Insulation: FEP+ePTFE/FEP+PE+CU
Insulation: FEP+ePTFE/FEP+PE+CU
Detailed
92Ω High Speed Cable 112Gbps Advantages
92Ω High Speed Cable 112Gbps
SUNKEAN is actively expanding into the high-speed cable sector, with products widely used in data centers, switches & routers, and servers.
· High Speed: Supports up to 224 Gbps per channel for fast data transmission
· Low Latency: No optical-electrical conversion needed; signals travel near light speed
· High Flame Retardant FT
· Low Loss: Silver-plated conductors and low-loss materials reduce energy loss
· Low Power: Passive copper design enables efficient, power-free transmission
92Ω High Speed Cable 112Gbps Technical Data
Insulation | FEP+ePTFE/FEP+PE+CU |
| Rated temperature | 80°C |
| Rated voltage | 30V |
| Ground Wire | No |
Environmental Standards Compliance | RoHS 2.0 |
File Number | E522621 |
92Ω High Speed Cable 112Gbps Product description
Cable Name |
Cross Section
(AWG) |
Insulation
| Insulation OD (mm) | Ground Cable | Cable O.D. (mm) | Insertion Loss (53.13GHz) | Delay |
92Ω High Speed Cable 224Gbps | 32 | FEP+ePTFE | 0.58 | No | 0.92*1.35 | 15dB | 7ps |
29 | FEP+PE+CU | 0.64 | No | 1.16*1.76 | 10.5dB | 7ps |
