Surface Protection
Tempering and suitable surface treatment help protect the display-facing assembly.
Flat Tempered Glass Capacitive Touch Screen - felix glass
FOB Price
- US $5.99
5 - 99 piece
- US $4.85
100 - 999 piece
- US $3.89
1000 - 4999 piece
- US $2.88
5000 - 9999 piece
group nameDisplay Cover Glass
-
Min Order5 piece
brand nameFELIX GLASS optical glass Manufacturing base
modelFG-GLASS-IND-NB-001
payment methodL/C, D/A, D/P, Western Union
-
update timeFri, 17 Jul 2026 19:29:05 GMT
Paramtents
Material Ultra-clear High‑Strength Tempered Glass
Size Private mold customization
Structure Type C Type / J Type
Shape Flat / Narrow Bezel / Rectangular
Application Industrial Touch Screen, HMI Panel, Industrial Monitor, Factory Equipment, Industrial
Thickness 1.1mm‑4.0mm (Customizable)
Surface Anti‑Glare, Anti‑Fingerprint, Wear‑Resistant, High Hardness
Packging & Delivery
Size50cm x50cm x30cm
Weight0.5kg / piece
Min Order5 piece
Briefing
High‑hardness industrial narrow bezel glass cover for industrial touch screen and HMI panel.
Detailed
Attention: industrial display protection

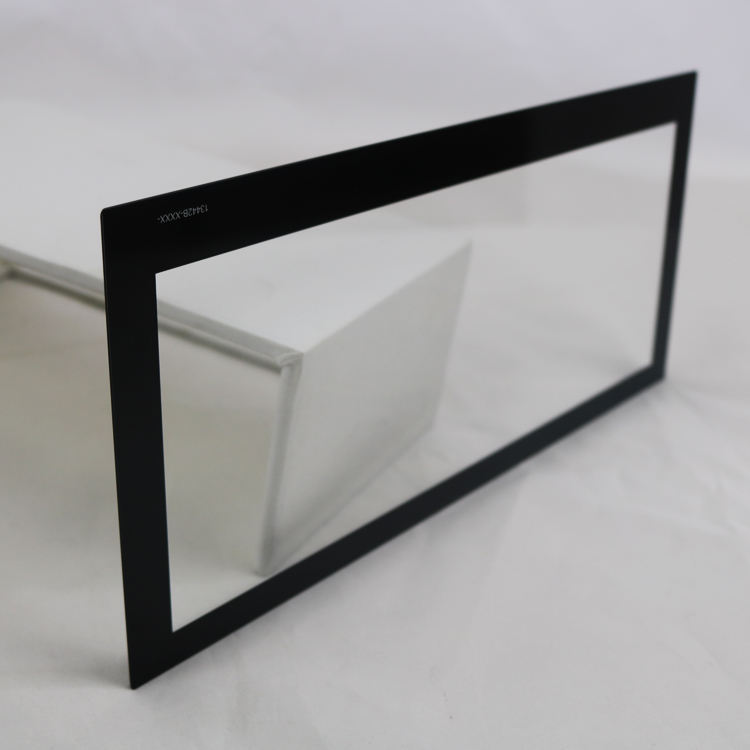

Flat Tempered Glass for Capacitive Touch Screens
Felix Glass Co., Limited supplies custom flat tempered cover glass for capacitive touch screens, industrial HMI panels, monitors, factory equipment, and related display assemblies. Model FG-GLASS-IND-NB-001 combines a flat narrow-bezel format with drawing-based size, thickness, edge, printing, and surface-treatment options.
Flat or narrow bezel1.1–4.0 mmC/J structure options
Direct answer
What Is Flat Tempered Capacitive Touch Screen Glass?
It is the protective glass positioned above a capacitive touch sensor and display. Tempering improves mechanical durability, while precise flatness, edge finishing, printed borders, and optional surface treatments help the glass fit the module and support frequent touch use.
This listing covers the glass component, not a complete powered touchscreen module. Final performance depends on the selected substrate, sensor stack, bonding method, enclosure, and operating environment.
Interest: original product data
Technical Specifications and Custom Range
| Model | FG-GLASS-IND-NB-001 | Material | Ultra-clear high-strength tempered glass |
|---|---|---|---|
| Thickness | 1.1–4.0 mm, customizable | Size | Private-mold and drawing-based customization |
| Structure | C type or J type | Shape | Flat, rectangular, or narrow-bezel format |
| Surface options | Anti-glare, anti-fingerprint, wear-resistant, high-hardness treatments | Applications | Industrial touchscreen, HMI, monitor, and factory equipment |
Material selection
Tempered Glass Built Around the Display Stack
Material and strengthening should be selected together with panel size, thickness, edge geometry, openings, printing, optical requirements, and expected impact or cleaning exposure. The finished cover glass must also match the adhesive and capacitive sensor configuration.
Drawing-Based Fit
Outline, radius corners, holes, slots, and visible windows can be coordinated.
Touch Integration
Glass thickness and coating choices are reviewed for the intended touch stack.
Surface configuration
Anti-Glare, Anti-Fingerprint, and Wear-Resistant Options
Anti-Glare
AG treatment can reduce distracting reflections where bright ambient light affects display readability.
Anti-Fingerprint
AF treatment can improve wiping behavior on frequently touched interfaces.
Wear Resistance
Surface hardness and abrasion requirements should be defined from the cleaning method and service environment.
Mechanical design

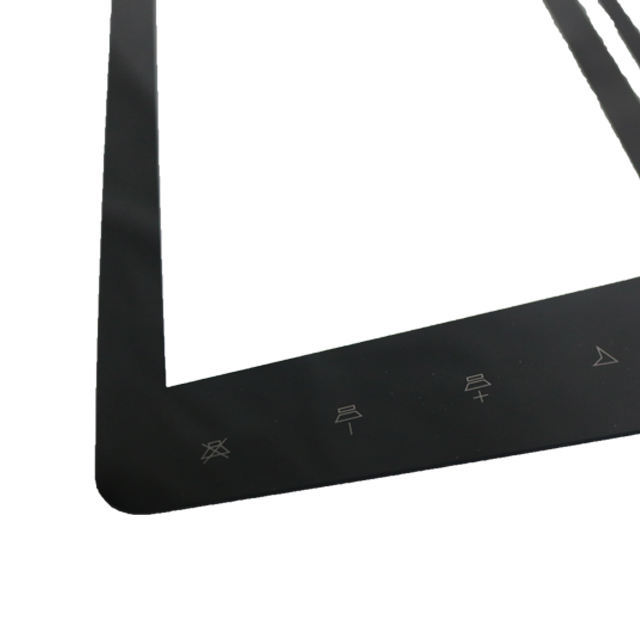

C-Type, J-Type, and Narrow-Bezel Customization
C-type and J-type configurations can be reviewed for the customer’s enclosure and touch-display assembly. A useful drawing identifies the overall outline, active display window, opaque border, bonding zone, datum surfaces, corner radii, holes, slots, chamfers, and cosmetic acceptance areas.
For private-mold projects, Felix Glass evaluates manufacturability before sample processing so glass features remain consistent with the surrounding structure.
Use cases
Industrial Touch Screen and HMI Applications
Industrial HMI Panels
Front protection for operator interfaces used in automation and production equipment.
Industrial Monitors
Flat cover windows for embedded or standalone industrial display assemblies.
Factory Equipment
Touch-facing glass for machinery controls where regular cleaning and repeated use are expected.
Public and Commercial Terminals
Custom glass for kiosks and terminals when the design uses a comparable flat capacitive interface.
Production planning01 02 03 04
From Drawing Review to Finished Cover Glass
Requirement Review
Confirm CAD drawing, substrate, thickness, touch stack, coating, printing, and quantity.
Cutting and CNC
Process the outline, edge, holes, slots, and window features required by the design.
Strengthening and Surface Work
Apply the agreed tempering, printing, and surface-treatment route.
Inspection and Packing
Check drawing-defined dimensions and appearance before protective packing.
Desire: engineering control

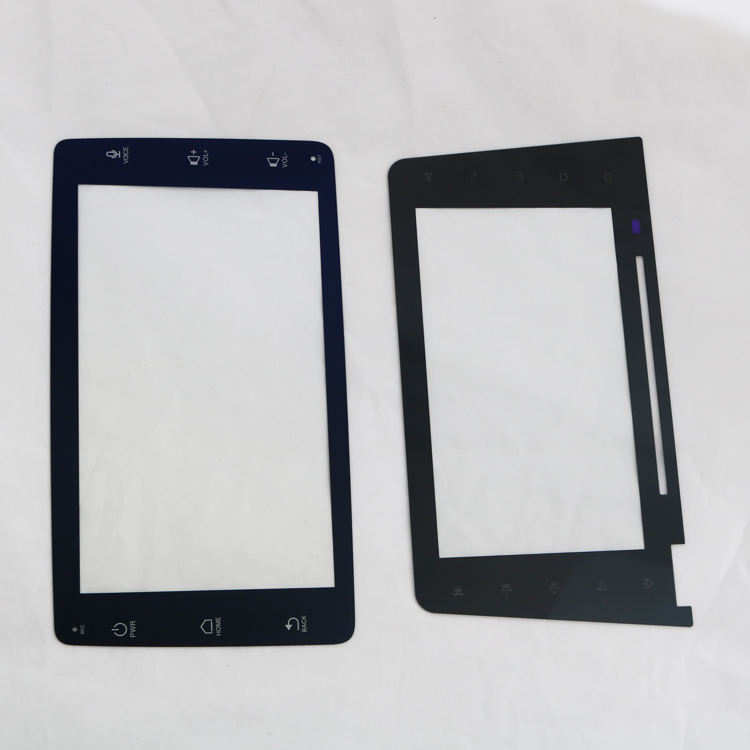

Quality Checks for Touch Display Cover Glass
- Outline, thickness, corner radius, holes, and slot dimensions.
- Edge condition, chips, scratches, stains, and other agreed cosmetic items.
- Printed border position, visible-window alignment, and color requirements.
- Surface-treatment appearance and application-specific test items.
- Assembly fit based on approved samples or customer drawings.
Buyer questions
Frequently Asked Questions
Can size and thickness be customized?
Yes. The original listing supports private-mold sizing and a customizable 1.1–4.0 mm thickness range, subject to drawing review.
Does this include the capacitive sensor?
The listing describes flat tempered cover glass. Confirm the required supply scope if a sensor, bonding, or complete module is also needed.
Which surface treatment should I choose?
Choose AG, AF, or wear-resistant treatment according to lighting, touch frequency, cleaning method, and optical requirements.
What should an RFQ include?
Send the drawing, size, thickness, structure, border artwork, coating, touch stack, quantity, and inspection needs.
Cross-link guide
Related Felix Glass Resources
Compare related functional glass categories or contact Felix Glass Co., Limited with your drawing and assembly requirements.
Action
Prepare Your RFQRequest a Flat Touch Screen Glass Review
Prepare the CAD drawing, glass thickness, C/J structure, active area, border, coating, quantity, and operating environment for an engineering review.
