Paramtents
Thermal protector: with thermal protector (single phase motor)
Insulation rating: F
Protection class: IP55
Medium temperature: 5~50℃
Ambient temperature: ≤50℃
Maximum working pressure: 0.3MPa
Certification： CE
Packging & Delivery
Size360cm x150cm x250cm
Min Order50 piece
Briefing
0.55KW/0.75HP~0.9KW/1.2HP
335~400 QMAX(L/MIN)
335~400 QMAX(L/MIN)
Detailed

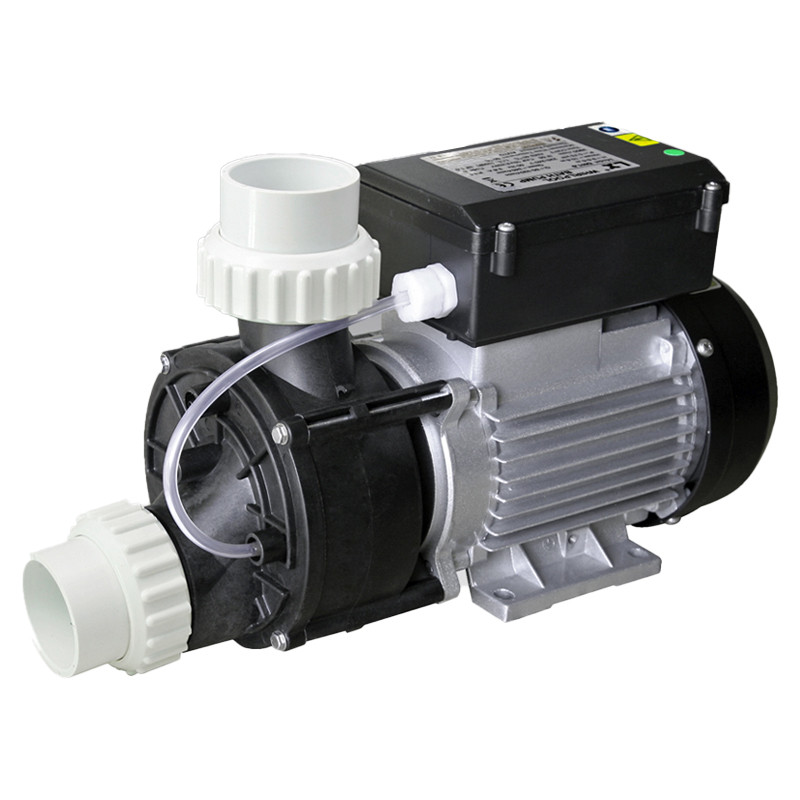

Bathtub Water Pump Introduction
The pump is equipped with water pressure type waterless protection, and the pressure sampling and electric pump are integrated. The conduction pressure of the pressure switch is directly sampled from the pressure generated by the electric pump itself when it rotates. When there is no medium in the pump body, the water pressure switch cannot be turned on, thereby achieving the purpose of preventing the electric pump from operating when there is no water in the bathtub.
Bathtub Water Pump Parameter
Bathtub Water Pump Performance Curves
Bathtub Water Pump Dimension
Bathtub Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie | |||
3 | O-Ring | |||
4 | Heaagon Screw | |||
5 | Pump Cover | |||
6 | Air tube | |||
7 | Impeller | |||
8 | Mechanical seal | |||
9 | O-Ring | |||
10 | Pump Casing | |||
11 | Motor | |||
Bathtub Water Pump Applications
