EH 66 Series ISO 5675 Flat Face Hydraulic Quick Disconnect – Steel, Zero-Spill Poppet Valve
group nameAgricultural ISO 5675 Quick Coupler
-
Min Order1 piece
brand nameEH
-
update timeFri, 05 Dec 2025 16:25:45 GMT
Paramtents
Interchange PARKER 4000 SERIES
Interchange DIXON AG SERIES
Interchange EATON AEROQUIP FD42 SERIES
Interchange FASTER NV SERIES
Interchange DNP PDV1 SERIES
Interchange STUCCHI IRV SERIES
Interchange SAFEWAY S20 SERIES
Interchange VOSWINKEL ID SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with PARKER 4000 SERIES, DIXON AG SERIES, EATON AEROQUIP FD42 SERIES, FASTER NV SERIES, DNP PDV1 SERIES, STUCCHI IRV SERIES, SAFEWAY S20 SERIES, and VOSWINKEL ID SERIES. Steel Product. ISO-5675 compliant. The 66 series features poppet valve quick couplings that are interchangeable with the 68 ball valve series. Manufactured from zinc-plated carbon steel, these couplings offer superior sealing performance compared to ball valve designs. ISO-7241-A compliant (1/2'' Body Size Only). The rest body sizes are interchangeable with PARKER 4000 series and Faster NV series. Note that the FASTER NV SERIES 3/4'' size is different from the PARKER 4000 Series 3/4'' size.
Detailed
EH 66 Series – ISO 5675 Poppet Valve Hydraulic Quick Disconnect Couplings (Steel)
Engineered for zero-spill performance in demanding hydraulic circuits, the EH 66 Series features flat-face poppet valve couplings that outperform traditional ball-valve designs in sealing reliability and contamination resistance.
Constructed from zinc-plated carbon steel, these robust couplings deliver superior durability and corrosion protection—ideal for agricultural, construction, and industrial mobile equipment.
Key Advantages:
True flat-face design minimises fluid loss and prevents air ingress
Poppet valve mechanism ensures leak-free connection/disconnection
Higher sealing integrity compared to ball-type couplers (e.g., EH 68 Series)
Full compliance with the ISO 5675 standard across all sizes
Interchangeability by Size:
All sizes: Directly interchangeable with Parker 4000, Faster NV, Dixon AG, Eaton Aeroquip FD42, DNP PDV1, Stucchi IRV, Safeway S20, and VossWinkel ID series
½" body size only: Also compliant with ISO 7241-A
Note: The ¾" size of Faster NV series differs from Parker 4000 ¾"—verify dimensional specs before interchange.
Whether you're upgrading legacy systems or designing new hydraulic circuits, the EH 66 Series offers a high-performance, globally compatible solution that reduces downtime and maintenance costs—without compromising on quality.
Disclaimer: EH is an independent manufacturer. All brand names referenced (including Parker, Faster, Dixon, Eaton, Stucchi, Safeway, VossWinkel) are trademarks of their respective owners and are used solely to indicate product compatibility.

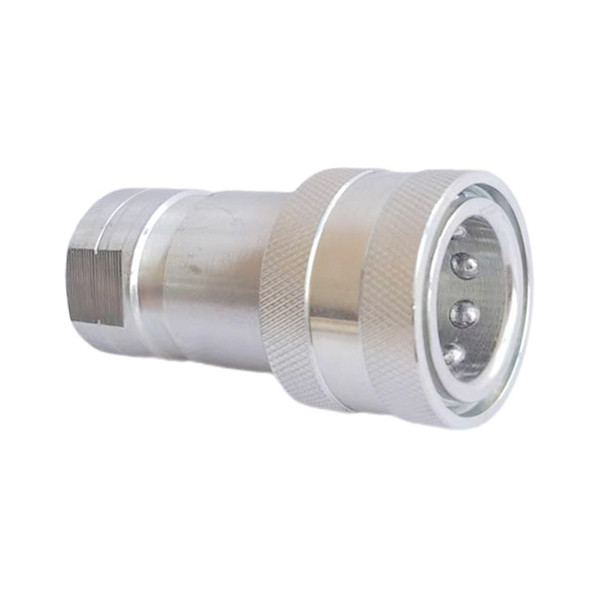

Female Flat Face Hydraulic Quick Disconnect Valve
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC6614-1/4" | 1/4'' | 52.5 | 28 | S19 | 1/4"BSPP(NPT) |
| HFSFC6638-3/8" | 3/8'' | 59.5 | 35 | S22 | 3/8"BSPP(NPT) |
HFSFC6612-1/2" | 1/2'' | 66 | 38 | S27 | 1/2"BSPP(NPT) |
HFSFC6612-34"UNF | 1/2'' | 66 | 38 | S27 | 3/4"-16UNF |
HFSFC6634-3/4" | 3/4'' | 80 | 48 | S33 | 3/4"BSPP(NPT) |
HFSFC6610-1" | 1'' | 88.5 | 52.5 | S39 | 1"BSPP(NPT) |
Male Flat Face Hydraulic Quick Disconnect Valve
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP6614-1/4" | 1/4'' | 35 | S19 | 1/4"BSPP(NPT) |
| HFSFP6638-3/8" | 3/8'' | 40.5 | S24 | 3/8"BSPP(NPT) |
HFSFP6612-1/2" | 1/2'' | 46 | S27 | 1/2"BSPP(NPT) |
HFSFP6612-3/4" UNF | 1/2'' | 46 | S27 | 3/4"-16UNF |
HFSFP6634-3/4" | 3/4'' | 56.5 | S35 | 3/4"BSPP(NPT) |
HFSFP6610-1" | 1'' | 67 | S41 | 1"BSPP(NPT) |
Flat Face Hydraulic Quick Disconnect Valve Accessories
Color Can Be Customized
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO-5675-1/4-P-P | ISO-5675-1/4-C-P | PVC |
| 06 | 10 | ISO-5675-3/8-P-P | ISO-5675-3/8-C-P | PVC |
08 | 12.5 | ISO-5675-1/2-P-P | ISO-5675-1/2-C-P | PVC |
12 | 20 | ISO-5675-3/4-P-P | ISO-5675-3/4-C-P | PVC |
| 16 | 25 | ISO-5675-1-P-P | ISO-5675-1-C-P | PVC |
