101/107 Series | SNAP-TITE H, IH Interchange Quick Coupling Free Flow Available (Brass)
group namePoppet (Interchange) Couplers
-
Min Order1 piece
brand nameEH
-
update timeFri, 05 Dec 2025 19:21:10 GMT
Paramtents
Interchange PARKER H SERIES
Interchange PARKER IH SERIES
Interchange SNAP-TITE H SERIES
Interchange SNAP-TITE IH SERIES
Interchange DIXON V SERIES
Interchange FASTER TNV SERIES
Interchange FASTER TNL BRASS SERIES
Interchange STUCCHI SH SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with PARKER H SERIES, PARKER IH SERIES, SNAP-TITE H SERIES, SNAP-TITE IH SERIES, DIXON V SERIES, FASTER TNV SERIES, FASTER TNL BRASS SERIES and STUCCHI SH SERIES. Brass Product. 101 series couplings are commonly used in US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with 107 parts (free flow) same series. Brass.
Detailed
101 Series / 107 Series
High Pressure Coupling
Poppet Valve / Unvalved, Brass
This EH series is interchangeable with PARKER H SERIES, PARKER IH SERIES, SNAP-TITE H SERIES, SNAP-TITE IH SERIES, DIXON V SERIES, FASTER TNV SERIES, FASTER TNL BRASS SERIES and STUCCHI SH SERIES. 101 series couplings are commonly used in the US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with 107 parts (free flow) same series. Brass.

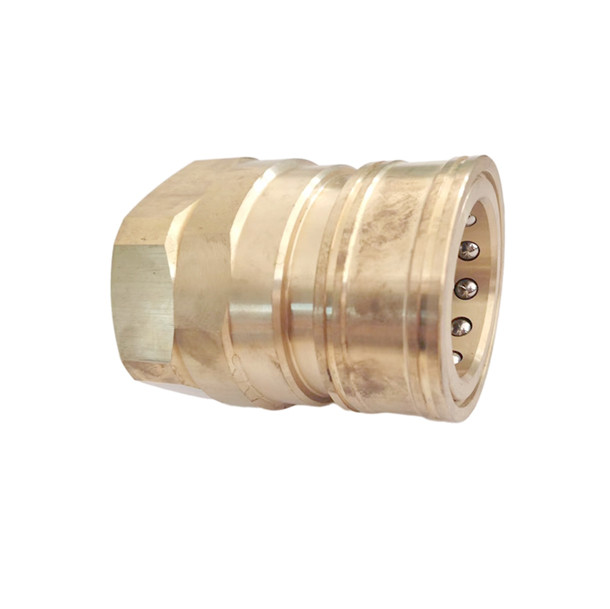

Female
| 101 Series, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | L(mm) | T |
| HFBFC10114-1/4" | 1/4'' | 50 | 24 | S22 | 84 | 1/4" NPT |
HFBFC10138-3/8" | 3/8'' | 57 | 27 | S24 | 95 | 3/8 "NPT |
HFBFC10112-1/2" | 1/2'' | 65 | 34 | S30 | 110 | 1/2" NPT |
HFBFC10134-3/4" | 3/4'' | 64 | 42 | S36 | 106 | 3/4" NPT |
HFBFC10110-1" | 1'' | 71 | 51 | S46 | 116 | 1" NPT |
| 107 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | L(mm) | T |
| HFBFC10714-1/4" | 1/4'' | 50 | 24 | S22 | 84 | 1/4" NPT |
HFBFC10738-3/8" | 3/8'' | 57 | 27 | S24 | 95 | 3/8 "NPT |
HFBFC10712-1/2" | 1/2'' | 65 | 34 | S30 | 110 | 1/2" NPT |
HFBFC10734-3/4" | 3/4'' | 64 | 42 | S36 | 106 | 3/4" NPT |
HFBFC10710-1" | 1'' | 71 | 51 | S46 | 116 | 1" NPT |
Male
| 101 Series, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | A(mm) | Hp(mm) | L(mm) | T |
| HFBFP10114-1/4" | 1/4'' | 49 | 10.8 | S22 | 84 | 1/4" NPT |
HFBFP10138-3/8" | 3/8'' | 57 | 12.9 | S24 | 95 | 3/8 "NPT |
HFBFP10112-1/2" | 1/2'' | 63 | 16 | S30 | 110 | 1/2" NPT |
HFBFP10134-3/4" | 3/4'' | 64 | 23.3 | S36 | 106 | 3/4" NPT |
HFBFP10110-1" | 1'' | 68 | 29.7 | S46 | 116 | 1" NPT |
| 107 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | A(mm) | Hp(mm) | L(mm) | T |
| HFBFP10714-1/4" | 1/4'' | 49 | 10.8 | S22 | 84 | 1/4" NPT |
HFBFP10738-3/8" | 3/8'' | 57 | 12.9 | S24 | 95 | 3/8 "NPT |
HFBFP10712-1/2" | 1/2'' | 63 | 16 | S30 | 110 | 1/2" NPT |
HFBFP10734-3/4" | 3/4'' | 64 | 23.3 | S36 | 106 | 3/4" NPT |
HFBFP10710-1" | 1'' | 68 | 29.7 | S46 | 116 | 1" NPT |
