Hygienic Food Checkweigher – Accurate Lightweight Package Inspection SCF-4523L3
group nameCheckweigher
-
Min Order1 piece
brand nameSameGram
modelSCF-4523L3
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeFri, 05 Dec 2025 18:53:32 GMT
Paramtents
Weighting range 1-3000g
Belt speed 5-90m/min
Weighting accuracy ±0.3-2g
Weighting section size L 450mm*W 230mm
Applicable product size L≤300mm; W≤220mm
Rejection mode Push rod or air blow
Packging & Delivery
Min Order1 piece
Briefing
SCF-4523L3 is a hygienic food checkweigher with high precision and hi speed checkweighing for food industry use，easy to integrate
Detailed
Detail Information

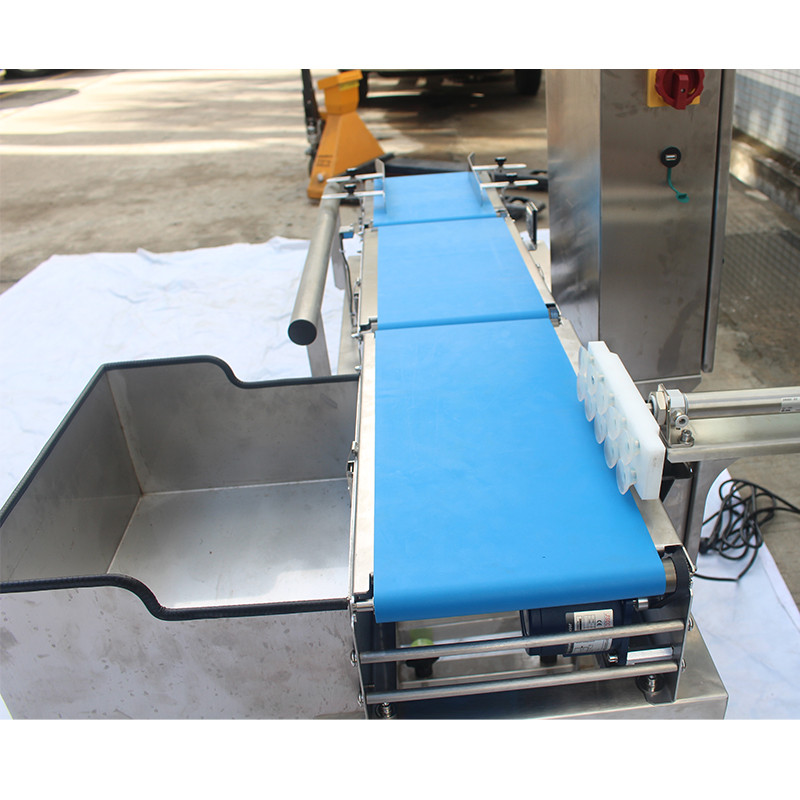

Hygienic Food Checkweigher for Lightweight Packages SCF-4523L3
Introduction
The SCF-4523L3 is a hygienic checkweigher designed for food-processing environments that require frequent cleaning and reliable weight inspection. Its fully enclosed safety guard, adjustable limiter plate, and emergency stop enhance operator safety, while the touchscreen with three-tier access control simplifies operation.
The adjustable product guides allow quick changeovers, enabling inspection of items with different sizes and weights within the scale’s platform and load range. Built with food-grade materials and suitable for washdown conditions, this wet environment checkweighing system maintains accuracy in demanding production zones.
With a variable-speed motor and seamless integration with cartoners, fillers, and vertical packaging machines, the SCF-4523L3 provides a precision checkweighing solution that meets the needs of modern food production while ensuring hygienic standards.
Hygienic Checkweigher for Lightweight Packages SCF-4523L3 Features
Food Checkweigher for Lightweight Packages SCF-4523L3
Technical Parameters
| Product model | SCF-4523L3 | |
| Weighting range | 1-3000g | |
Weighting section size | L 450mm*W 230mm | |
Dimensions | 1300×900×1400mm（L×W×H） | |
Belt speed | 5-90m/min | |
Air pressure interface | Φ8mm | |
| Case material | 304 stainless steel | |
Display division | 0.1g | |
| Weighting accuracy | ±0.3-2g | |
| Applicable product size | L≤300mm; W≤220mm | |
Storage formula | 100 types | |
Conveyor belt height from ground | 750mm | |
| Power supply | AC220V±10% | |
Air source | 0.5-0.8MPa | |
Data transfer | USB data export | |
Alarm mode | Sound and light alarm and automatic rejection | |
Rejection mode | Air blowing, push rod, swing arm, drop, up and down flip, etc. (customizable) | |
| Optional function | Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling | |
Operation screen | 10-inch Weiluntong color touch screen | |
Control system | Samegram online weighing control system V1.0.5 | |
Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor | |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
Food Industry Checkweigher SCF-4523L3 Typical Applications
🍱This machine is well-suited for production lines / packaged products, especially where hygiene, efficiency, and weight consistency are critical:
Bakery items, pastries, biscuits, bread, etc. — delicate or lightweight packaged goods needing consistent weight
Snacks, nuts, dry food, grains — products with net-weight control and high consistency requirements
Convenience foods, instant meals, small-pack food items (seasoning packs, sauces, meal packs)
Pharmaceutical / supplement packaging (capsule packs / sealed pouches) — requiring high precision, stability, traceability
Cosmetics, small consumer goods (bagged / boxed) — where package weight consistency and hygiene are important
In short: any production line requiring automated, high-efficiency, traceable, hygienic weight control — this machine fits well.
Hygienic Food Checkweigher Purchase / Installation / Operation Tips
🛠️：
Confirm product specifications and packaging requirements before purchase:
know your package’s dimension (L×W×H), weight range, and packaging material. Make sure it fits within the machine’s supported max size (≤300×220 mm) and weight range (1–3000 g).
Assess your line speed:
based on your target packages per minute (ppm) or line throughput, set the conveyor belt speed (5–90 m/min) accordingly — ensure accurate weighing without compromising overall productivity.
Choose appropriate rejection method:
depending on packaging type — for delicate or soft packages choose gentler rejection (air blow or light push rods), for rigid boxes choose push-rod or swing-arm.
Hygiene / Cleaning / Environment Requirements:
If your production involves frequent washing (e.g. meat, seafood, wet food), confirm the machine’s wash-down capability; perform regular cleaning of conveyor belt, rails, and sensors to avoid residue or bacterial growth.
Enable data logging & traceability:
make use of USB export to record each batch/package’s weight data — useful for quality management, traceability, and compliance audits.
Why Choose This Hygienic Design Checkweighing System For Your Factory / Production Line
If you process food products — especially wet, moist, bagged, or lightweight packages —
the hygienic structure, stainless-steel frame, wash-down protection, and food-grade conveyor help ensure cleanliness, reduce contamination risks, and meet strict food-safety requirements.
If you need certified, globally compliant equipment —
the hygienic design checkweighing system is CE certified and manufactured under ISO quality management systems, giving you reliable performance and smooth compliance for export markets and audits.
If you want to reduce manual weighing, inspection, and rejection —
the system’s automated weight checking, automatic rejection, and data logging can significantly save labor, minimize human error, and simplify your QC workflow.
If you aim to build a high-speed, stable, and traceable production line —
the food industry checkweigher offers high precision, fast throughput, and complete data export capability, making it ideal for large-scale, fully automated production.
Food‑Grade Checkweigher Case Studies
Hygienic Food Checkweigher SCF-4523L3 FAQS
Q: What level of accuracy can be achieved? Will the product affect accuracy?
A: The device’s accuracy is ±0.3–2 g. Actual accuracy depends on product weight, size, packaging material, line speed, and environmental stability (vibration, etc.). We calibrate for optimal accuracy based on your product.
Q: If my product’s size or package differs from standard — is customization available?
A: Yes. We can customize belt width/length, increase scale platform size, add special supports or anti-roll fixtures, and adapt software parameters. You only need to provide package dimensions, weight, and pictures / videos for evaluation.
Q: How to choose the right rejection method?
A: Choose based on package type: for fragile or soft-packaged items → air blow or light push-rod; for rigid boxes → push-rod or swing-arm; for small mixed packages → drop-away or flip; for unstable/balanced items → custom guide + push-rod. We assist with proper selection per your product and line speed.
Q: Can this system integrate with my existing packaging, filling, or metal-detection systems?
A: Yes. SCF-4523L3 supports integration with fillers, packers, metal detectors, sorting systems, and can be expanded to link with MES or production management systems. Closed-loop control for filling adjustments is also available.
Q: Is the machine waterproof? Can it be cleaned with a water-gun washdown?
A: The machine is made with food-grade stainless steel and food-grade conveyor belt, suitable for wet environments and regular cleaning. If you require high-level wash-down (e.g. IP65), we offer custom protection upgrades depending on your workshop environment.
Q: Is maintenance difficult? How often should it be calibrated?
A: Maintenance is simple: daily cleaning of belt and scale platform, periodic check of rejection mechanism. Calibration recommended weekly under normal use. The system will alert on abnormal status for easy troubleshooting.
Q: How long does it take to install? Do you offer remote support?
A: Installation and commissioning usually take 2–4 hours. Remote video setup, parameter tuning and online support are available. On-site training can be provided depending on location.
Q: Can it detect underweight, missing items, or incorrect filling in multi-piece / multi-pack products?
A: Yes. For multiple-piece packages, small items, trays or pouches — the checkweigher can detect underweight, missing items, over-weight, incorrect fill levels. For more advanced detection (e.g. foreign objects), you can combine with metal detectors or X-ray systems.
