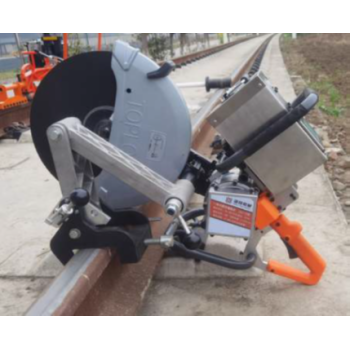

Integrated Lithium-Powered Rail Saw

group nameOthers
Min Order1 piece
brand nameRailway Maintenance
modelLDJ-72
update timeSun, 07 Dec 2025 03:47:04 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

The integrated lithium-powered rail saw features an all-steel structure design. It is powered by a high-capacity lithium battery pack, which supplies energy to a high-power, constant-speed brushless external rotor motor. Under the precise control of a central electronic system, it utilizes a multi-wedge belt drive to actuate the cutting disc for rail cutting operations.

Detailed

Overview

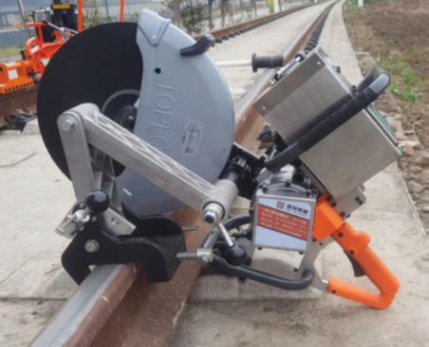

The integrated lithium-powered rail saw features an all-steel structure design. It is powered by a high-capacity lithium battery pack, which supplies energy to a high-power, constant-speed brushless external rotor motor. Under the precise control of a central electronic system, it utilizes a multi-wedge belt drive to actuate the cutting disc for rail cutting operations.

Key Features

⚪ Utilizes lithium battery as a clean energy power source, providing an environmentally friendly, pollution-free, and low-noise operation.

⚪ Equipped with a super-powerful brushless DC motor delivering a maximum power exceeding 5 kW, enabling high-efficiency cutting (completing a 60 kg/m rail cut in less than 120 seconds).

⚪ Features a 72V lithium-powered DC control system with safety protections against overcurrent, overvoltage, undervoltage, and overtemperature.

Incorporates effective vibration damping.

⚪ The entire machine is waterproof and exhibits excellent low-temperature resistance, capable of normal operation in extremely cold conditions down to -30°C.

⚪ Offers extended endurance, capable of performing approximately 5 cuts (on 60 kg/m rail) on a single charge.

Technical Specifications
