Rail Insulated Joint Separator
group nameOthers
-
Min Order1 piece
brand nameRailway Maintenance
modelRail Insulated Joint Separator
-
update timeSat, 06 Dec 2025 09:11:59 GMT
Packging & Delivery
Min Order1 piece
Briefing

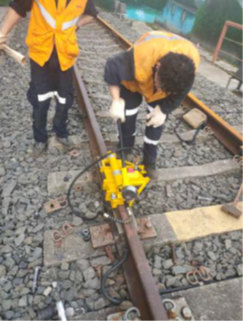

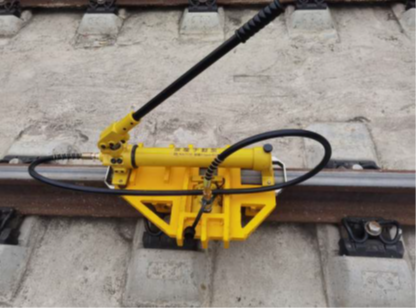

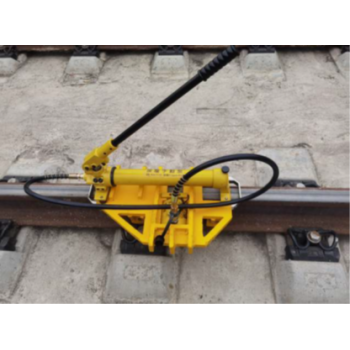

The Rail Insulated Joint Separator is designed to disassemble insulated rail joints. It operates by applying a lateral shear force to induce a slight displacement misalignment between the two rails at the insulated joint gap. This misalignment overcomes the shear resistance bonding the insulating plates to the rails, effectively separating the plates from the rail ends.
Detailed
Overview
The Rail Insulated Joint Separator is designed to disassemble insulated rail joints. It operates by applying a lateral shear force to induce a slight displacement misalignment between the two rails at the insulated joint gap. This misalignment overcomes the shear resistance bonding the insulating plates to the rails, effectively separating the plates from the rail ends.
Key Features
⚪ Lightweight & Robust: Total weight ≤ 60 kg, ensuring portability without compromising strength.
⚪ High Cutting Capacity: Generates a maximum shear force of 280 kN, sufficient for efficient separation.
⚪ Hydraulic Operation: Utilizes a matched 40T hydraulic jack for reliable and powerful force application.
⚪ High Efficiency: Completes the entire separation process, from setup to finish, within 5 minutes, minimizing track occupancy time.
Technical Specifications
| Total Weight | ≤ 60 kg |
| Maximum Shear Force | 280 kN |
| Matched Tool | Hydraulic Jack (40T) |
| Working Efficiency | ≤ 5 minutes (From equipment installation to complete separation) |
Application Effectiveness
