Six-head Automatic Spout Bag Liquid Packaging Machine is Suitable for Food, Daily Chemicals & Medical

  • group nameLiquid Packaging Machine

  • Min Order1 piece

  • brand namefame machinery packaging machines manufacturer

  • payment methodWestern Union, MoneyGram, T/T, Paypal

  • update timeFri, 05 Dec 2025 14:27:36 GMT

Paramtents

  • Packaging products Liquid and pastes

  • Filling specification 30-2000ML

  • Hopper size 150L(304 stainless steel )

  • Machine power 8Kw

Packging & Delivery

  • Min Order1 piece

Briefing

This highly efficient six-head automatic spout bag liquid packaging machine is designed specifically for liquid products, providing a fast and precise packaging solution. Suitable for a variety of industries, including food, cosmetics, and medical.

Detailed

Introduction of Six-head Automatic Spout Bag Liquid Packaging Machine

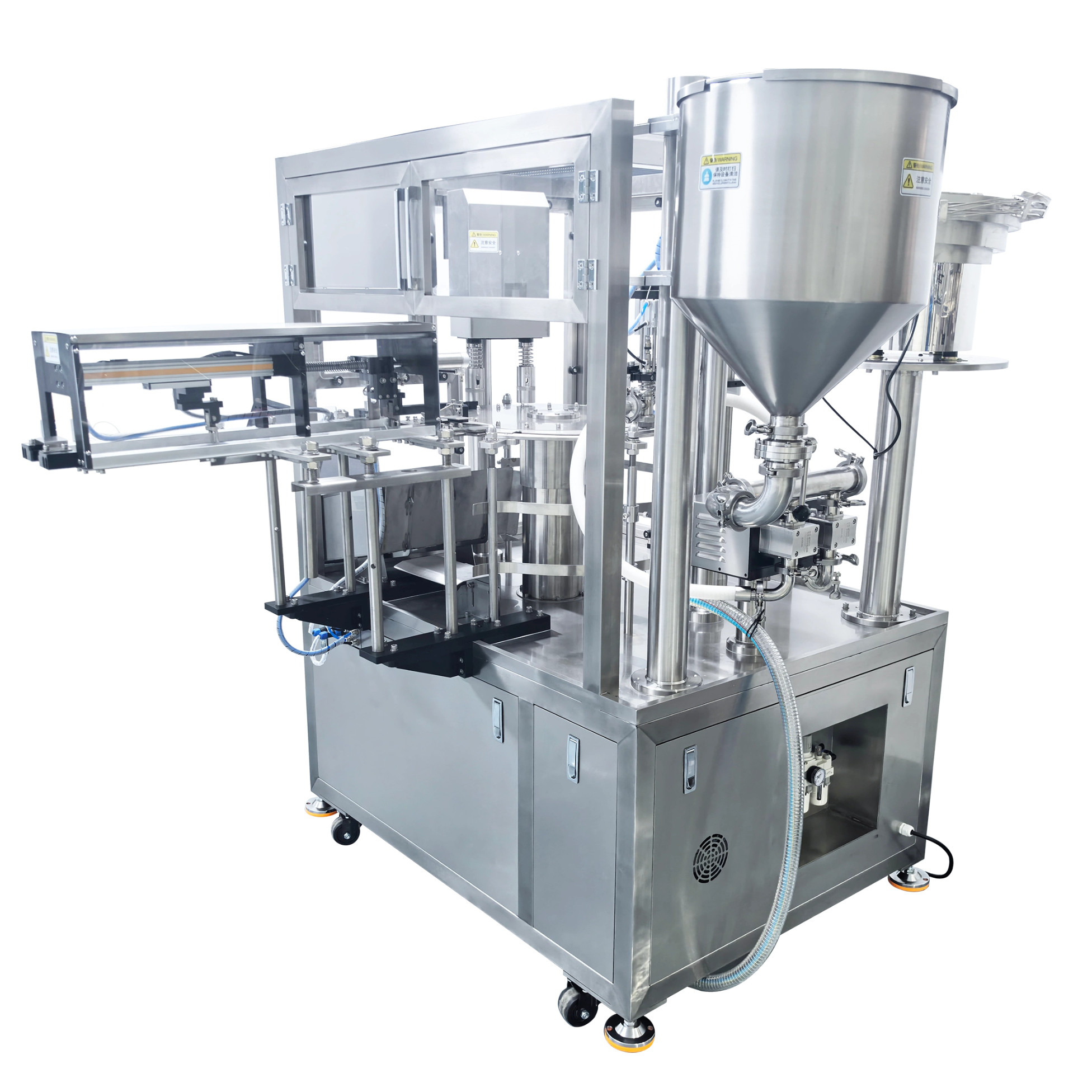

This six-head automatic spout bag liquid packaging machine for liquids is an efficient and precise device for quantitative filling and sealing of liquids.

High-speed production: This is the most significant feature. With six workstations, it can simultaneously complete the operations for six nozzles, significantly increasing production speed compared to traditional single-head, double-head, or four-head models. Its packaging speed can typically reach 60-70 bags per minute or even higher, making it ideal for large-scale industrial production.

Continuous operation: Through a sophisticated mechanical structure (such as a turret or rotating worktable), processes such as bag picking, filling, nozzle placement, sealing, punching, and date printing are performed continuously, reducing intermittent waiting time and further ensuring production capacity.

Machine Key Components of Six-head Automatic Spout Bag Liquid Packaging Machine

* Storage Hopper:
The primary container that holds the bulk product before it is precisely measured and dispensed.
* Control Panel:
The user interface for operators to manage and monitor all machine functions and settings.
* Bag Gripping & Manipulation Unit:
The mechanism (likely pneumatic clamps) that securely holds the open mouth of the bag in place under the nozzles during the filling process.
* Weighing Scale:
The core unit for accurately measuring the product weight (integrated within the structure below the hopper).
* Ribbon Code Printer:
An integrated printer that applies essential information like expiration dates, batch numbers, or barcodes onto the filled bags.
* Dual Nozzles:
The filling heads that dispense the pre-weighed product into open bags, allowing for simultaneous filling and increased speed.
* Output Feeding Conveyor:
The final conveyor belt that transports the finished, sealed, and coded bags away from the machine for further handling, boxing, or palletizing.
* Gear pump:
As the driving gear and driven gear keep rotating, the pump can continuously suck in and discharge the liquid.

Six-Head Automatic Spout Bag Liquid Packaging Machine Specifications

Machine type
Six-head automatic spout bag liquid packaging machine for liquid
Packaging products
Liquid and pastes
Measuring type
Gear pump(316 stainlees steel )
Filling specification
30-2000 ML
Hopper size
150L (304 stainlees steel)
Middle spout pouch bag size
Width: 60-240 mm, Height: 60-300mm
Slanted-mouth spout pouch size
Width: 60-360mm, Height: 60-320mm
Production speed
1)  30ml-100ml:about 80-100 bags /minute
2) Under 500ml :about 60-70 bags /min(Speed is related to factors such as material capacity, viscosity and packaging material standardization)
Voltage/ power
380V 50HZ
Machine power
8Kw
Machine weight
About 1000KG
Aluminium parts
Aluminum disc anodizing
Material for machine
304 stainless steel
Material for filling head
304 stainlees steel
Turntable principle
Cam indexer
Machine size
Length 3100* width 3000*height 2500 mm
Operating principle
Manual bgging -automatic bagging-automatic filling-automatic cap feeding -automatic cap-locking -automatic bagging

Features of six-head automatic spout bag liquid packaging machine

This automatic spout pouch bag liquid packaging machine is fast, clean, and efficient, it has some outstanding features.

High-precision positioning: Utilizing a servo motor and advanced control system, each nozzle is accurately placed at the predetermined position at the bag opening and securely heat-sealed. This significantly reduces the risk of leakage and nozzle detachment.

Stable and reliable operation: As a mid-to-high-end model, its robust mechanical structure and key components (such as electrical and pneumatic components) typically utilize internationally renowned brands, ensuring stability and a low failure rate under prolonged high-load operation.
Strong compatibility:

Bag type compatibility: By changing the bag forming device and other molds, it can adapt to the production of nozzle bags of different sizes and shapes (such as four-side seal and back seal bags).

Material compatibility: Suitable for various materials such as liquids, pastes, granules, and powders.

Nose compatibility: Adaptable to the automatic installation of nozzles and caps of different specifications and materials (such as PE and PP).

Applicable products of six-head automatic spout bag liquid packaging machine

This automatic spout bag liquid packaging machine is versatile across multiple liquid industries.
* Food: Widely used for food liquids like juice, soy sauce, ketchup, peanut butter,jelly etc.
* Daily Chemicals: Ideal for shampoo, hand soap, laundry detergent, lotion, chemical engine oil etc.
* Medical: Perfect for fluid and semi-viscous liquids like antiseptic liquid, syrup, injection liquid, other liquid medications etc.
* Health care products: ideal choice for nutrient solution, oral liquid, etc.
* Dairy products: good choice for different milk,modified milk, cream.etc.
vacuum pack machine

Six-head automatic spout bag liquid packaging machine video
