Defined 4+1 architecture
The source specifies four AHD inputs plus one IPC channel.

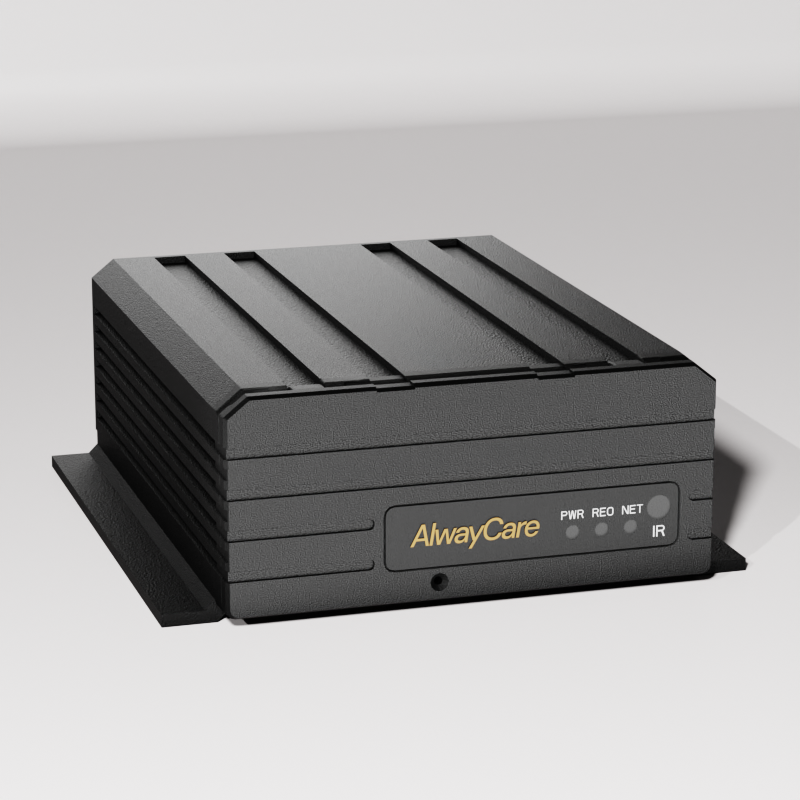

5-Channel AI Mobile DVR for Mining Fleets
group nameMobile DVR
-
Min Order1 piece
brand nameAlwayCare Commercial Fleet Safety Manufacturer
model5-CH MDVR
payment methodT/T, PayPal, Westem Union, Cash
-
update timeSun, 16 Aug 2026 13:08:06 GMT
Paramtents
Voltage 12/24V
Video Record Resolution 1920x1080
Satellite Positioning Support GPS and BD (Beidou) dual-mode positioning
Wireless Communication 4G or Wifi
Storage 512GB SD Card
Video Encoding H.264/H.265
Application Suitable for All Vehicles
Operating Temperature -20℃ ~ 70℃
Warranty 15 Months
Packging & Delivery
Min Order1 piece
Briefing
5-channel AI MDVR combines 4 AHD inputs and 1 IPC channel with optional DMS, ADAS, BSD, EDMS or AVM functions.
Detailed
5-CH MDVR · Vehicle video recording
What is the 5CH Mobile DVR?
This 5-channel AI mobile DVR combines four AHD inputs and one IPC channel with selectable fleet-safety algorithms for mining and other demanding multi-camera operations.
Buyer overview
Four points to evaluate first
Selectable AI functions
DMS, EDMS, ADAS, BSD or AVM can be selected according to the project; confirm supported combinations.
Remote operations
GPS/Beidou, 4G or Wi-Fi, CMS monitoring and voice intercom are listed for supported configurations.
Commercial-vehicle recording
The record lists 1080p input, H.264/H.265 encoding and 512GB SD-card storage.
Channel planning
Match the recorder to the camera layout
Channel architecture
5-channel recording: 4 AHD channels plus 1 IPC channel, as stated in the current product description.
Best-fit deployment
Useful when a four-camera AHD layout needs one additional network-camera channel for a specialized view or AI task.
Connected operations
Supported configurations list GPS/Beidou positioning, 4G or Wi-Fi communication, CMS access, video review and IP voice intercom.
Current Tradebee record
Technical specifications
| Voltage | 12/24V |
|---|---|
| Video Record Resolution | 1920x1080 |
| Satellite Positioning | Support GPS and BD (Beidou) dual-mode positioning |
| Wireless Communication | 4G or Wifi |
| Storage | 512GB SD Card |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
Confirm channel allocation, storage, regional connectivity, camera compatibility and accessories in the final quotation.
Vehicle applications
Where the 5CH recorder fits
Mining fleets
Combine rugged multi-view recording with a selected driver or vehicle-awareness function.
Construction vehicles
Use the IPC channel for a specialized view while retaining four AHD cameras.
Truck fleets
Support road, cabin and vehicle-side evidence with remote platform access.
System design
Four steps before installation
A channel count alone does not define a complete fleet-video system. Map cameras, storage, network and platform requirements together.
- 1
Draw every camera position and assign it to a confirmed physical input.
- 2
Set resolution, frame rate, bitrate and retention targets for the active channels.
- 3
Confirm 4G region, SIM, GPS/Beidou, CMS, voice intercom and sensor requirements.
- 4
Validate camera compatibility, power, cabling, calibration and installation environment.
Configuration boundary
The five AI function families are described as selectable options, not as five functions guaranteed to run simultaneously. Confirm the required DMS, EDMS, ADAS, BSD or AVM combination, compatible cameras, licenses and computing limits before ordering.
Buyer questions
5CH Mobile DVR FAQ
How are the recording channels arranged?
5-channel recording: 4 AHD channels plus 1 IPC channel, as stated in the current product description.
What recording specifications are listed?
The current attributes list 1920×1080 video input and H.264/H.265 encoding. Confirm the simultaneous resolution, frame rate and bitrate supported across the selected camera count.
What storage is currently listed?
The current attributes list 512GB SD-card storage. Actual retention depends on active channels, resolution, frame rate, bitrate and recording policy.
Does it support remote fleet monitoring?
Supported configurations list GPS/Beidou, 4G or Wi-Fi, app/web access, live or recorded video workflows, alerts and IP voice intercom. Confirm network bands, SIM policy and platform licensing.
Are DMS, ADAS and BSD included?
They are selectable AI options alongside EDMS and AVM. Confirm which functions and combinations are supported by the quoted unit, cameras and licenses.
What information is needed for a quotation?
Provide vehicle type, camera positions, required channel mix, recording retention, mobile-network region, platform features, AI functions, sensor interfaces and fleet quantity.
Build a verifiable configuration
Share your camera map and retention target
AlwayCare can review channel allocation, storage, connectivity, CMS and optional AI requirements for the actual vehicle.
