Defined 8+1 architecture
The source specifies eight AHD inputs and one IPC channel.

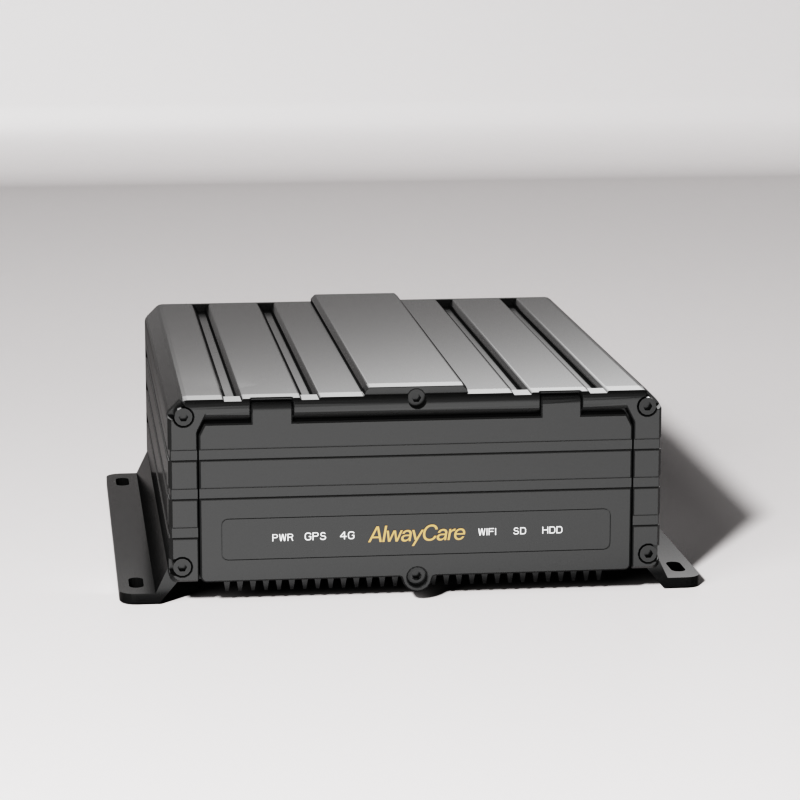

9-Channel Mobile DVR for Logistics Fleets
group nameMobile DVR
-
Min Order1 piece
brand nameAlwayCare Commercial Fleet Safety Manufacturer
model9-CH MDVR
payment methodT/T, PayPal, Westem Union, Cash
-
update timeSun, 16 Aug 2026 00:00:37 GMT
Paramtents
Voltage 12/24V
Video Record Resolution 1920x1080
Satellite Positioning Support GPS and BD (Beidou) dual-mode positioning
Wireless Communication 4G or Wifi
Storage 512GB SD Card
Video Encoding H.264/H.265
Application Suitable for All Vehicles
Operating Temperature -20℃ ~ 70℃
Warranty 15 Months
Packging & Delivery
Min Order1 piece
Briefing
9-channel MDVR combines 8 AHD inputs and 1 IPC channel with GPS/Beidou, CMS monitoring and optional AI functions.
Detailed
9-CH MDVR · Vehicle video recording
What is the 9CH Mobile DVR?
This 9-channel mobile DVR combines eight AHD channels and one IPC channel for logistics fleets that need extensive vehicle coverage plus a flexible network-camera input.
Buyer overview
Four points to evaluate first
Multi-zone fleet evidence
Plan cameras around road, cabin, sides, rear, cargo and connection points.
Connected operations
GPS/Beidou, 4G or Wi-Fi, CMS monitoring and voice intercom are listed for supported configurations.
Optional AI
DMS, ADAS and BSD depend on compatible cameras, configuration and selected system scope.
Channel planning
Match the recorder to the camera layout
Channel architecture
9-channel recording: 8 AHD channels plus 1 IPC channel, as stated in the current product description.
Best-fit deployment
Useful for large vehicles and articulated operations where exterior, cargo, cabin and specialized IPC views must be recorded together.
Connected operations
Supported configurations list GPS/Beidou positioning, 4G or Wi-Fi communication, CMS access, video review and IP voice intercom.
Current Tradebee record
Technical specifications
| Voltage | 12/24V |
|---|---|
| Video Record Resolution | 1920x1080 |
| Satellite Positioning | Support GPS and BD (Beidou) dual-mode positioning |
| Wireless Communication | 4G or Wifi |
| Storage | 512GB SD Card |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
Confirm channel allocation, storage, regional connectivity, camera compatibility and accessories in the final quotation.
Vehicle applications
Where the 9CH recorder fits
Logistics fleets
Monitor road, cargo, side and rear zones on high-utilization vehicles.
Articulated trucks
Add multiple exterior views plus one IPC input for a specialized camera.
Large service vehicles
Record complex operating zones and review events through a fleet platform.
System design
Four steps before installation
A channel count alone does not define a complete fleet-video system. Map cameras, storage, network and platform requirements together.
- 1
Draw every camera position and assign it to a confirmed physical input.
- 2
Set resolution, frame rate, bitrate and retention targets for the active channels.
- 3
Confirm 4G region, SIM, GPS/Beidou, CMS, voice intercom and sensor requirements.
- 4
Validate camera compatibility, power, cabling, calibration and installation environment.
Configuration boundary
The 8 AHD + 1 IPC channel layout is supported by the current body copy. Confirm resolution and frame-rate allocation, IPC compatibility, total bandwidth, storage retention and which optional AI functions can run in the final configuration.
Buyer questions
9CH Mobile DVR FAQ
How are the recording channels arranged?
9-channel recording: 8 AHD channels plus 1 IPC channel, as stated in the current product description.
What recording specifications are listed?
The current attributes list 1920×1080 video input and H.264/H.265 encoding. Confirm the simultaneous resolution, frame rate and bitrate supported across the selected camera count.
What storage is currently listed?
The current attributes list 512GB SD-card storage. Actual retention depends on active channels, resolution, frame rate, bitrate and recording policy.
Does it support remote fleet monitoring?
Supported configurations list GPS/Beidou, 4G or Wi-Fi, app/web access, live or recorded video workflows, alerts and IP voice intercom. Confirm network bands, SIM policy and platform licensing.
Are DMS, ADAS and BSD included?
They are described as optional integrations. Confirm the algorithm package, compatible cameras, licenses and available computing capacity for the quoted system.
What information is needed for a quotation?
Provide vehicle type, camera positions, required channel mix, recording retention, mobile-network region, platform features, AI functions, sensor interfaces and fleet quantity.
Build a verifiable configuration
Share your camera map and retention target
AlwayCare can review channel allocation, storage, connectivity, CMS and optional AI requirements for the actual vehicle.
