Twelve-channel scale
Build a wide-coverage vehicle video system for complex layouts.

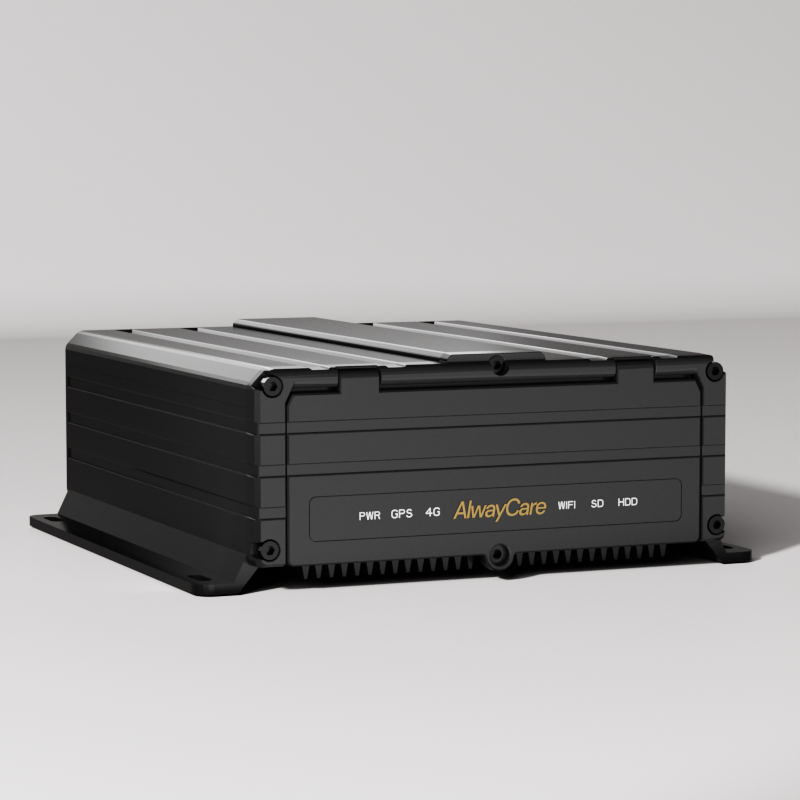

12-Channel Mobile DVR for Bus Fleets
group nameMobile DVR
-
Min Order1 piece
brand nameAlwayCare Commercial Fleet Safety Manufacturer
model12-CH MDVR
payment methodT/T, PayPal, Westem Union, Cash
-
update timeTue, 18 Aug 2026 14:29:36 GMT
Paramtents
Voltage 12/24V
Video Record Resolution 1920x1080
Satellite Positioning Support GPS and BD (Beidou) dual-mode positioning
Wireless Communication 4G or Wifi
Storage 512GB SD Card
Video Encoding H.264/H.265
Application Suitable for All Vehicles
Operating Temperature -20℃ ~ 70℃
Warranty 15 Months
Packging & Delivery
Min Order1 piece
Briefing
12-channel MDVR supports wide-coverage fleet video, GPS/Beidou, 4G or Wi-Fi, CMS monitoring and optional AI functions.
Detailed
12-CH MDVR · Vehicle video recording
What is the 12CH Mobile DVR?
This 12-channel mobile DVR is a high-coverage recording platform for buses and large vehicles that need many simultaneous camera zones, location data and optional remote fleet monitoring.
Buyer overview
Four points to evaluate first
1080p source specification
The attributes list 1920×1080 input and H.264/H.265 encoding; confirm per-channel limits.
Fleet-platform option
GPS/Beidou, 4G or Wi-Fi, app/web monitoring and voice intercom are listed.
Optional AI integration
DMS, ADAS and BSD require compatible cameras, compute capacity and an approved configuration.
Channel planning
Match the recorder to the camera layout
Channel architecture
12-channel recording; the current record does not define the AHD/IPC connector split or per-channel resolution allocation.
Best-fit deployment
Designed for large vehicles with passenger, entrance, cabin, exterior, rear and equipment-area coverage requirements.
Connected operations
Supported configurations list GPS/Beidou positioning, 4G or Wi-Fi communication, CMS access, video review and IP voice intercom.
Current Tradebee record
Technical specifications
| Voltage | 12/24V |
|---|---|
| Video Record Resolution | 1920x1080 |
| Satellite Positioning | Support GPS and BD (Beidou) dual-mode positioning |
| Wireless Communication | 4G or Wifi |
| Storage | 512GB SD Card |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
Confirm channel allocation, storage, regional connectivity, camera compatibility and accessories in the final quotation.
Vehicle applications
Where the 12CH recorder fits
City and school buses
Cover doors, aisles, passenger areas, cabin and vehicle exterior.
Coaches
Record multiple passenger and road-facing zones for operational review.
Large special vehicles
Monitor equipment, work zones, exterior blind areas and cabin activity.
System design
Four steps before installation
A channel count alone does not define a complete fleet-video system. Map cameras, storage, network and platform requirements together.
- 1
Draw every camera position and assign it to a confirmed physical input.
- 2
Set resolution, frame rate, bitrate and retention targets for the active channels.
- 3
Confirm 4G region, SIM, GPS/Beidou, CMS, voice intercom and sensor requirements.
- 4
Validate camera compatibility, power, cabling, calibration and installation environment.
Configuration boundary
The current record confirms twelve-channel recording but does not state the connector mix, simultaneous per-channel resolution or bandwidth limits. Confirm the exact input architecture, storage retention and optional AI capacity before final system design.
Buyer questions
12CH Mobile DVR FAQ
How are the recording channels arranged?
12-channel recording; the current record does not define the AHD/IPC connector split or per-channel resolution allocation.
What recording specifications are listed?
The current attributes list 1920×1080 video input and H.264/H.265 encoding. Confirm the simultaneous resolution, frame rate and bitrate supported across the selected camera count.
What storage is currently listed?
The current attributes list 512GB SD-card storage. Actual retention depends on active channels, resolution, frame rate, bitrate and recording policy.
Does it support remote fleet monitoring?
Supported configurations list GPS/Beidou, 4G or Wi-Fi, app/web access, live or recorded video workflows, alerts and IP voice intercom. Confirm network bands, SIM policy and platform licensing.
Are DMS, ADAS and BSD included?
They are described as optional integrations. Confirm the algorithm package, compatible cameras, licenses and available computing capacity for the quoted system.
What information is needed for a quotation?
Provide vehicle type, camera positions, required channel mix, recording retention, mobile-network region, platform features, AI functions, sensor interfaces and fleet quantity.
Build a verifiable configuration
Share your camera map and retention target
AlwayCare can review channel allocation, storage, connectivity, CMS and optional AI requirements for the actual vehicle.
