Four-camera coverage
Build a practical recording layout for small and medium commercial vehicles.

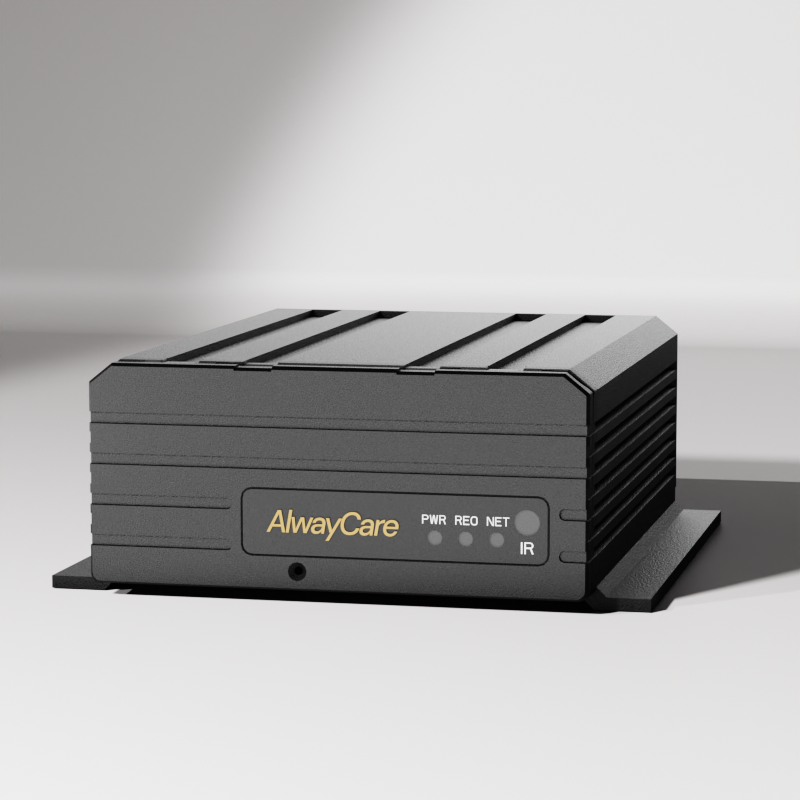

4-Channel Mobile DVR with CMS Platform
group nameMobile DVR
-
Min Order1 piece
brand nameAlwayCare Commercial Fleet Safety Manufacturer
model4-CH MDVR
payment methodT/T, PayPal, Westem Union, Cash
-
update timeSat, 15 Aug 2026 02:55:40 GMT
Paramtents
Voltage 12/24V
Video Record Resolution 1920x1080
Satellite Positioning Support GPS and BD (Beidou) dual-mode positioning
Wireless Communication 4G or Wifi
Storage 512GB SD Card
Video Encoding H.264/H.265
Application Suitable for All Vehicles
Operating Temperature -20℃ ~ 70℃
Warranty 15 Months
Packging & Delivery
Min Order1 piece
Briefing
4-channel MDVR records 1080p vehicle video and supports GPS/Beidou, 4G or Wi-Fi, CMS monitoring and optional AI.
Detailed
4-CH MDVR · Vehicle video recording
What is the 4CH Mobile DVR?
This 4-channel mobile DVR is a compact fleet-recording platform for vehicles that need four camera views, location data and optional remote monitoring without the complexity of a high-channel system.
Buyer overview
Four points to evaluate first
1080p source specification
The current record lists 1920×1080 input and H.264/H.265 encoding.
Connected fleet option
GPS/Beidou, 4G or Wi-Fi and app/web access are listed for supported configurations.
Optional safety algorithms
DMS, ADAS and BSD are optional and must be selected with compatible cameras and licensing.
Channel planning
Match the recorder to the camera layout
Channel architecture
4-channel recording; the current record does not specify the connector mix, so confirm AHD/IPC allocation.
Best-fit deployment
Best suited to compact camera layouts such as front, rear and two side or cabin views.
Connected operations
Supported configurations list GPS/Beidou positioning, 4G or Wi-Fi communication, CMS access, video review and IP voice intercom.
Current Tradebee record
Technical specifications
| Voltage | 12/24V |
|---|---|
| Video Record Resolution | 1920x1080 |
| Satellite Positioning | Support GPS and BD (Beidou) dual-mode positioning |
| Wireless Communication | 4G or Wifi |
| Storage | 512GB SD Card |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
Confirm channel allocation, storage, regional connectivity, camera compatibility and accessories in the final quotation.
Vehicle applications
Where the 4CH recorder fits
Delivery vehicles
Cover forward road, rear area and two vehicle sides.
Service fleets
Add location-aware video evidence to maintenance and field-service operations.
Small buses or vans
Monitor key exterior and cabin views with a compact channel count.
System design
Four steps before installation
A channel count alone does not define a complete fleet-video system. Map cameras, storage, network and platform requirements together.
- 1
Draw every camera position and assign it to a confirmed physical input.
- 2
Set resolution, frame rate, bitrate and retention targets for the active channels.
- 3
Confirm 4G region, SIM, GPS/Beidou, CMS, voice intercom and sensor requirements.
- 4
Validate camera compatibility, power, cabling, calibration and installation environment.
Configuration boundary
The current record lists four-channel recording but does not define the physical AHD/IPC connector mix. DMS, ADAS, BSD, CMS, mobile connectivity and external sensors are configuration-dependent and must not be assumed as standard.
Buyer questions
4CH Mobile DVR FAQ
How are the recording channels arranged?
4-channel recording; the current record does not specify the connector mix, so confirm AHD/IPC allocation.
What recording specifications are listed?
The current attributes list 1920×1080 video input and H.264/H.265 encoding. Confirm the simultaneous resolution, frame rate and bitrate supported across the selected camera count.
What storage is currently listed?
The current attributes list 512GB SD-card storage. Actual retention depends on active channels, resolution, frame rate, bitrate and recording policy.
Does it support remote fleet monitoring?
Supported configurations list GPS/Beidou, 4G or Wi-Fi, app/web access, live or recorded video workflows, alerts and IP voice intercom. Confirm network bands, SIM policy and platform licensing.
Are DMS, ADAS and BSD included?
They are described as optional integrations. Confirm the algorithm package, compatible cameras, licenses and available computing capacity for the quoted system.
What information is needed for a quotation?
Provide vehicle type, camera positions, required channel mix, recording retention, mobile-network region, platform features, AI functions, sensor interfaces and fleet quantity.
Build a verifiable configuration
Share your camera map and retention target
AlwayCare can review channel allocation, storage, connectivity, CMS and optional AI requirements for the actual vehicle.
